Rear Door Window Belt Outer Sealing Strip Replacement

Rear Door Window Belt Outer Sealing Strip Replacement

Removal Procedure





1. Position the rear window all the way down.
2. Remove the applique. Refer to Rear Door Frame Applique Replacement () .

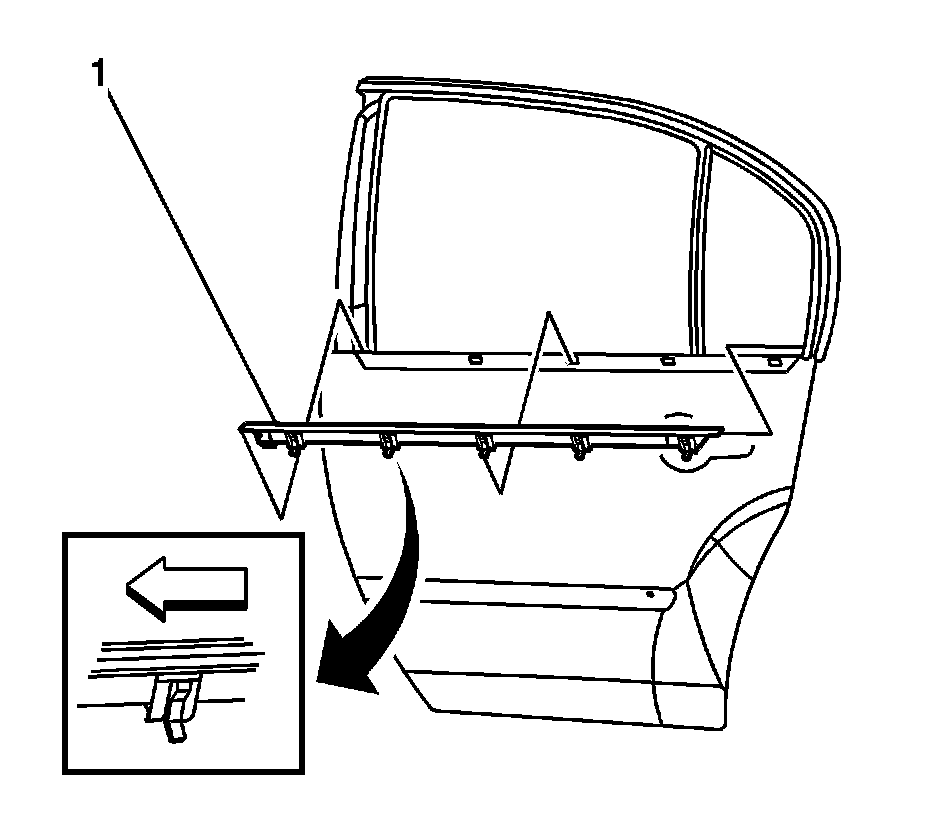

3. Remove the outer belt sealing strip (1).
4. Pull the outer belt sealing strip from the rear door pinch-weld flange.



Installation Procedure





1. Position the outer belt sealing strip (1) to the rear door pinch-weld flange.
2. Install the sealing strip to the pinch-weld flange, pressing into place until full seated.
3. Install the applique. Refer to Rear Door Frame Applique Replacement () .
