Front Door Window Regulator: Service and Repair

Front Side Door Window Regulator Replacement

Removal Procedure

1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) .
2. Remove the water deflector. Refer to Front Side Door Water Deflector Replacement (Service and Repair) .
3. Disconnect the window from the window regulator carrier plate. Refer to Front Side Door Window Replacement (Service and Repair) .




4. Position the window in the full up position and tape it to the window frame.
5. Disconnect the electrical connector from the window regulator motor.
6. Remove the inside handle. Refer to Front Side Door Inside Handle Replacement (Service and Repair) .
7. Loosen the bolts on the window regulator rail.

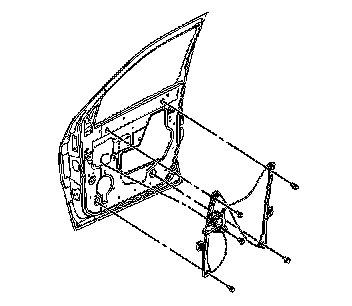

8. Remove the front window regulator, lifting up and out from the key slots on the door inner panel and through the rear access hole.



Installation Procedure





1. Install the front window regulator bolts half way into the rear window regulator motor and the rail.
2. Position the front window regulator rail through the rear access hole first.
3. Position the front window regulator motor through the rear access hole.

Notice: Refer to Fastener Notice (Fastener Notice) .

4. Install the front window regulator into the key slots. Attach the regulator to the motor and the rail. Secure the regulator with bolts.

Tighten the bolts to 11N.m (97 lb in).

5. Remove the tape and position the front window to the regulator carrier plate.
6. Connect the window to the regulator carrier plate. Refer to Front Side Door Window Replacement (Service and Repair) .
7. Connect the electrical connector to the front window regulator motor.
8. Install the inside handle. Refer to Front Side Door Inside Handle Replacement (Service and Repair) .
9. Install the water deflector. Refer to Front Side Door Water Deflector Replacement (Service and Repair) .
10. Install the trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) .
