Windshield Washer Hose Replacement

Windshield Washer Hose Replacement

Removal Procedure





1. Open the hood.
2. Disconnect the washer solvent container hose from the windshield washer hose.
3. Disconnect the clip retaining the windshield washer hose to the battery tray.




4. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Service and Repair) .

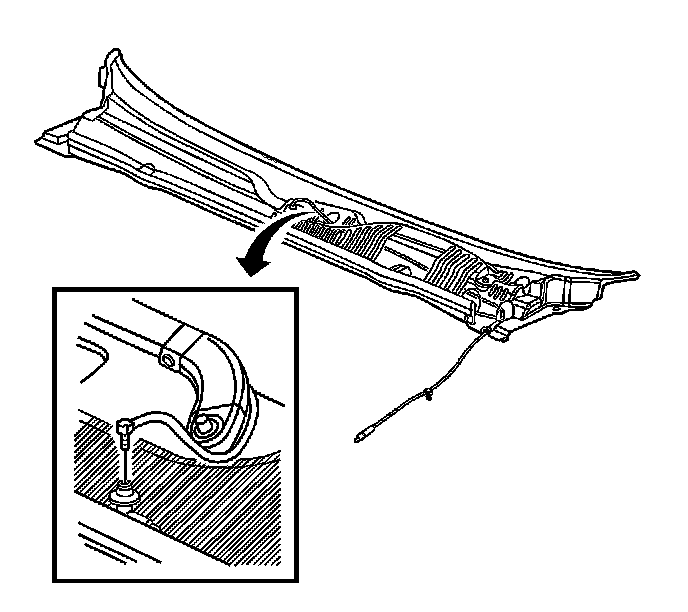

5. Disconnect the windshield washer hose grommets from the air inlet grille panel.
6. Remove the windshield washer hose from the air inlet grille panel.



Installation Procedure





1. Install the windshield washer hose grommets to the air inlet grille panel.
2. Install the windshield washer hose to the air inlet grille panel. Ensure that the hose is seated into the retaining features on the air inlet grille panel.




3. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Service and Repair) .




4. Connect the windshield washer hose to the washer solvent container hose.
5. Connect the clip retaining the windshield washer hose to the battery tray.
6. Close the hood.
7. Inspect the washers for proper operation.
