Brake Pressure Modulator Valve Bracket Replacement

Brake Pressure Modulator Valve Bracket Replacement (With RPO LAT) (2.4L)

Removal Procedure





1. Turn the ignition switch to the OFF position.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
3. Remove the left front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
4. Remove the brake pressure modulator valve (BPMV) bracket nuts (1).




5. Carefully position aside the BPMV and bracket assembly to access the BPMV bolts.
Support the BPMV assembly with heavy mechanics wire or equivalent.

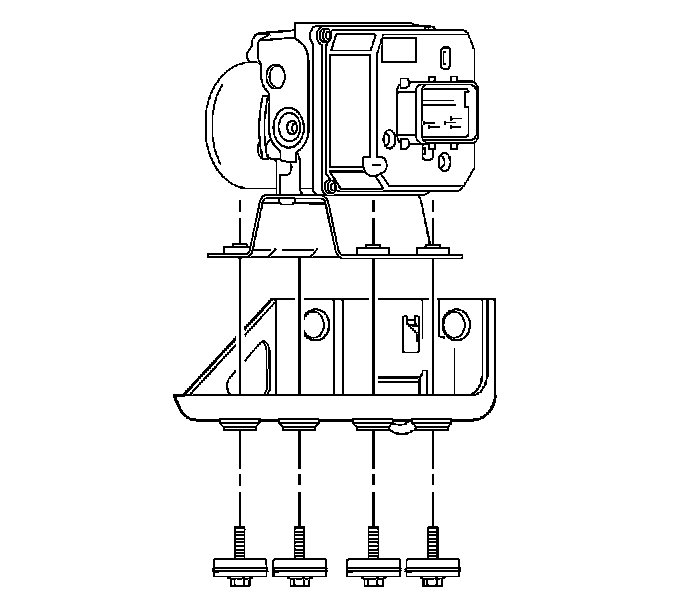

6. Remove the 4 BPMV bolts.
7. Remove the BPMV bracket.



Installation Procedure


Notice: Refer to Fastener Notice .





1. Carefully position the BPMV bracket to the wheel house.
2. Install the BPMV bracket nuts (1).

Tighten the bolt to 10 N.m (89 lb in).

3. Install the left front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .




4. Install the 4 BPMV bolts.

Tighten the bolt to 10 N.m (89 lb in).
