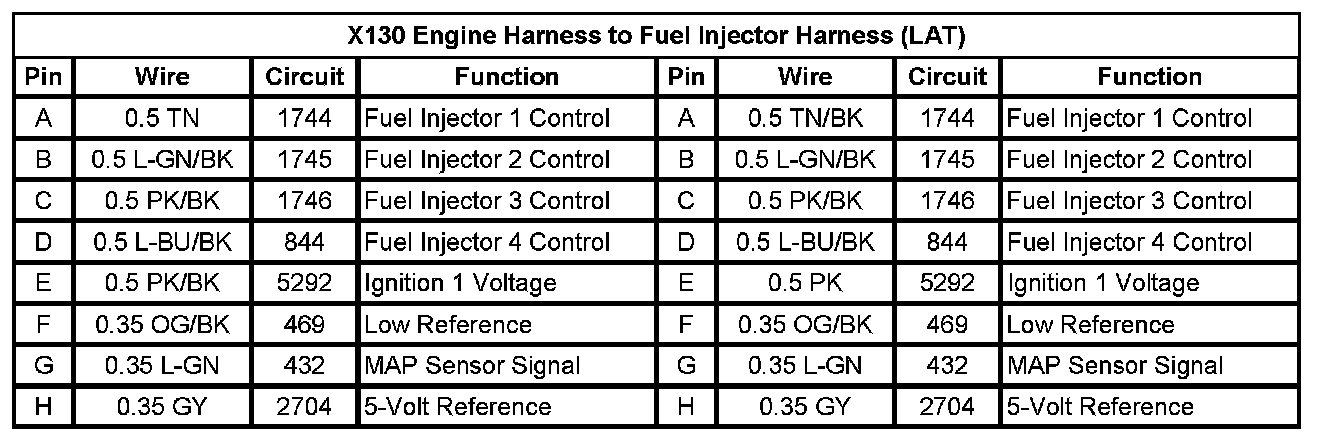

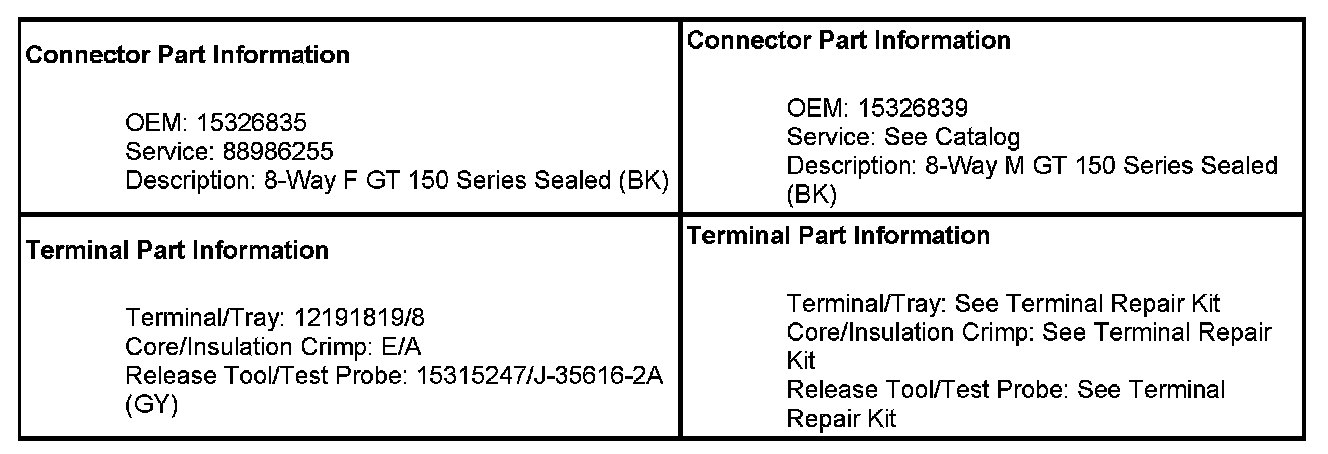

X130 Engine Harness to Fuel Injector Harness (LAT)
X130 Engine Harness to Fuel Injector Harness (LAT)

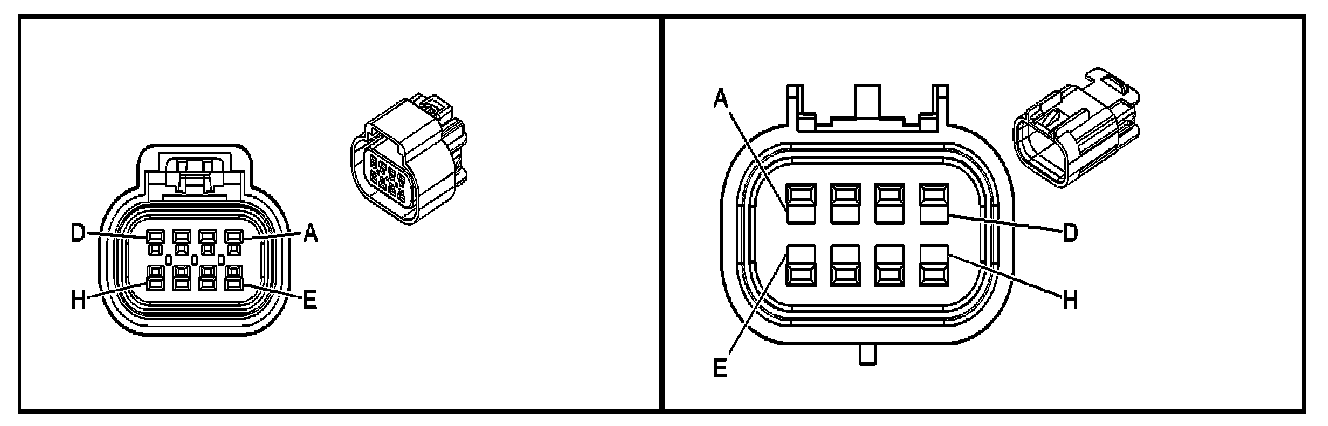

Inline Harness Connector End Views
X130 Engine Harness to Fuel Injector Harness (LAT)
