X420

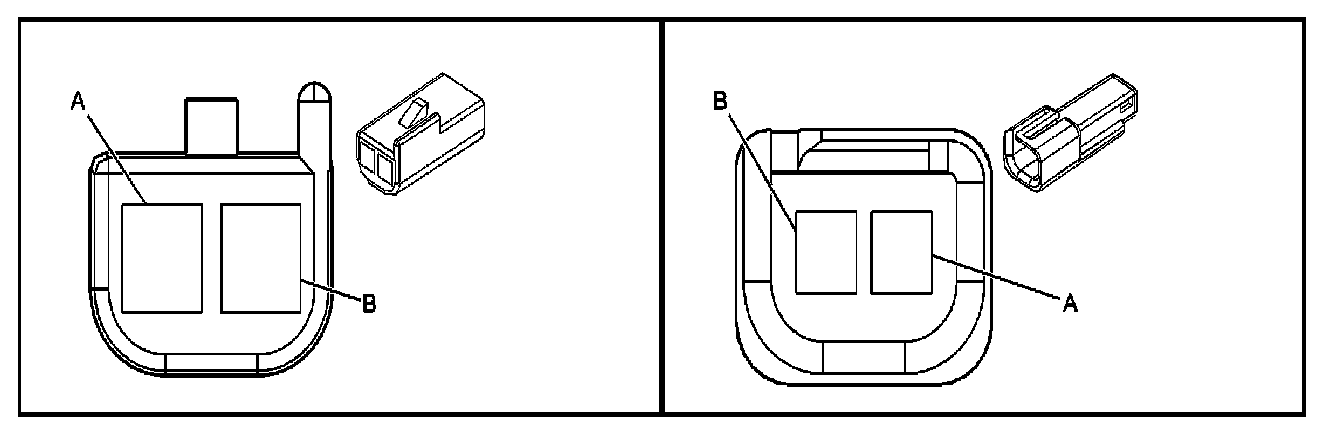

Inline Harness Connector End Views

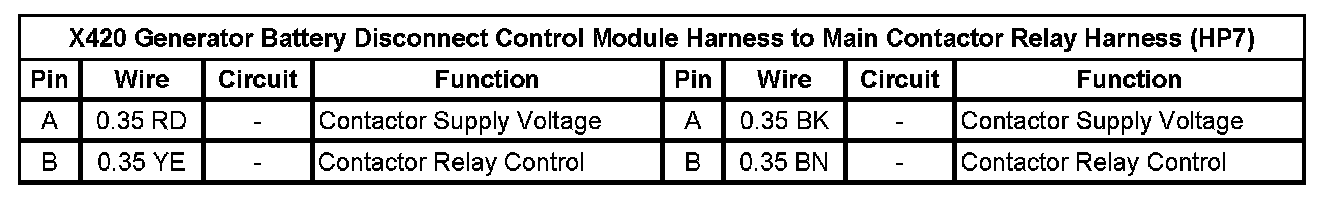

X420 Generator Battery Disconnect Control Module Harness to Main Contactor Relay Harness (HP7)
