Fluid Pump, A/T
>>
Transmission Pump (HP7)
Transmission Pump (HP7)

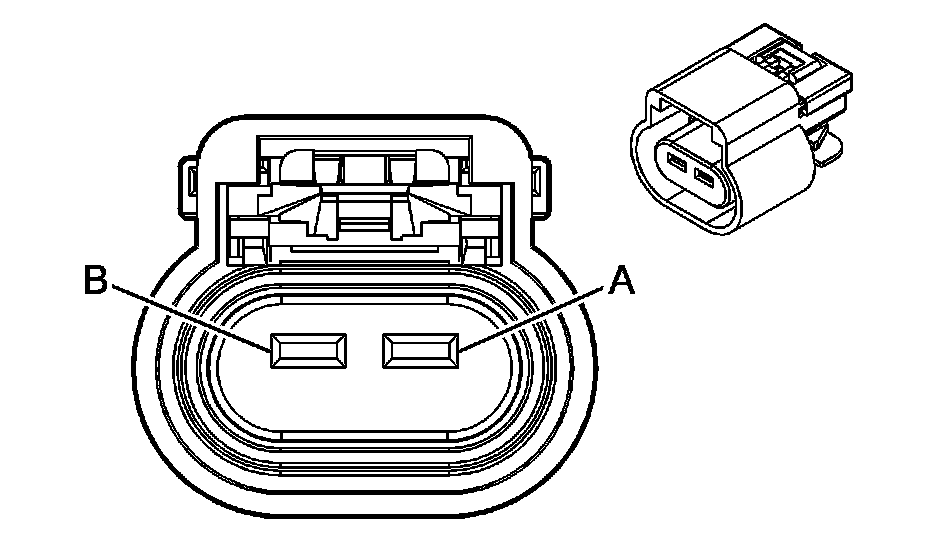

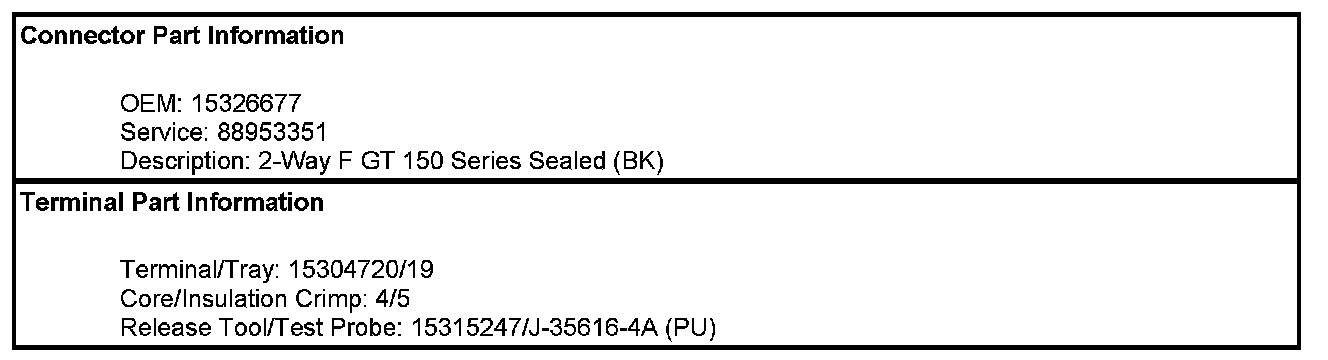

Component Connector End Views - Continued

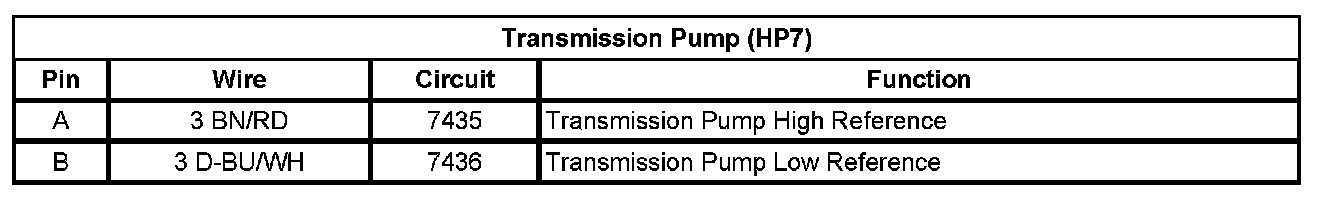

Transmission Pump (HP7)
