Pedal Positioning Module
Pedal Positioning Module

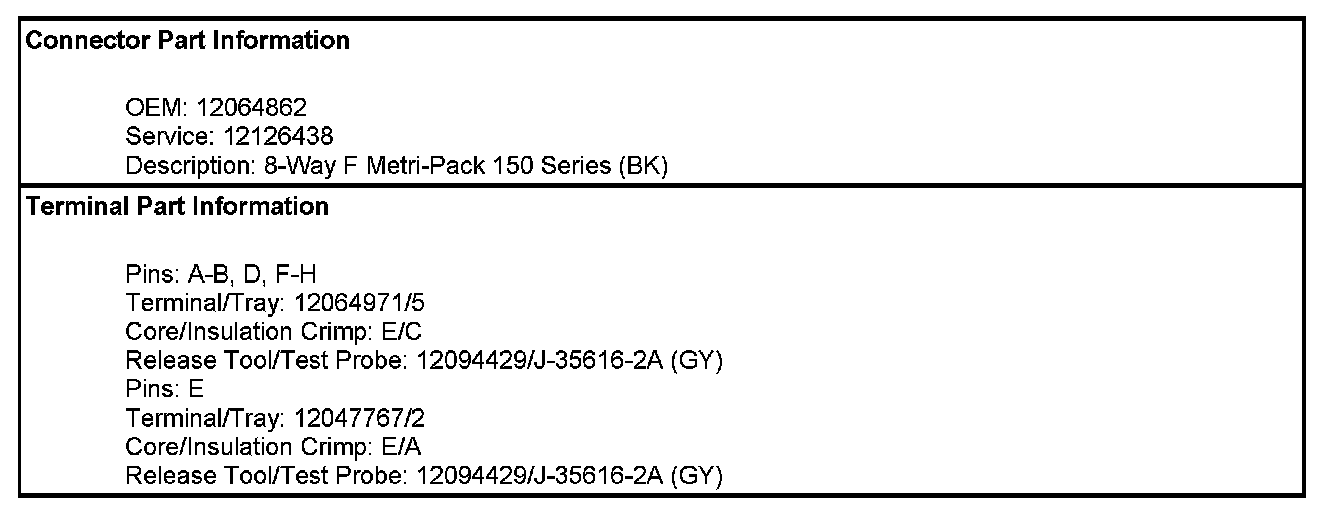

Component Connector End Views

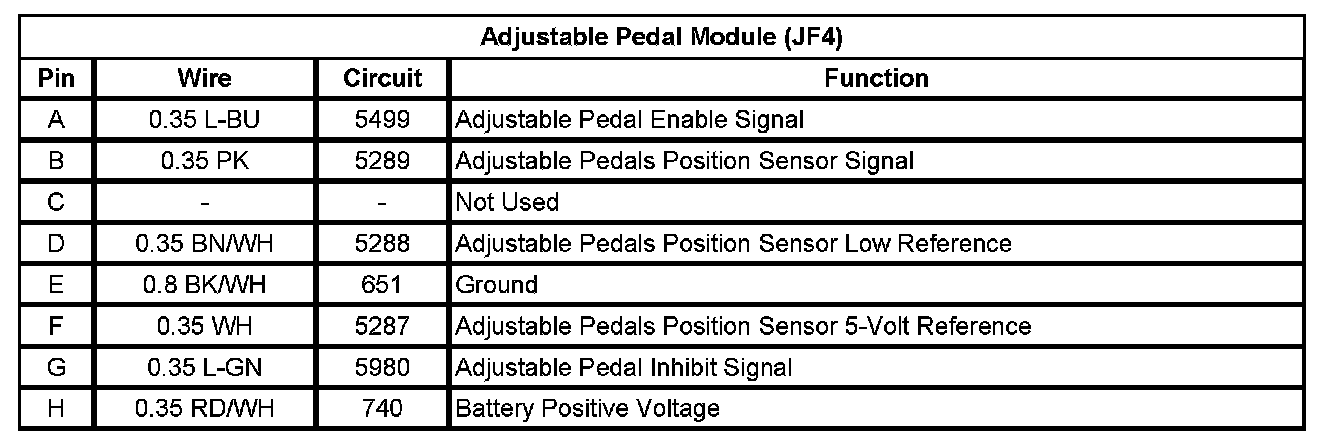

Adjustable Pedal Module (JF4)
