Shift Solenoid, A/T



Component Connector End Views

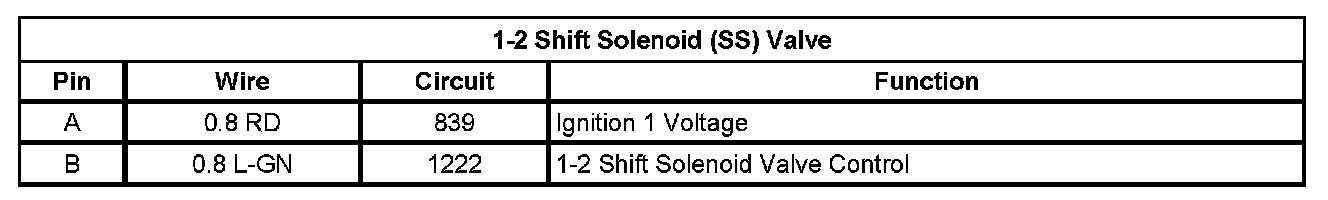

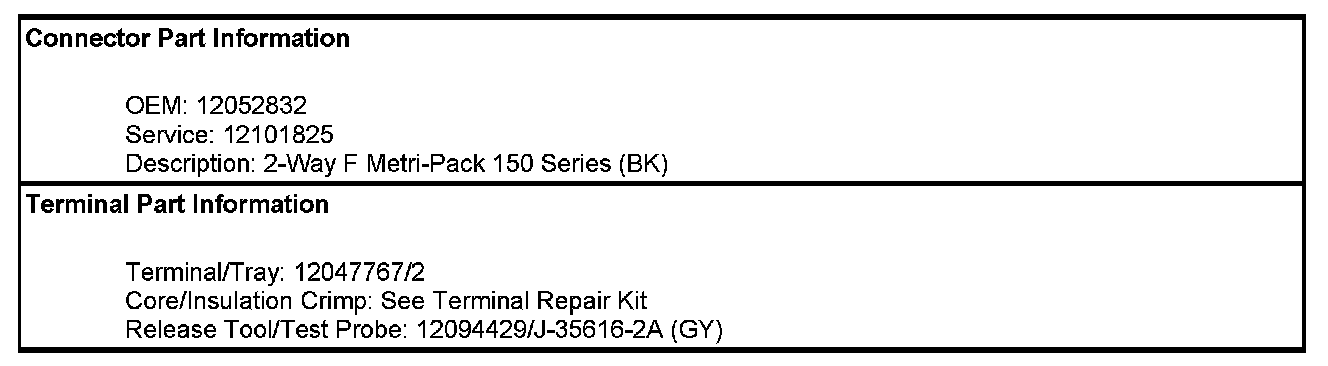

1-2 Shift Solenoid (SS) Valve

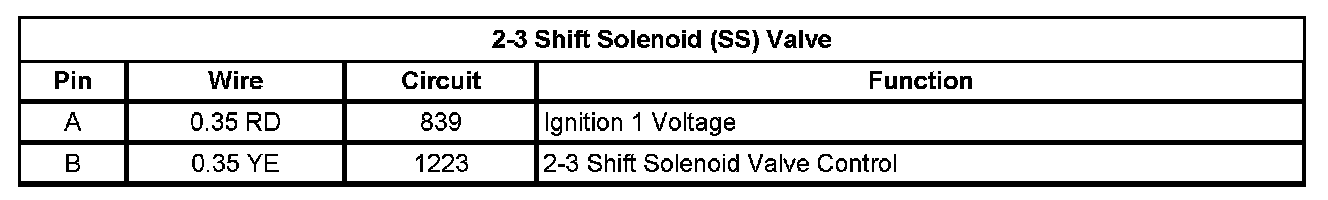

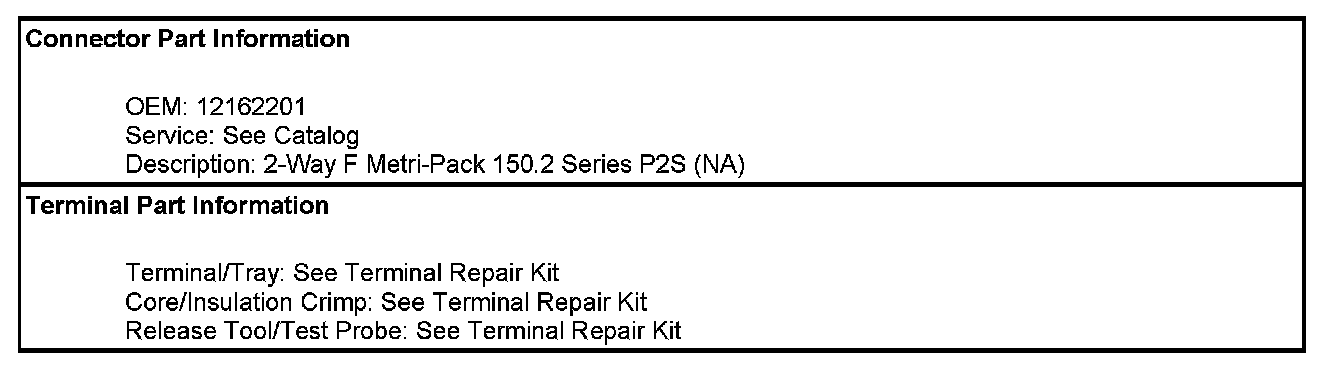

2-3 Shift Solenoid (SS) Valve

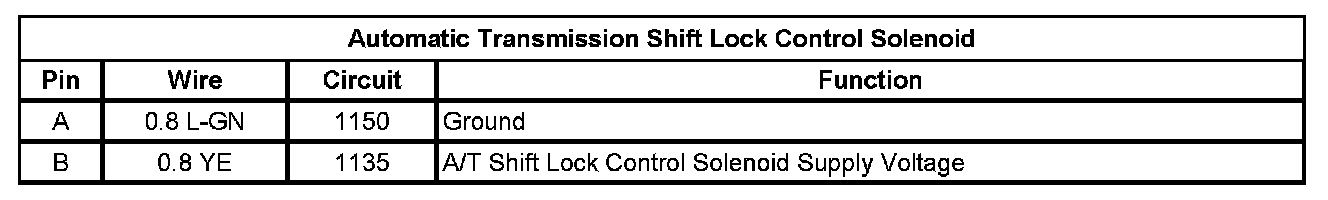

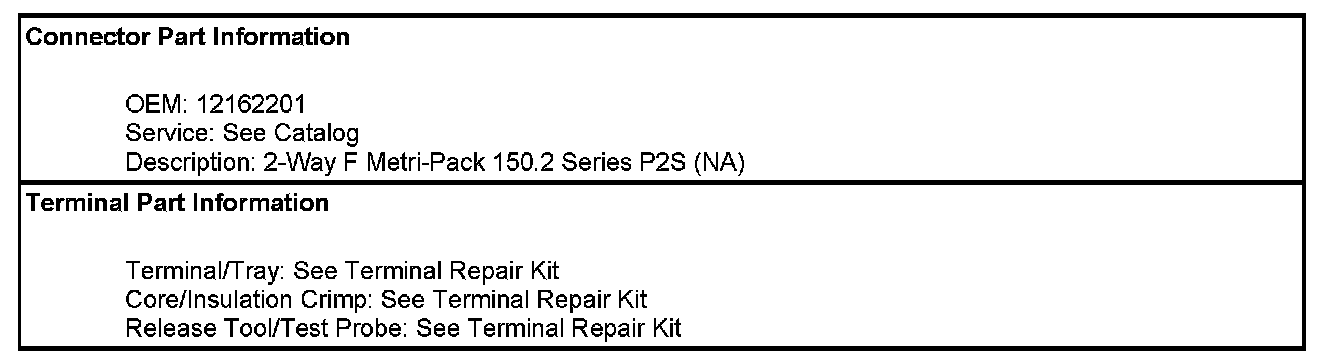

Automatic Transmission Shift Lock Control Solenoid

A/T Shift Lock Control Solenoid:
