Trunk / Liftgate Latch
Trunk / Liftgate Latch

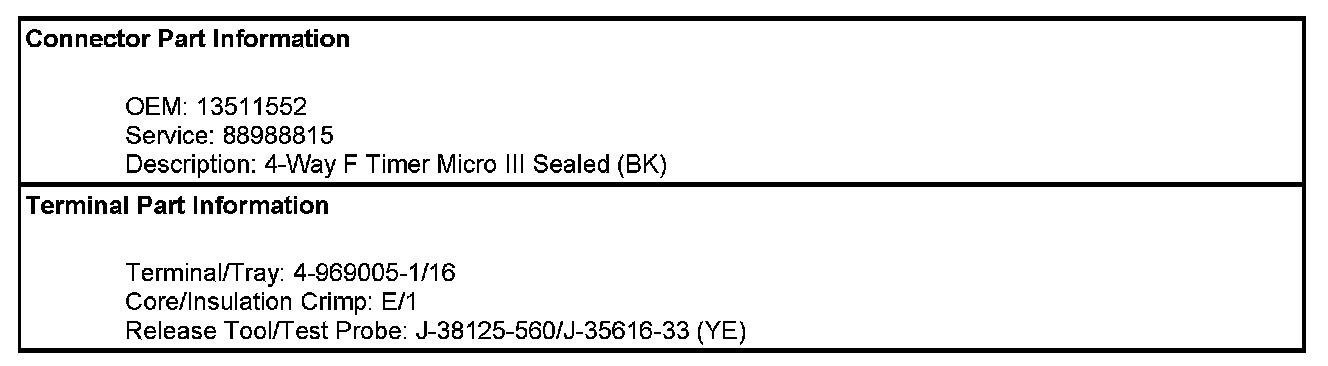

Component Connector End Views - Continued

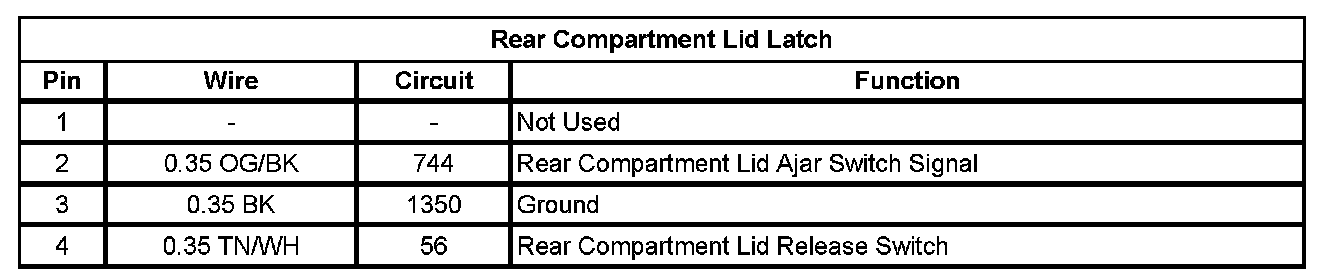

Rear Compartment Lid Latch
