System Diagram



Component Connector End Views - Continued

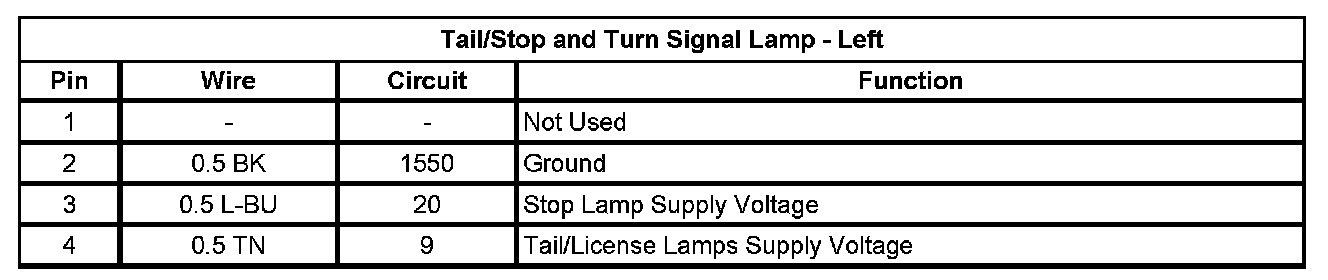

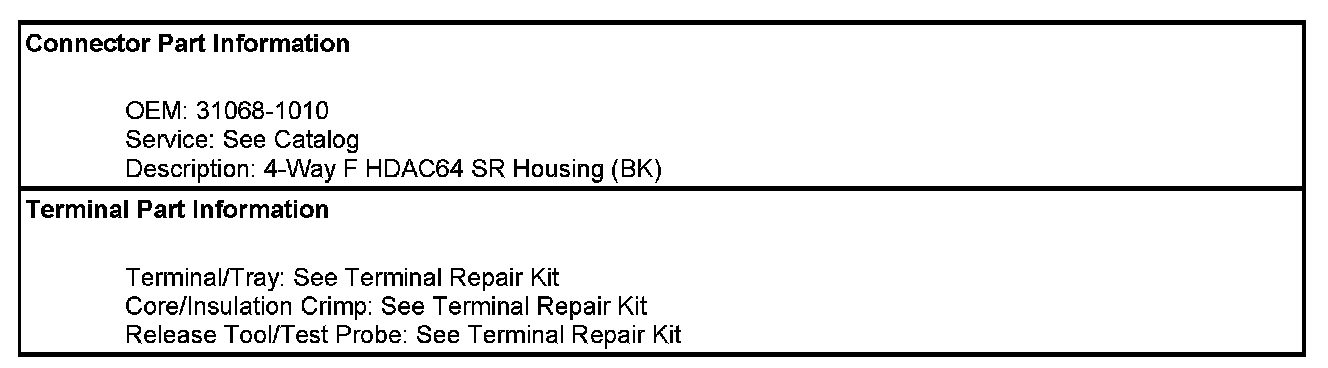

Tail/Stop and Turn Signal Lamp - Left

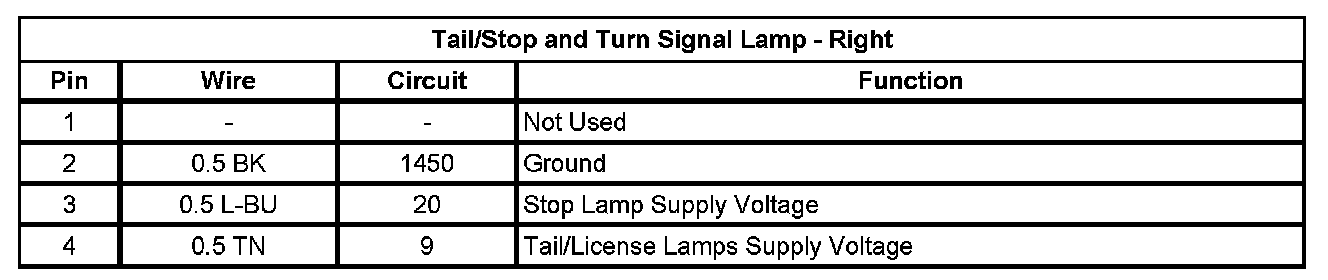

Tail/Stop and Turn Signal Lamp - Right
