Battery System, Hybrid Drive

Hybrid Energy Storage Schematics

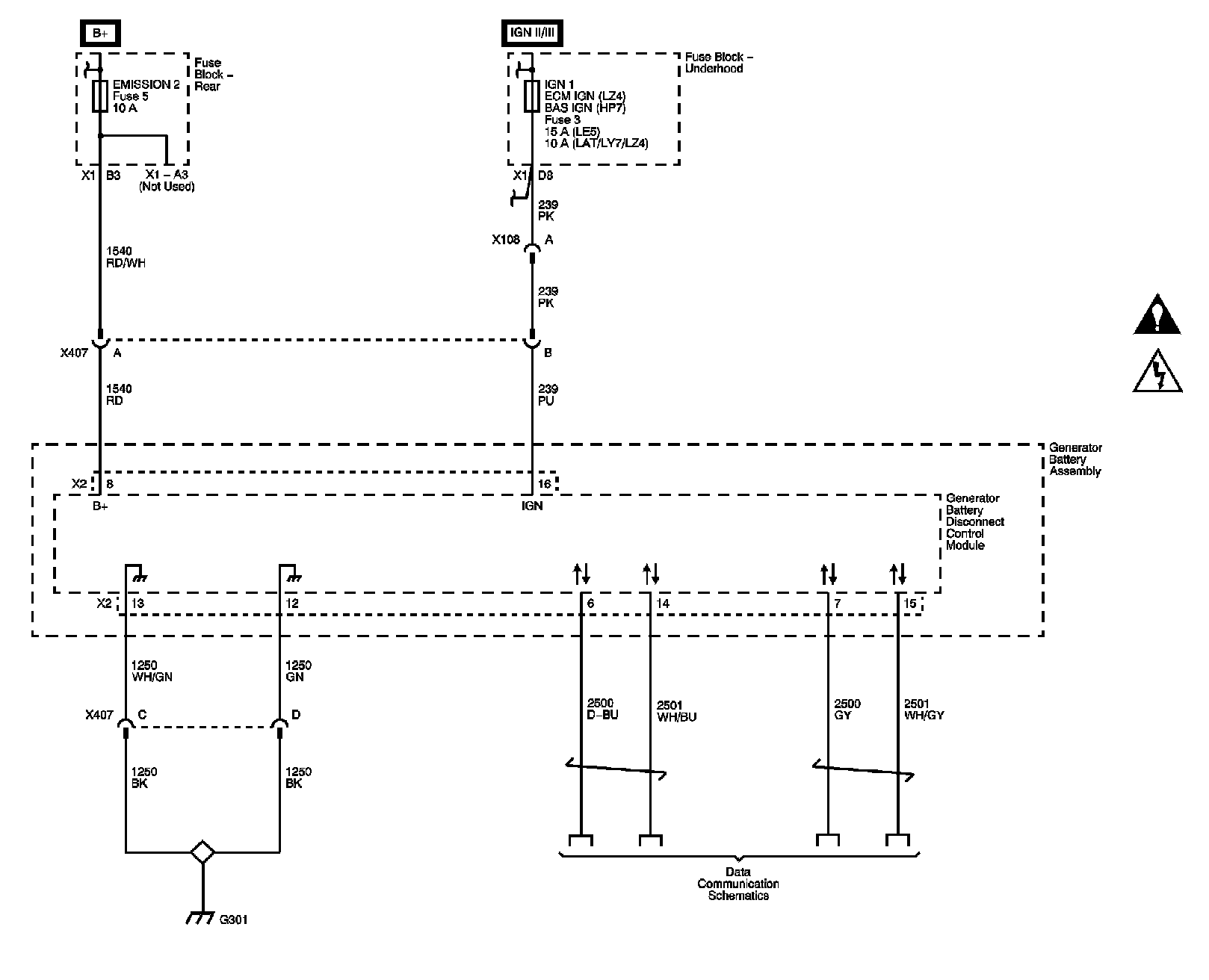

Power, Ground, and Serial Data

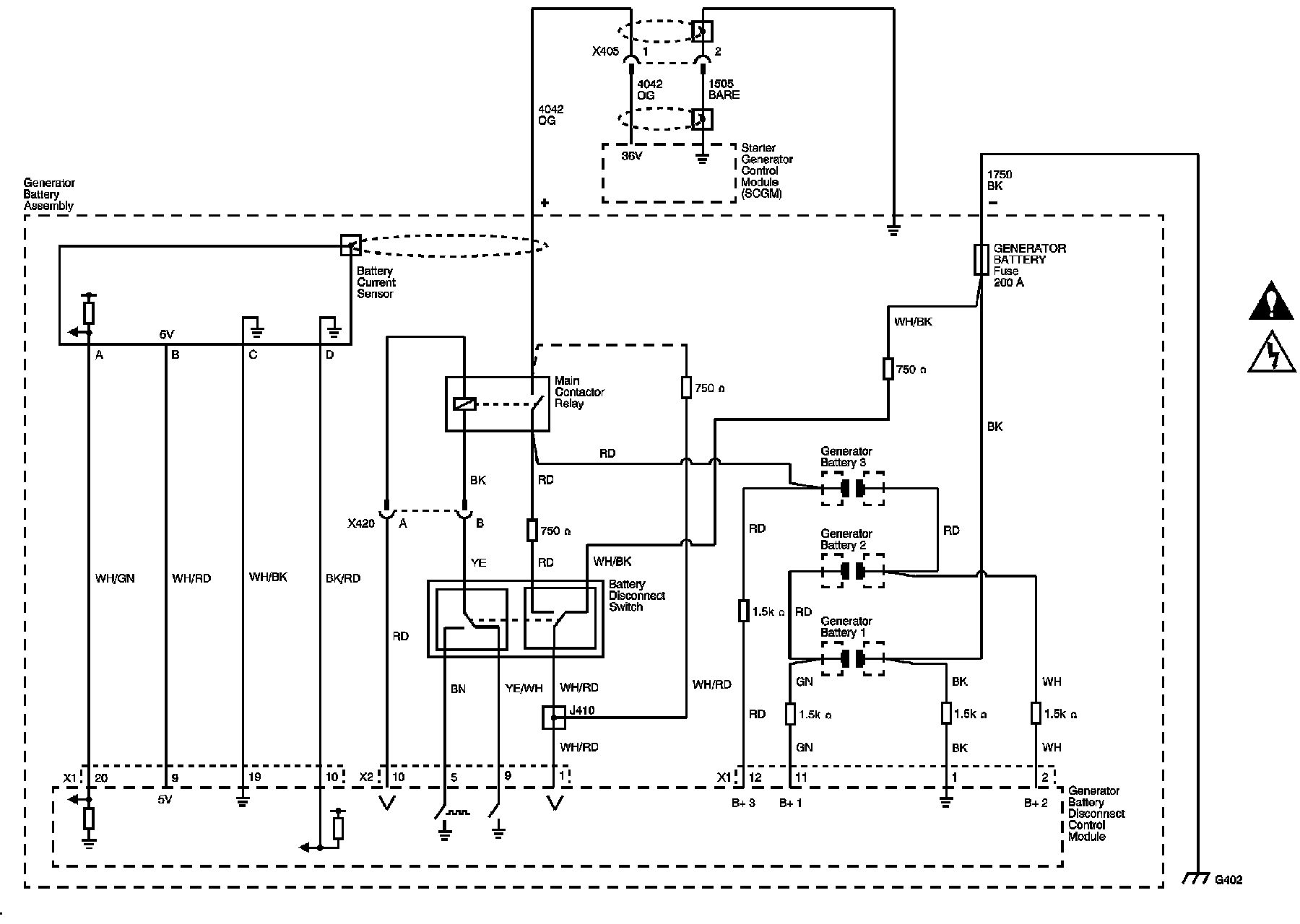

Batteries, Battery Current Sensor, Battery Disconnect Switch, and Main Contactor Relay






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
