Battery, Hybrid Drive: Service and Repair

Generator Battery Replacement

Removal Procedure

Important: If one battery requires replacement, the other batteries also are to be replaced.




1. Remove the generator battery temperature sensor wiring harness.

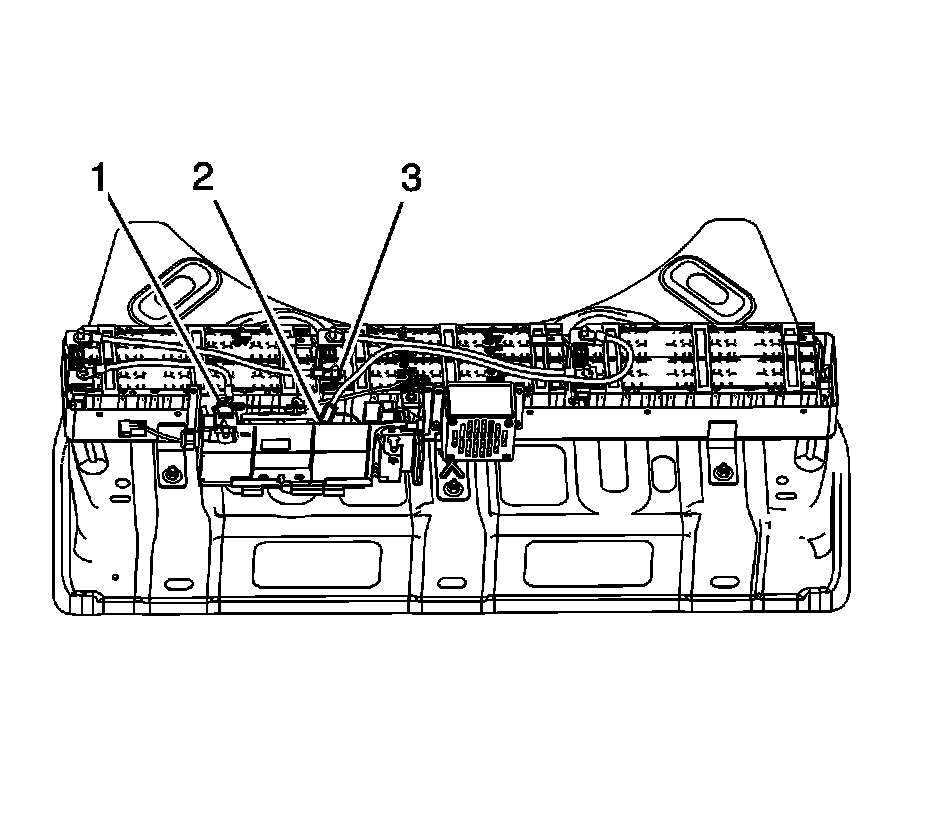

2. Remove the generator battery cable nuts from the battery cable terminals (1, 2, and 3).

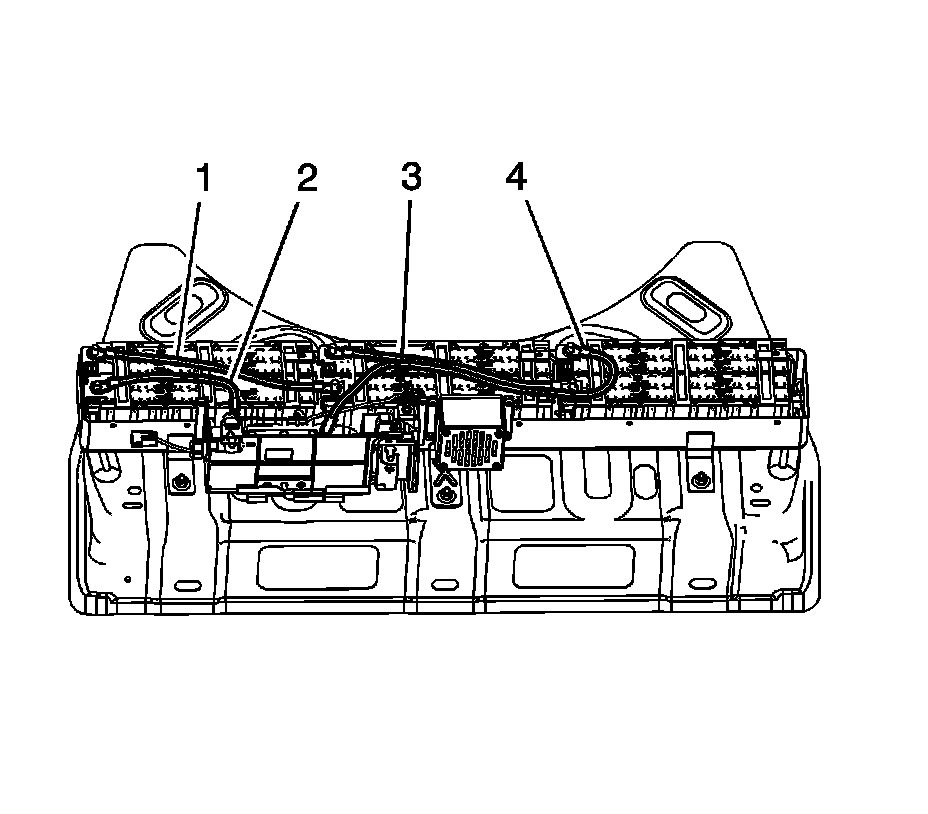

3. Remove the generator battery cables (1-4) from the batteries.




4. Remove the generator battery bolts.

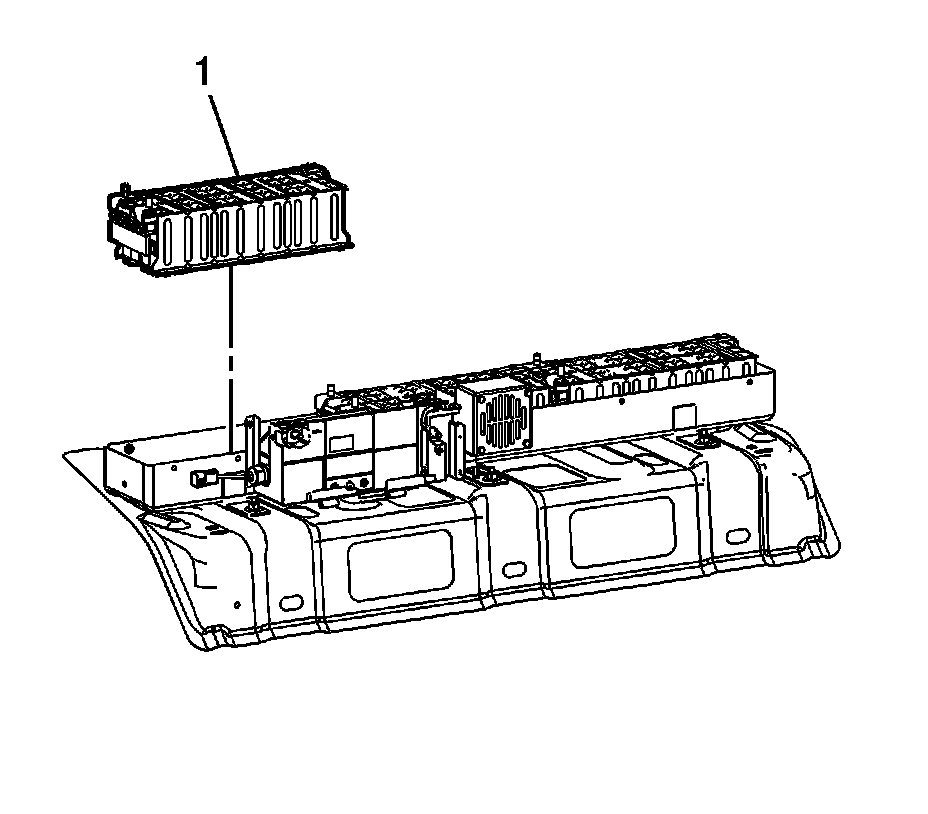

5. Remove the generator battery (1).




6. If required, remove the generator battery temperature sensor from the battery.

Installation Procedure




1. If required, install the generator battery temperature sensor to the battery.




2. Install the generator battery (1).

Notice: Refer to Fastener Notice.

3. Install the generator battery bolts.

Tighten the bolts to 10 N.m (89 lb in).




4. Install the generator battery cables (1-4) to the batteries.




5. Install the generator battery cable nuts to the battery cable terminals (1, 2, and 3).

Tighten the nuts to 8 N.m (71 lb in).

6. Install the generator battery temperature sensor wiring harness.
