A/Trans Auxiliary Fluid Pump Assembly

Disassembled Views

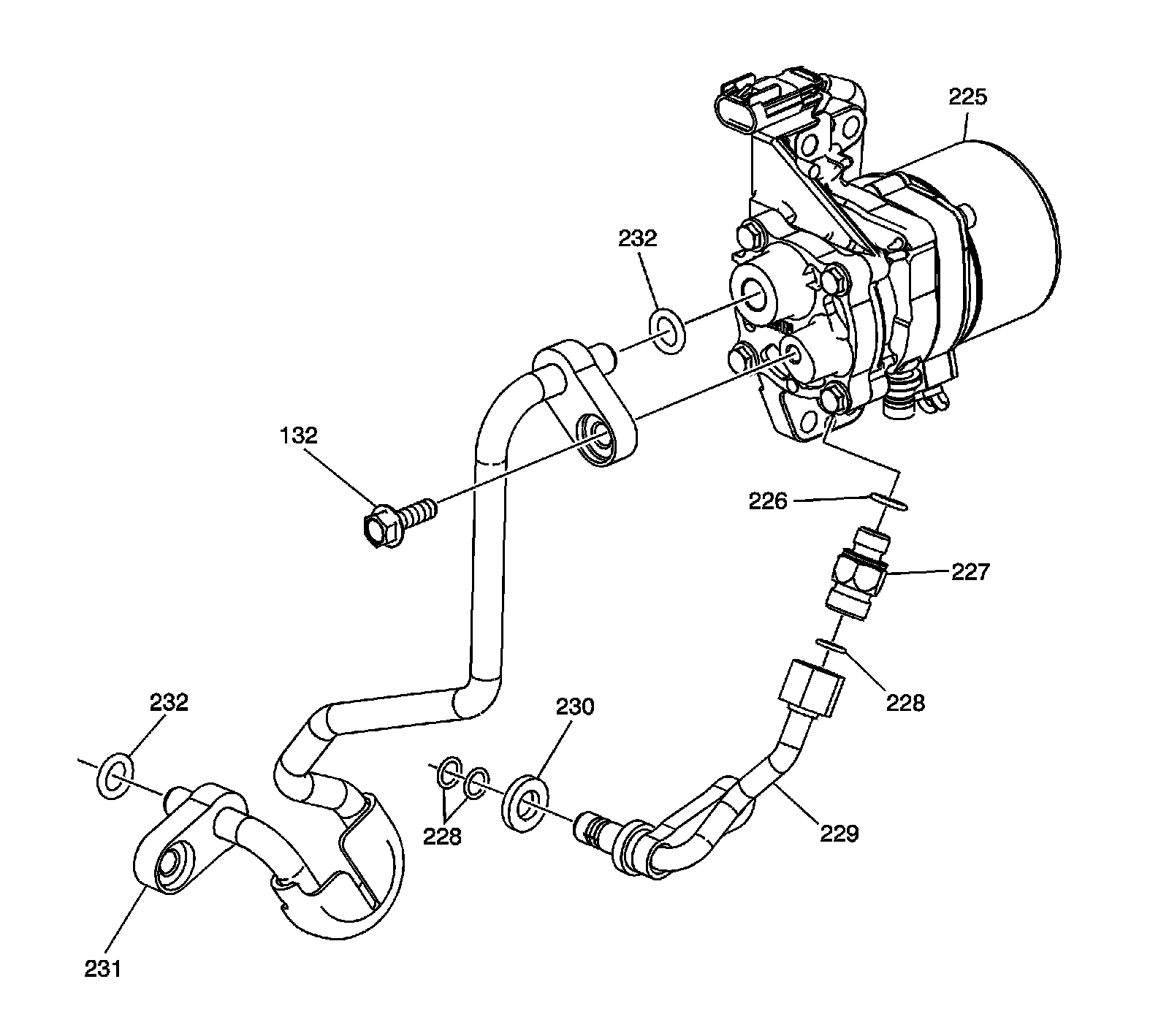

A/Trans Auxiliary Fluid Pump Assembly - L4-2.4L Hybrid

A/Trans Auxiliary Fluid Pump Assembly - L4 Hybrid:

132 - Bolt
225 - A/Trans Auxiliary Fluid Pump
226 - A/Trans Auxiliary Fluid Pump Check Valve Seal
227 - A/Trans Auxiliary Fluid Pump Check Valve
228 - A/Trans Auxiliary Fluid Pump Outlet Pipe Seal
229 - A/Trans Auxiliary Fluid Pump Outlet Pipe
230 - A/Trans Auxiliary Fluid Pump Outlet Pipe Spacer
231 - A/Trans Auxiliary Fluid Pump Inlet Pipe
232 - A/Trans Auxiliary Fluid Pump Inlet Pipe Seal
