3-5-Reverse and 4-5-6 Clutch Housing Disassemble



3-5-Reverse and 4-5-6 Clutch Housing Disassemble

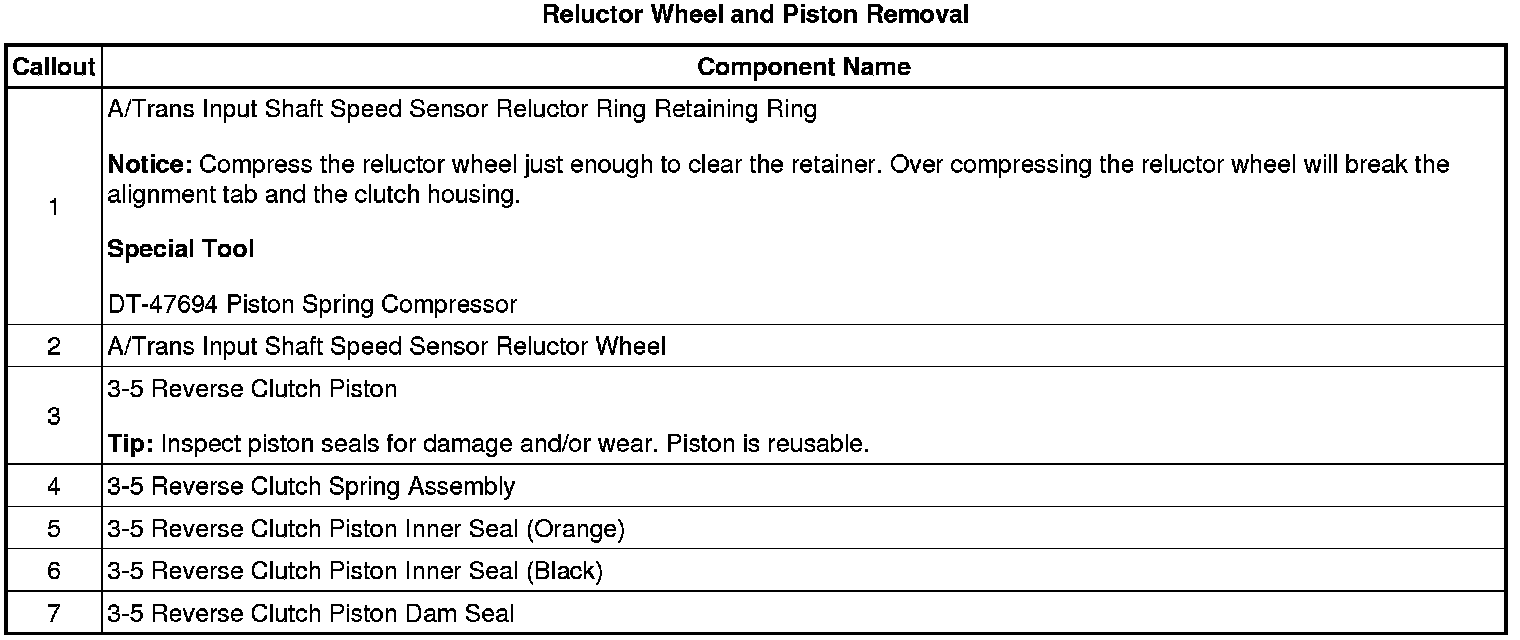

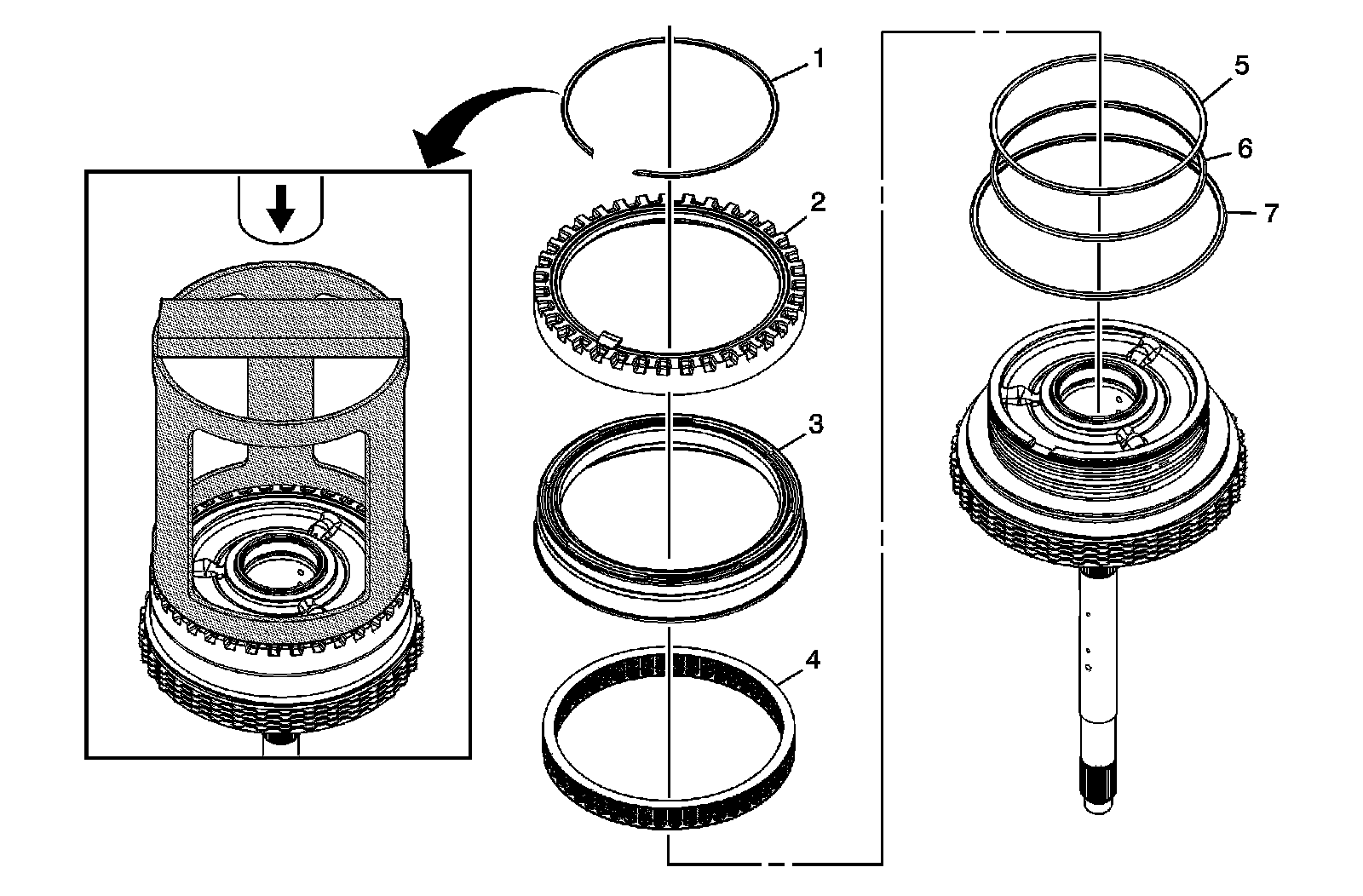

Reluctor Wheel and Piston Removal

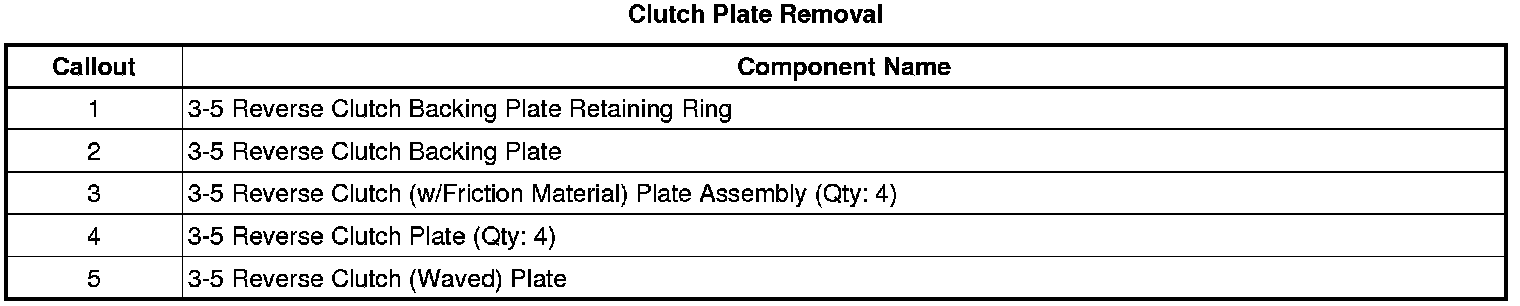

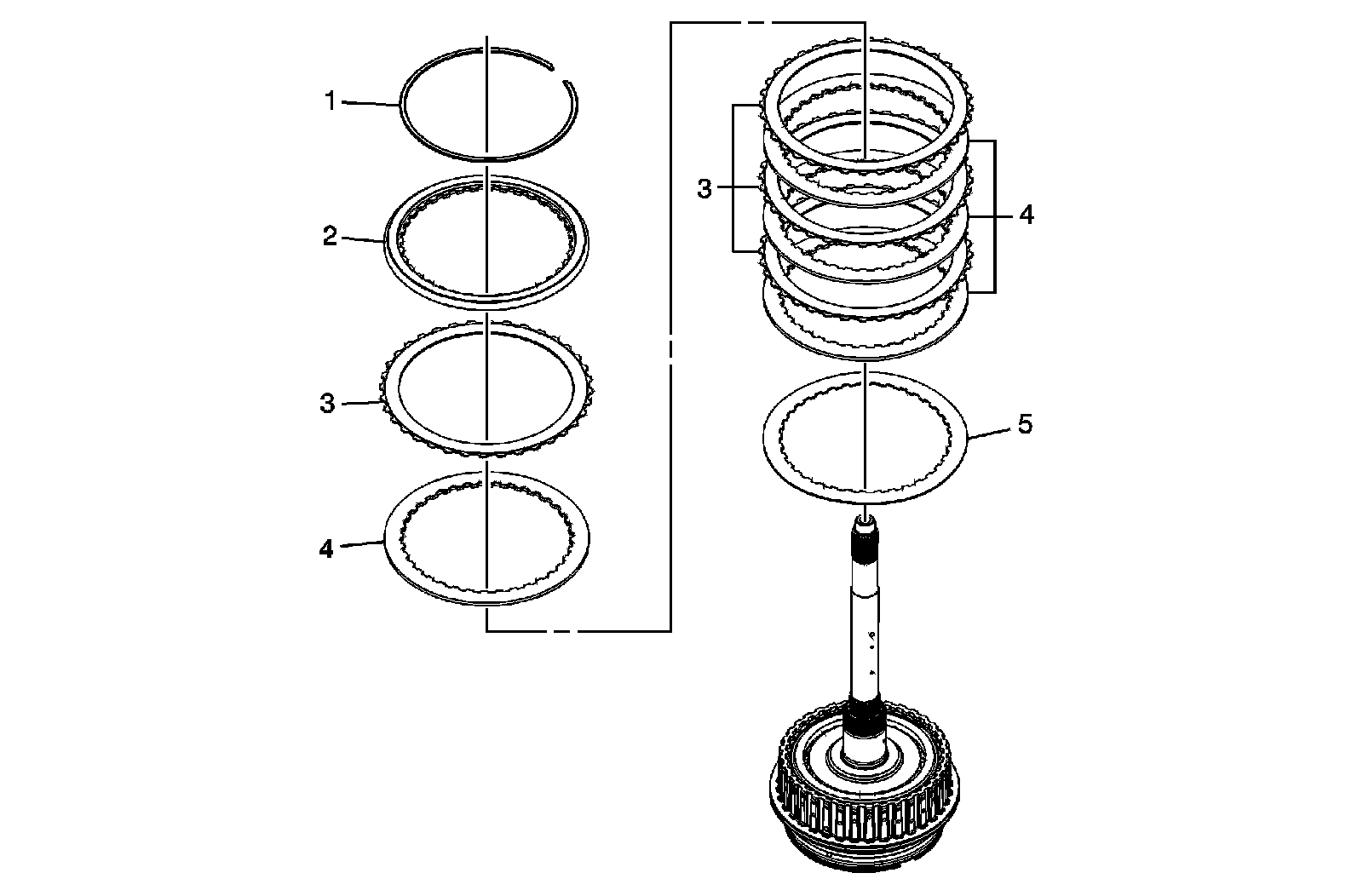

Clutch Plate Removal

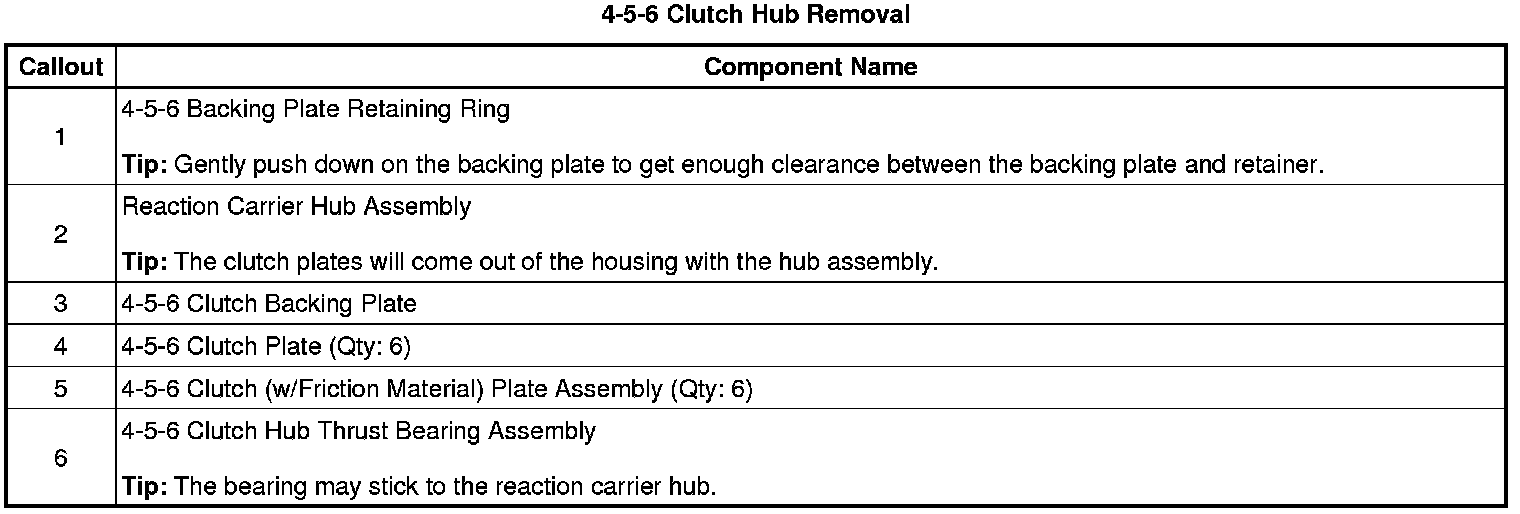

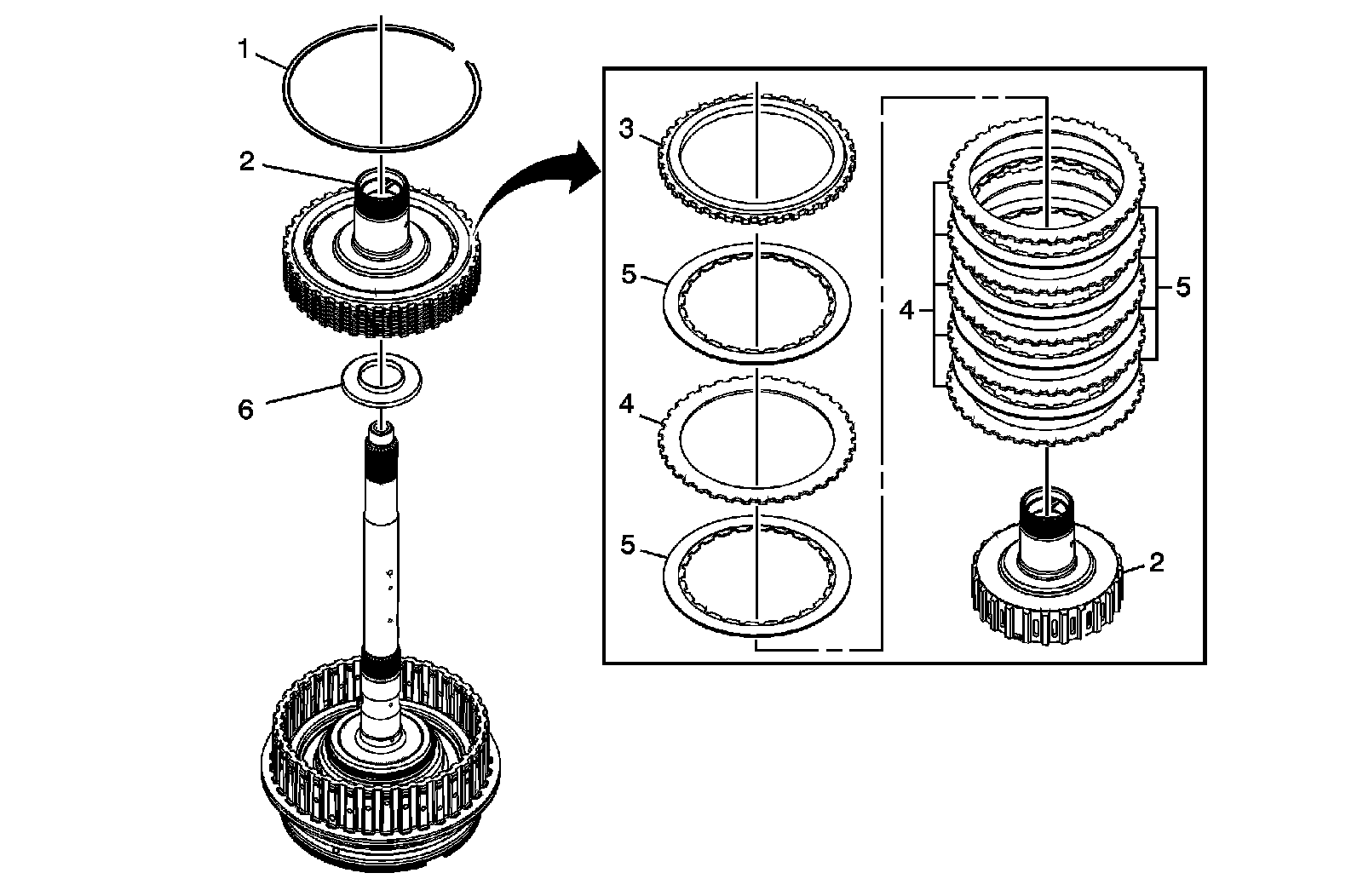

4-5-6 Clutch Hub Removal

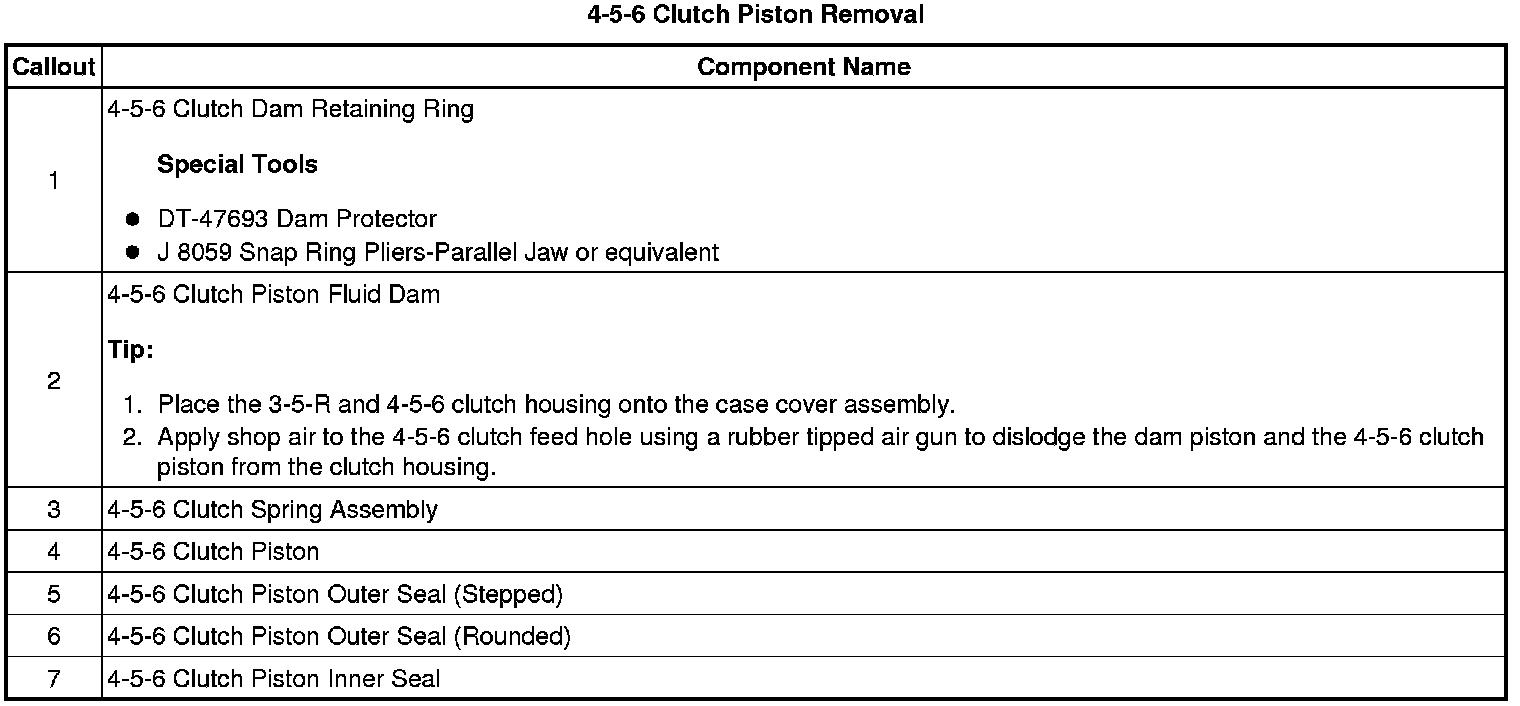

4-5-6 Clutch Piston Removal
