Transmission Rear Mount Replacement

Transmission Rear Mount Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the left tire and wheel. Refer to Tire and Wheel Removal and Installation (Service and Repair) .
3. Using a suitable jack stand, support the rear of the powertrain.

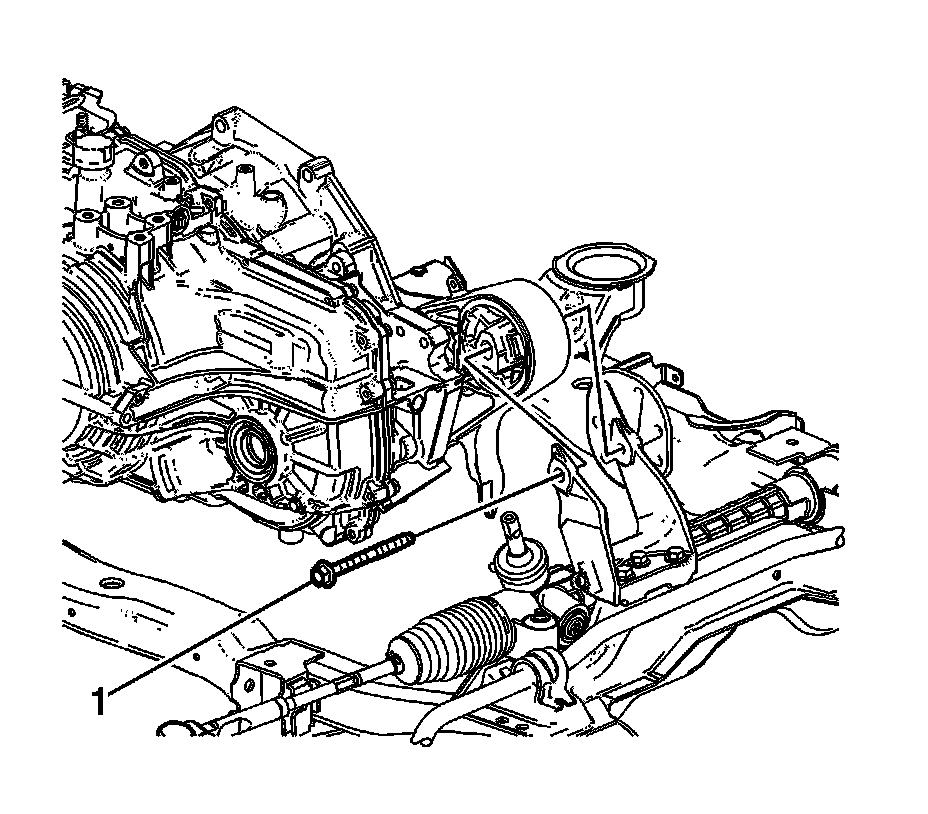

4. Remove the transmission mount to bracket through bolt (1).




5. Remove the transaxle brace bolts (1, 3).
6. Remove the transaxle brace (2).

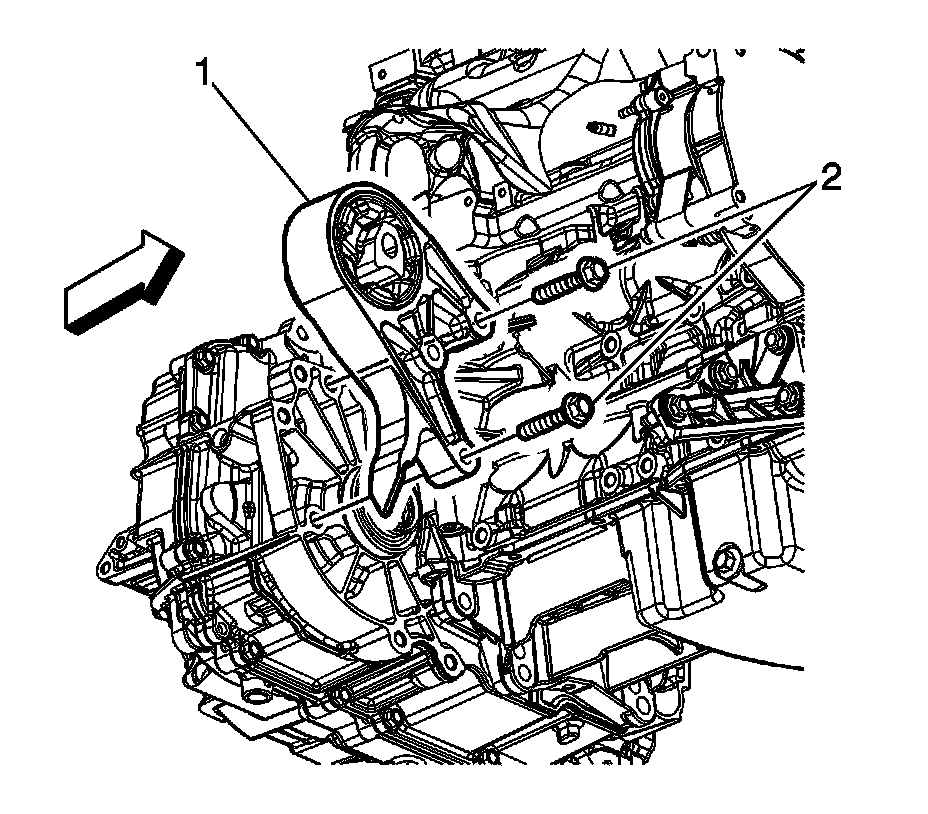

7. Remove the transmission mount to transmission bolts (2).
8. Remove the transmission mount (1).



Installation Procedure





1. Install the transmission mount (1).

Notice: Refer to Fastener Notice .

2. Install the transmission mount to transmission bolts (2).

Tighten the bolts to 90 N.m (66 lb ft).





3. Install the transaxle brace (2).
4. Install the transaxle brace bolt (1).

Tighten the bolt to 50 N.m (37 lb ft).

5. Install the transaxle brace bolt (3).

Tighten the bolt to 100 N.m (74 lb ft).





6. Install the transmission mount to bracket through bolt (1).

Tighten the bolt to 90 N.m (66 lb ft).

7. Remove the jack stand.
8. Install the left tire and wheel. Refer to Tire and Wheel Removal and Installation (Service and Repair) .
9. Lower the vehicle.
