Pedal Positioning Motor: Service and Repair

Brake and Accelerator Pedal Adjuster Actuator Motor Replacement

Removal Procedure

1. Remove the adjustable accelerator pedal bracket assembly from the vehicle.

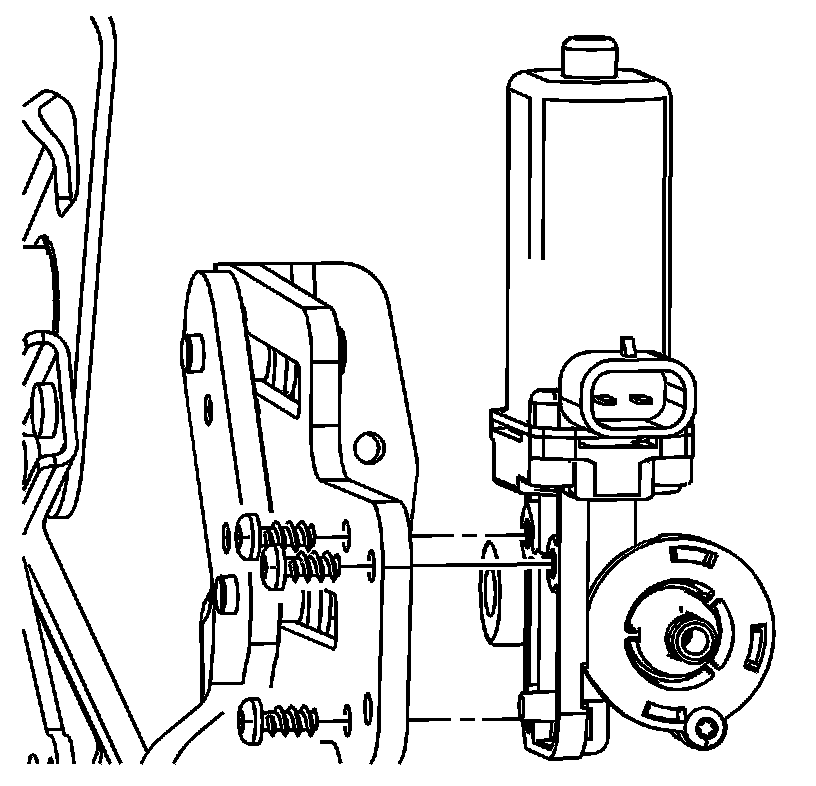

2. Remove the 3 motor assembly screws and remove the motor assembly from the adjustable accelerator bracket.

Installation Procedure




1. Install the motor assembly to the adjustable accelerator bracket assembly.

Notice: Refer to Fastener Notice.

2. Install the 3 screws to the adjustable accelerator bracket assembly.

Tighten the screws to 2 N.m (18 lb in).

Important: Ensure that the adjustable accelerator pedal and the adjustable brake pedal are synchronized in the full forward position.

3. Install the adjustable accelerator pedal bracket assembly to the vehicle.
