Sunroof / Moonroof Motor: Service and Repair

Sunroof Motor/Actuator Replacement

Removal Procedure

Important: Do not apply battery voltage to a new sunroof motor/actuator prior to installing the motor/actuator to the sunroof module assembly.

The sunroof window must be in the full closed position.

1. If possible, close the sunroof window before removing the sunroof motor/actuator.
2. It is only necessary to lower the headliner to gain access to the sunroof motor/actuator. Refer to Headlining Trim Panel Replacement (with DE1) Headlining Trim Panel Replacement (without DE1).

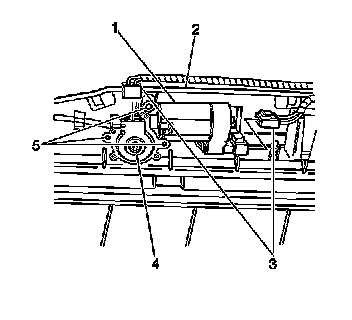

3. Disconnect the electrical connectors (3) from the sunroof motor/actuator (1).
4. Remove the bolts (5) attaching the sunroof motor/actuator (1) to the sunroof module assembly (2).
5. Remove the sunroof motor/actuator from the sunroof module assembly (2).

Installation Procedure




1. Manually move the sunroof window to the full closed position.
2. Install the sunroof motor/actuator (1) to the sunroof module assembly (2).

Notice: Refer to Fastener Notice.

3. Install the sunroof motor/actuator bolts (5) to the sunroof module assembly.

Tighten the bolts to 5 N.m (44 lb in).

4. Connect the electrical connectors (3) to the sunroof motor/actuator (1).

Important: Verify the sunroof operation before installing the headliner.

5. Check the sunroof window to the roof opening fit. Refer to Sunroof Window Height and Opening Fit Adjustment.
6. Install the headliner.
