X100 Engine Harness to Transmission Harness (LAT)
X100 Engine Harness to Transmission Harness (LAT)

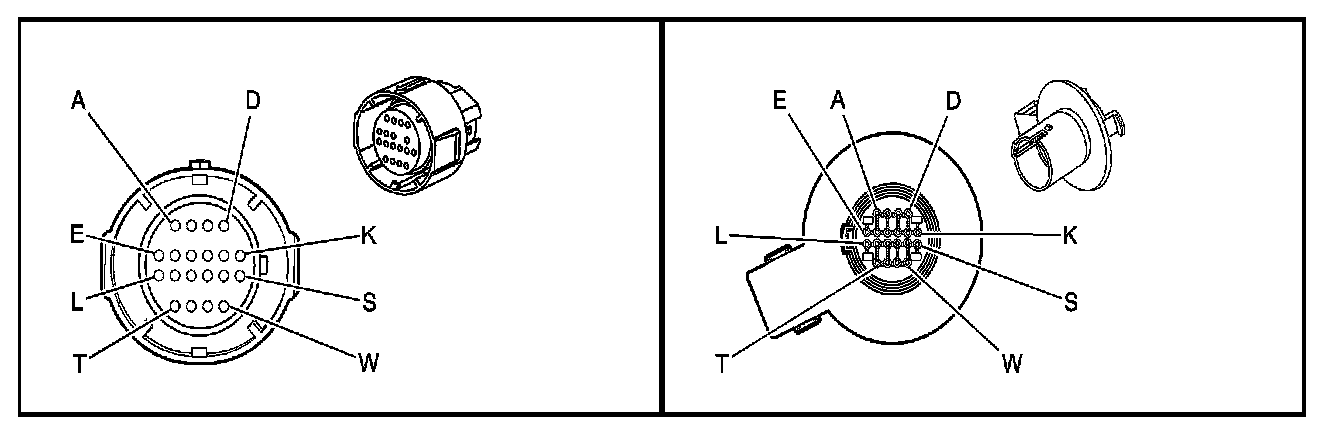

Inline Harness Connector End Views

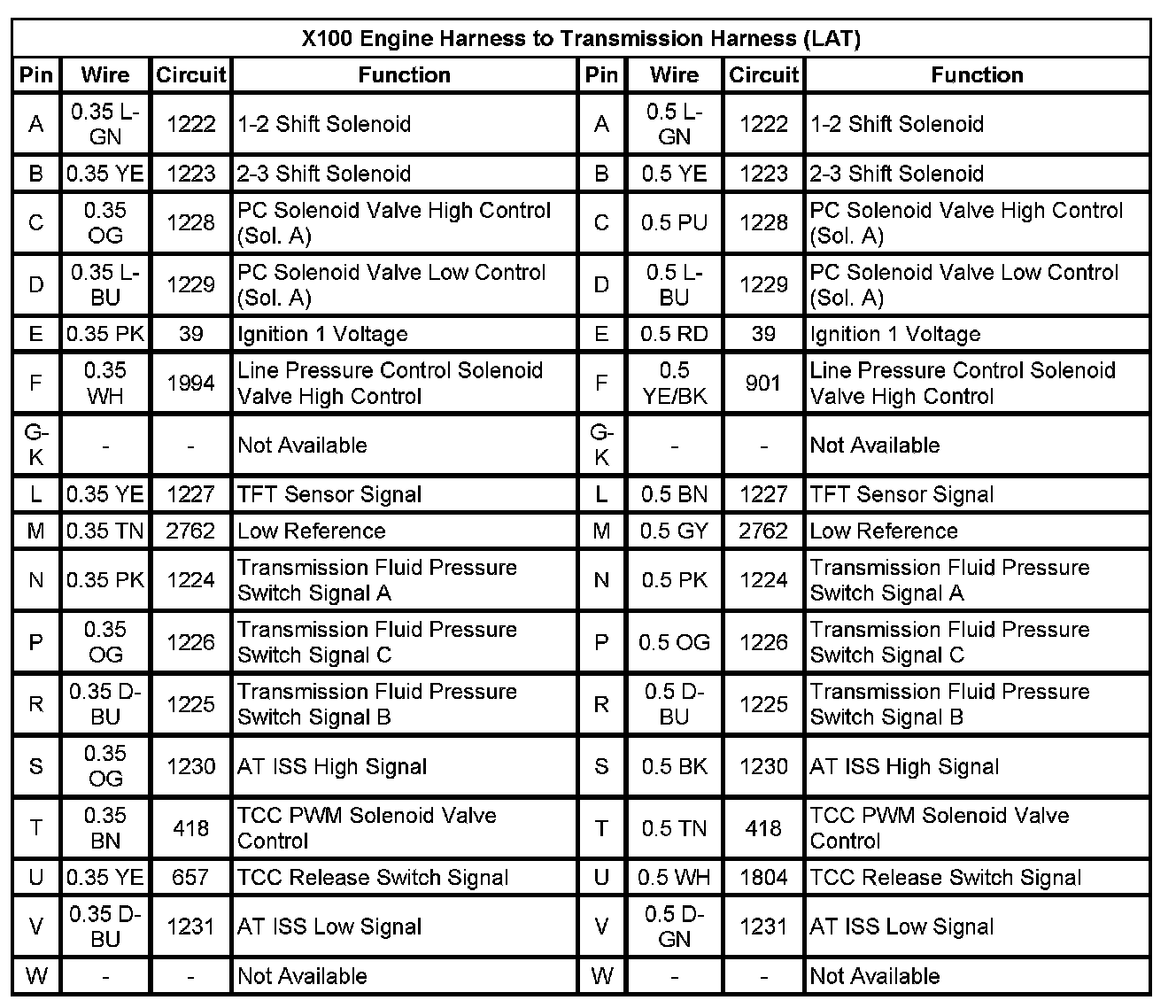

X100 Engine Harness to Transmission Harness (LAT)
