4T45-E Automatic Transaxle

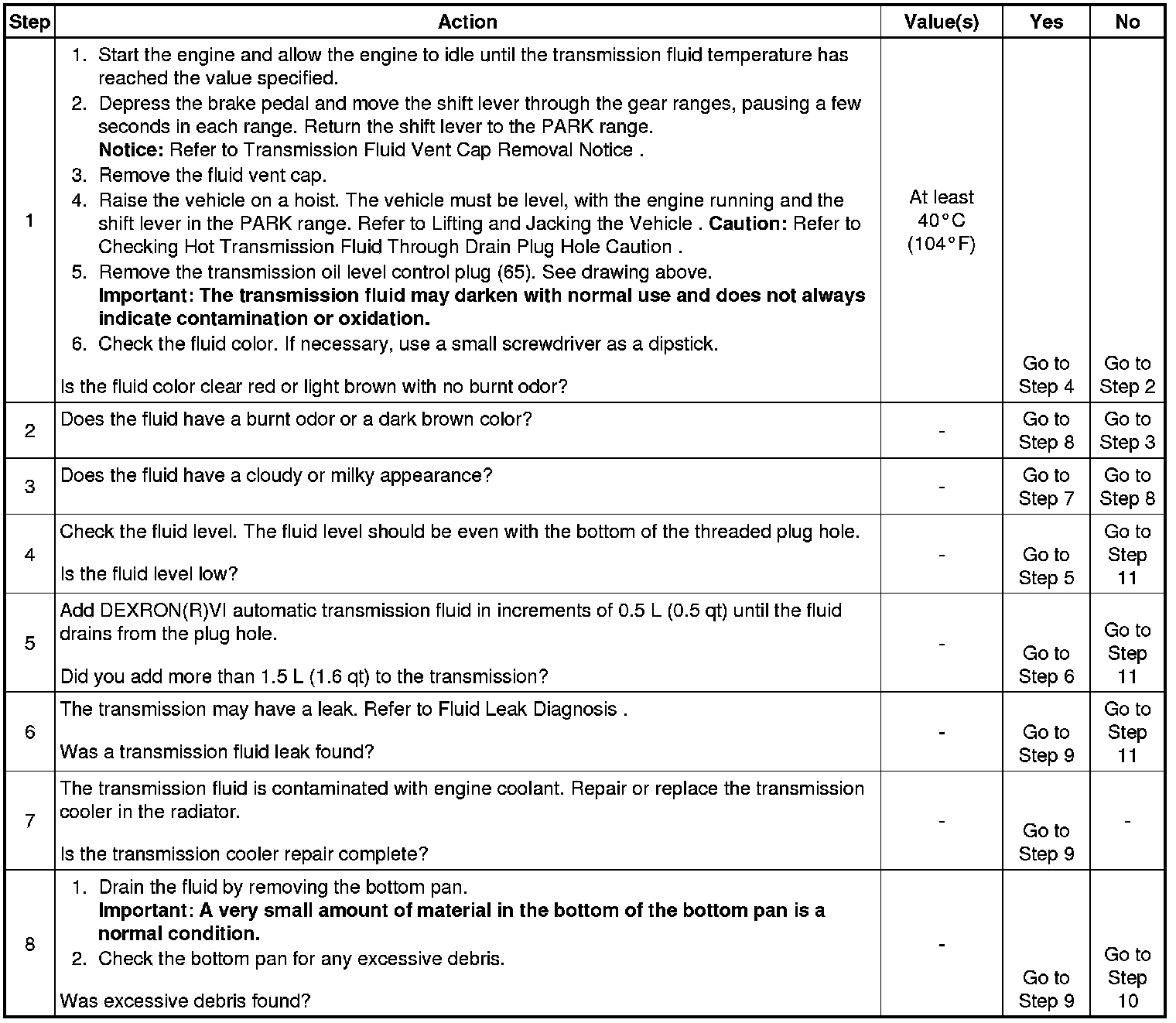

Transmission Fluid Check

Transmission Fluid Check:

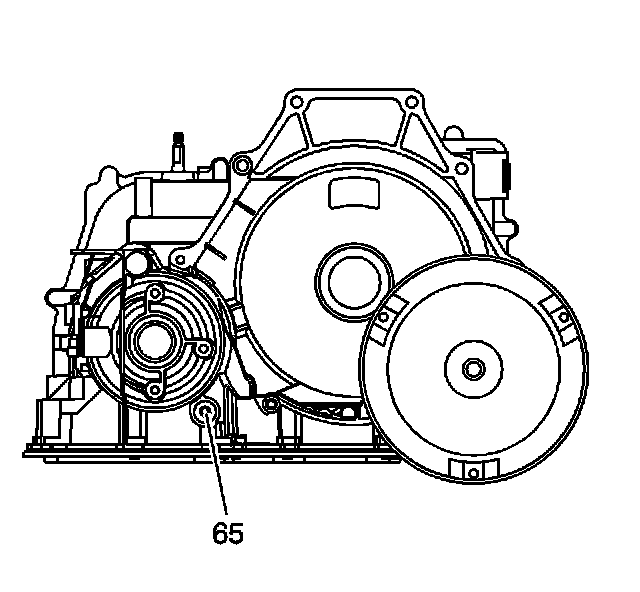

The oil level control plug (65) is located on the torque converter side of the transmission.
