Home >> Chevrolet >> 2008 >> Malibu L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6T40/6T45 - Automatic Transmission >> Assemble, Disassemble, and Installation >> Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation

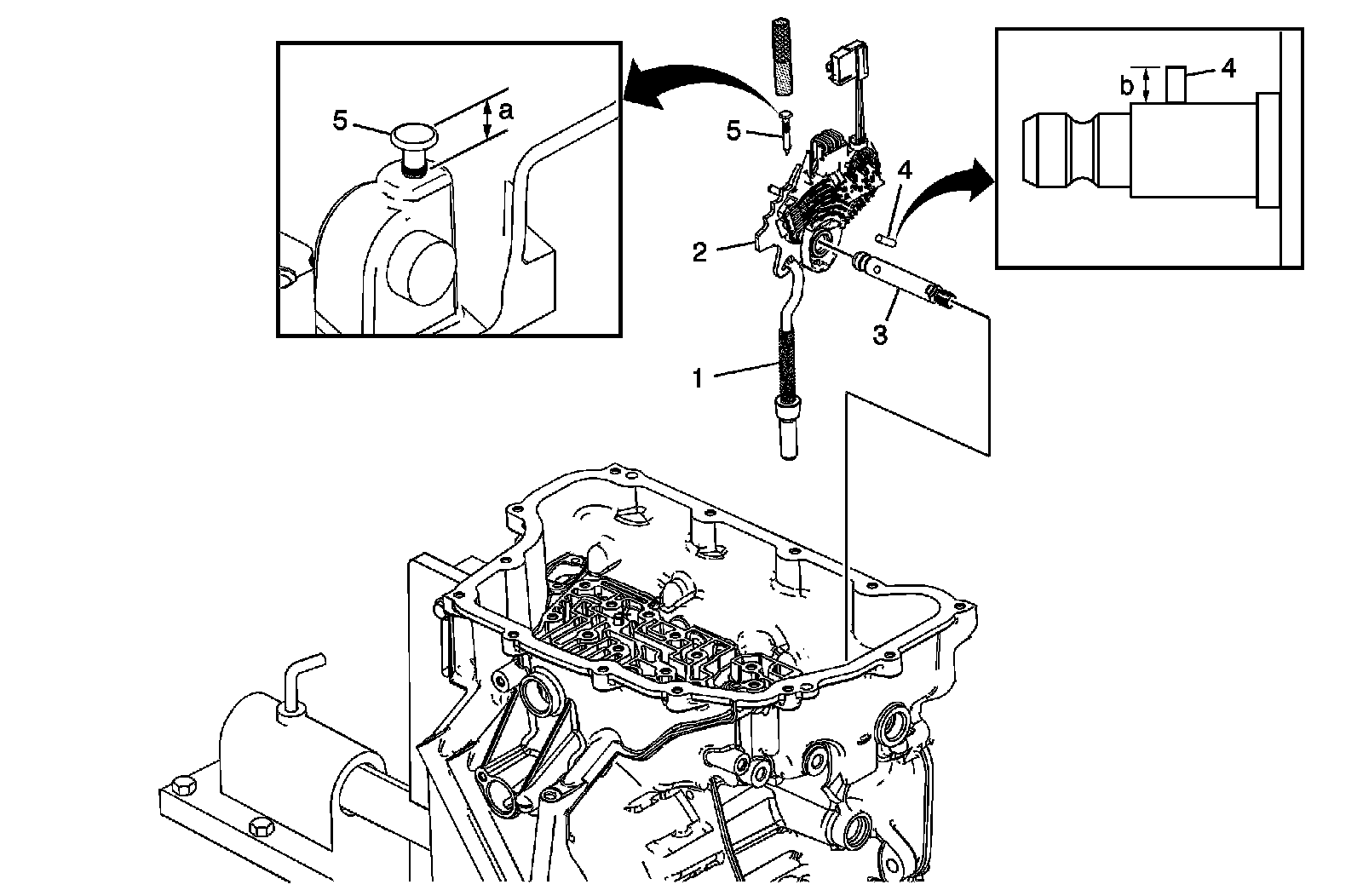

Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation



Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation

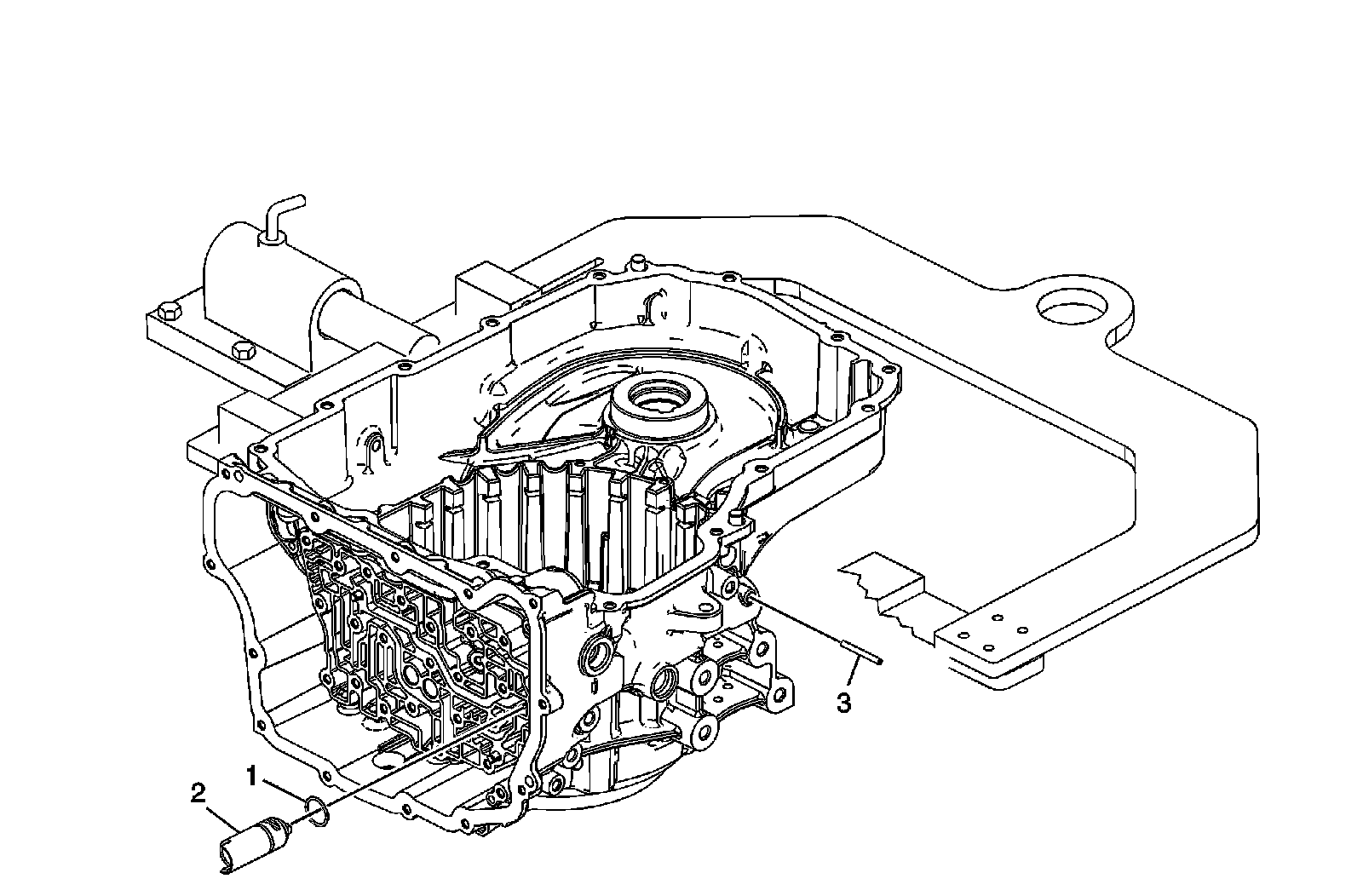

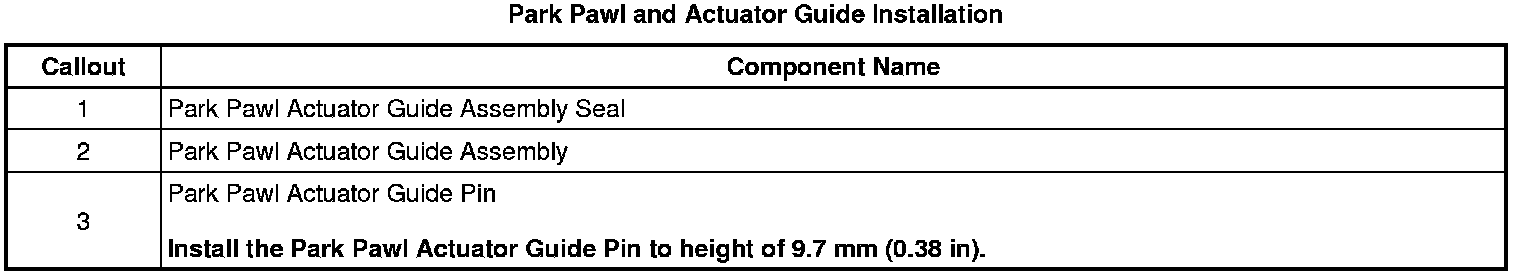

Park Pawl Actuator Guide Installation

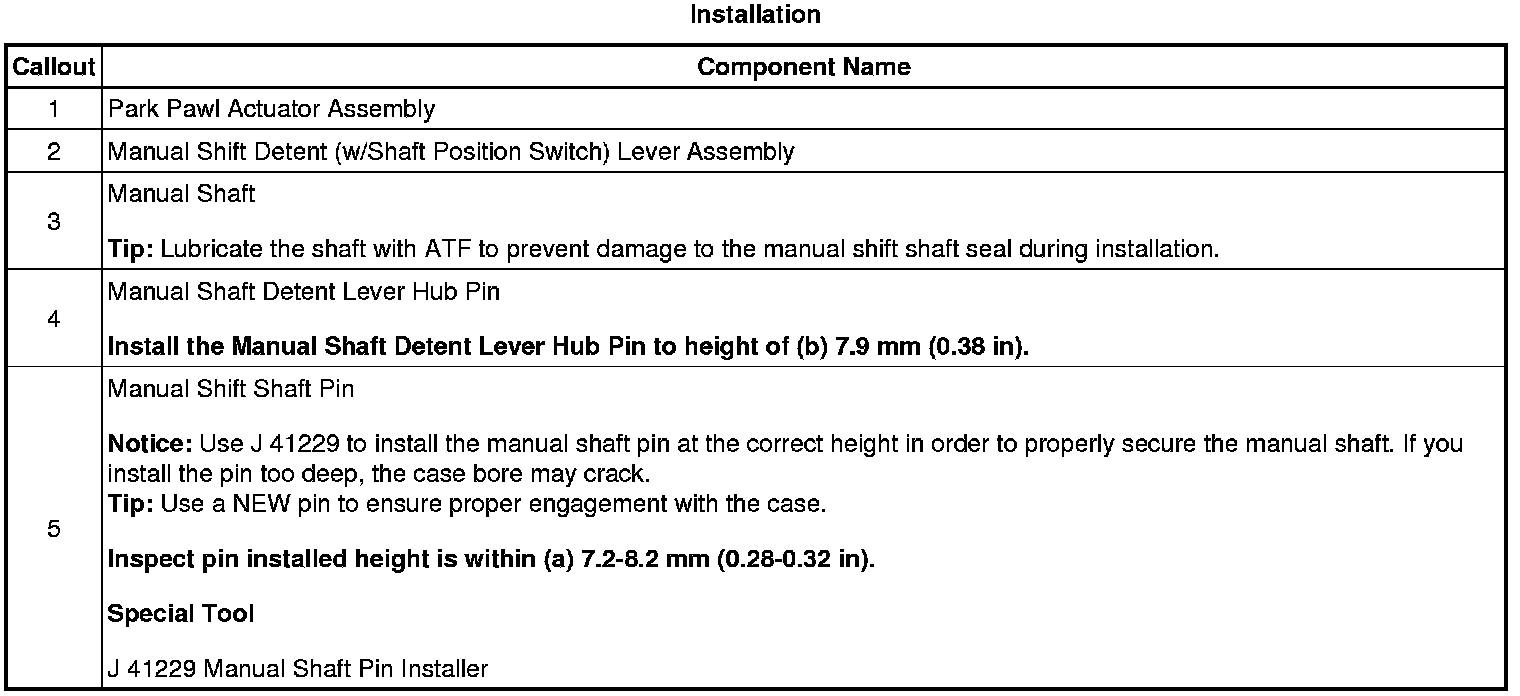

Installation
