Control Valve Body Assembly Assemble



Control Valve Body Assembly Assemble

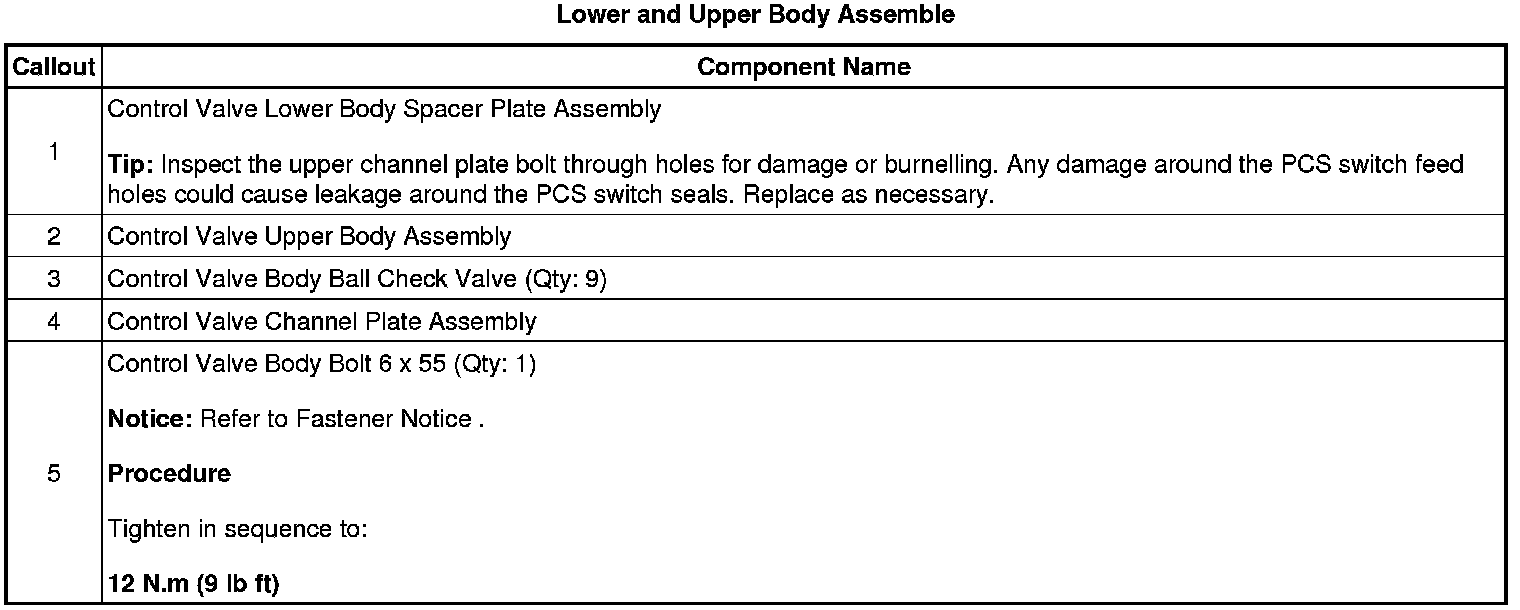

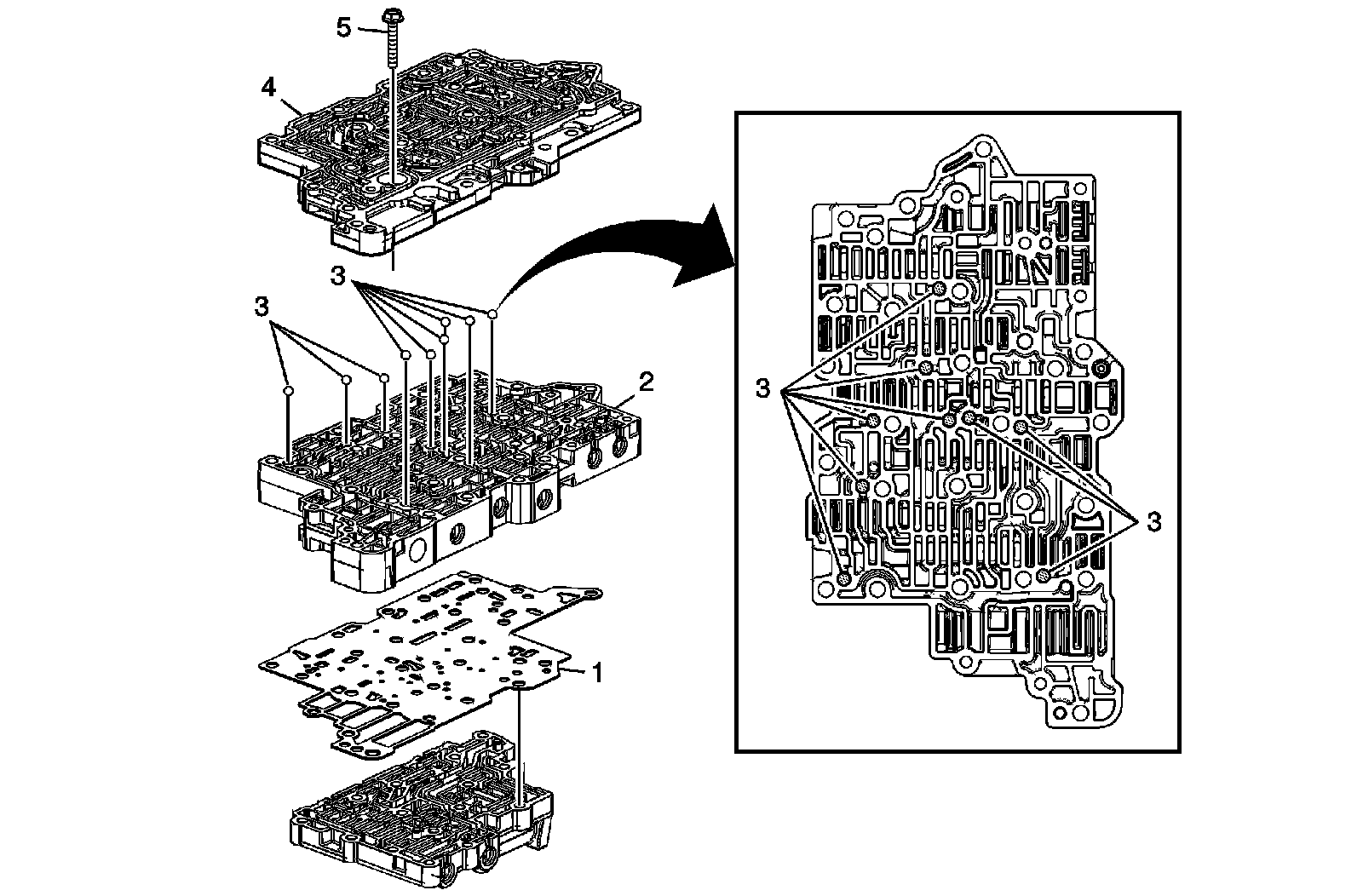

Lower and Upper Body Assemble

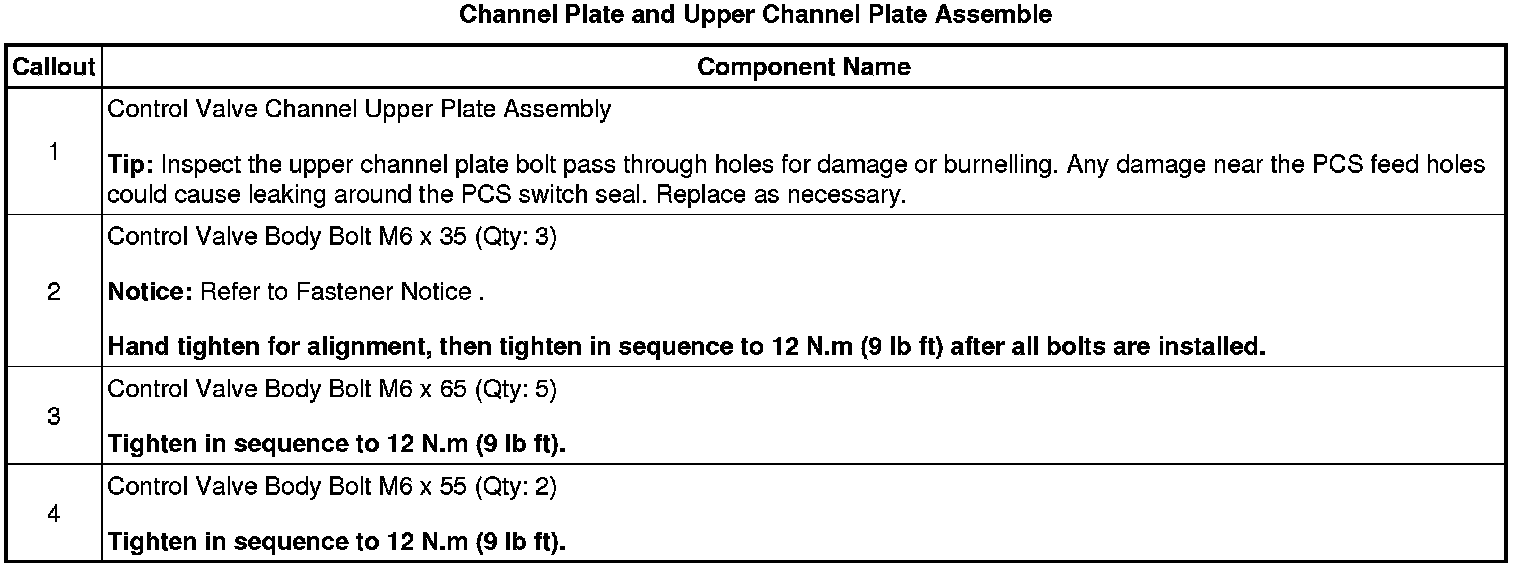

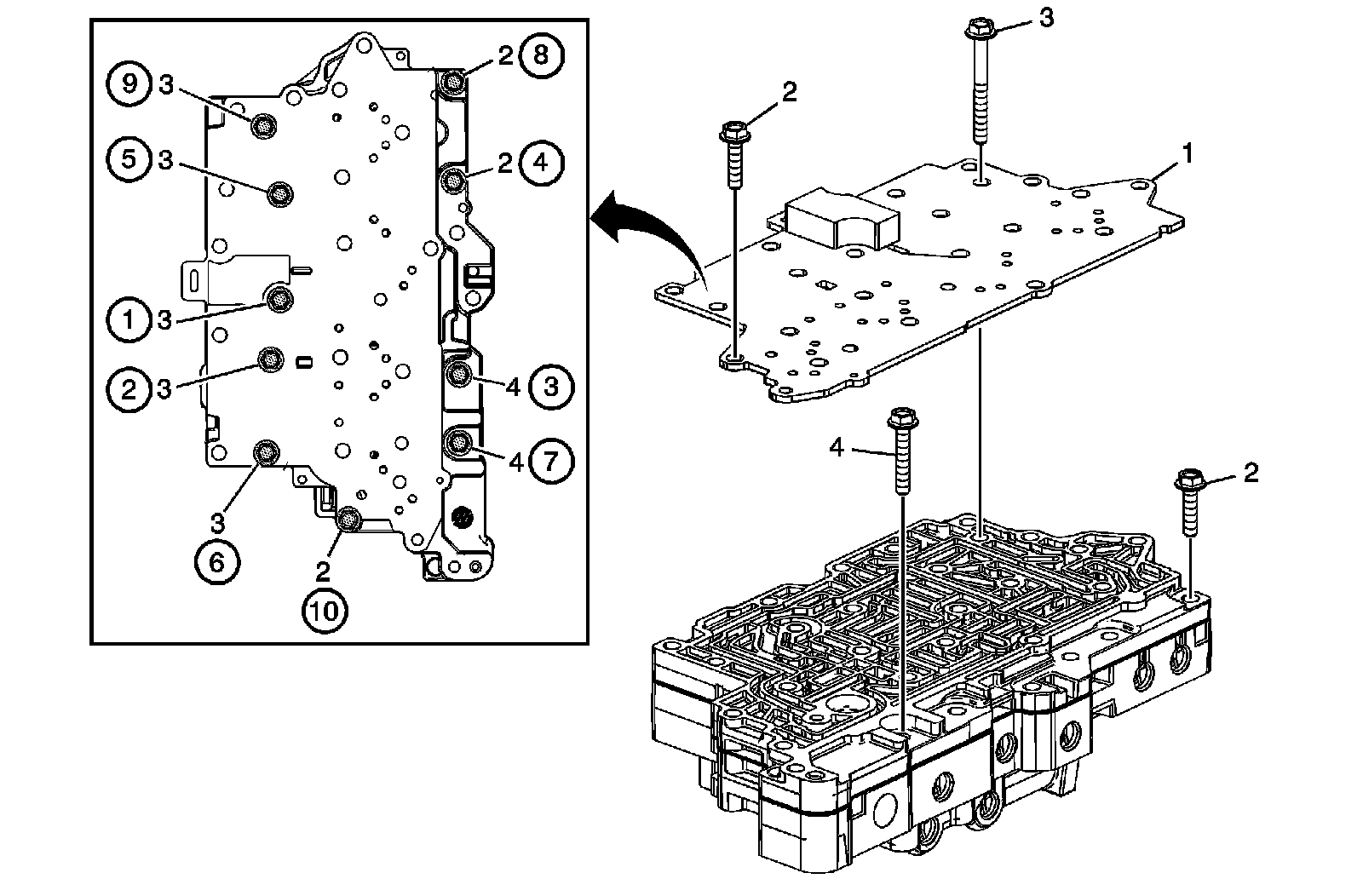

Channel Plate and Upper Channel Plate Assemble
