Home >> Chevrolet >> 2008 >> Malibu L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6T70/6T75 - Automatic Transaxle >> Assemble, Disassemble, and Installation >> Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation

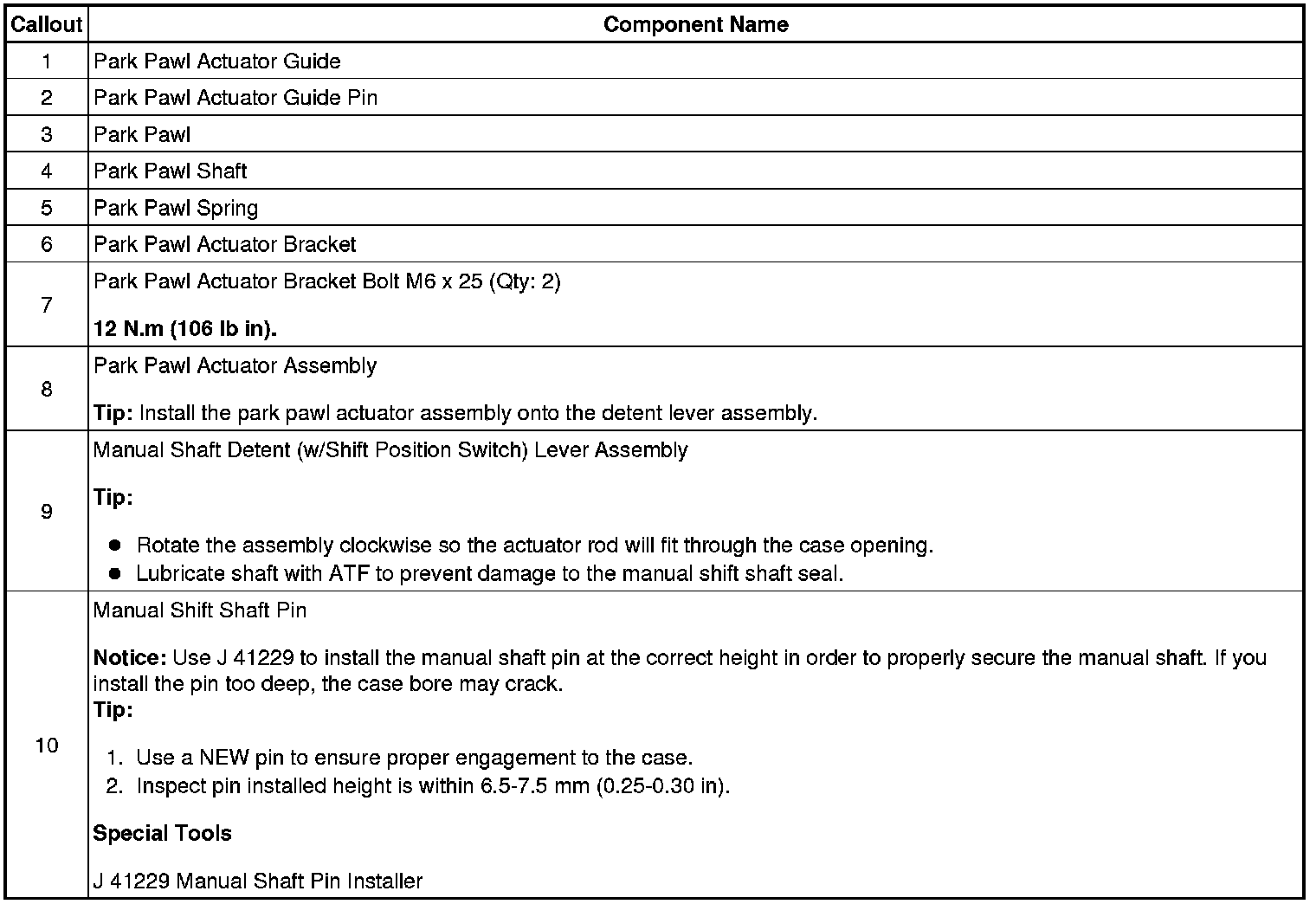

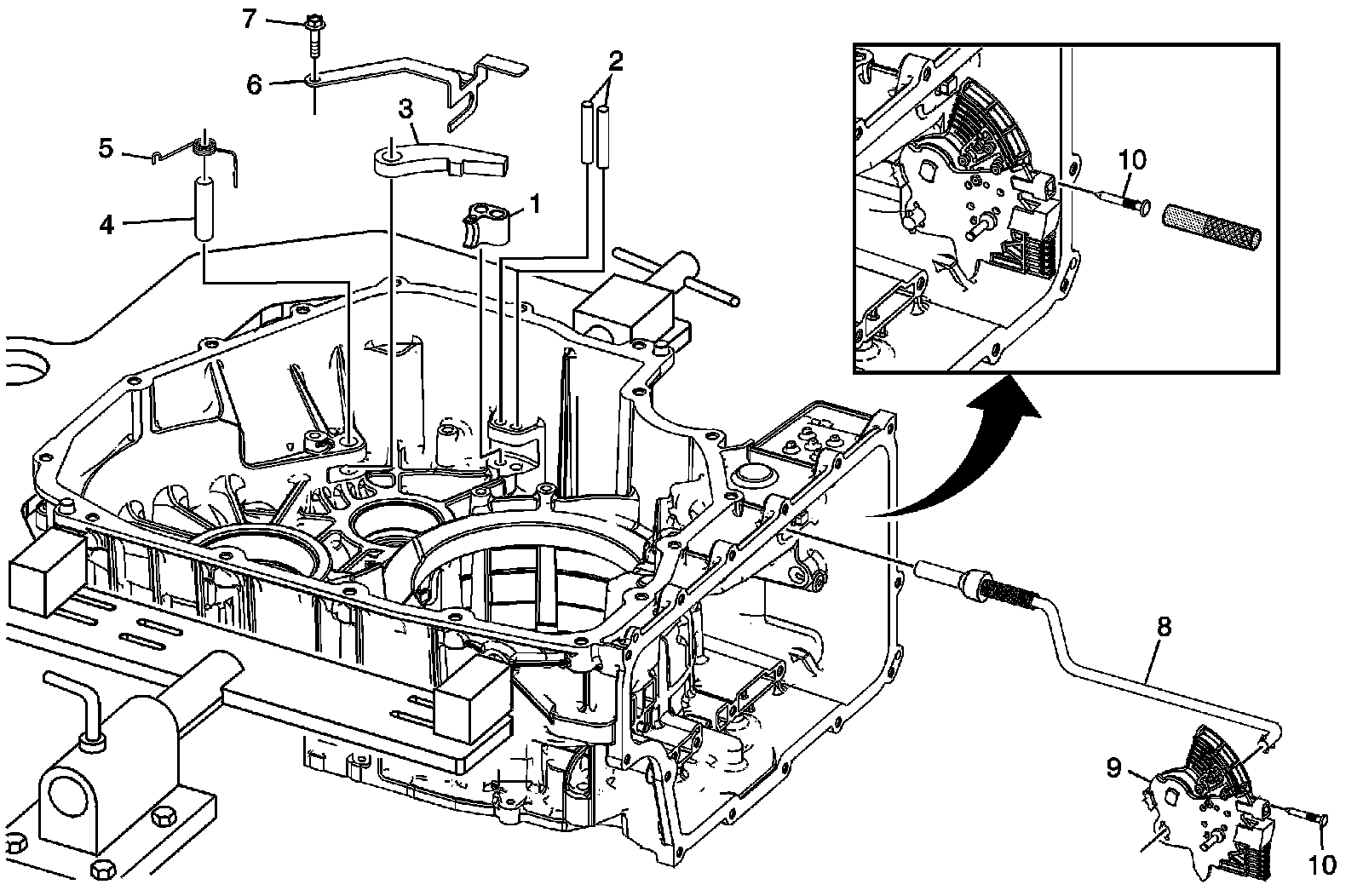

Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation



Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation
