Sunroof / Moonroof Panel: Service and Repair

Sunroof Window Replacement

Removal Procedure

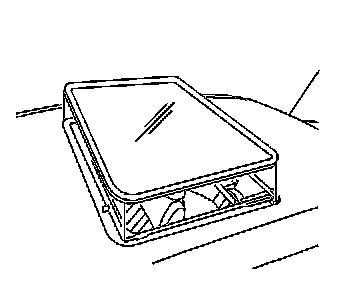

1. Cycle the sunroof window to the vent position.
2. Slide the sunshade to the full rearward position.

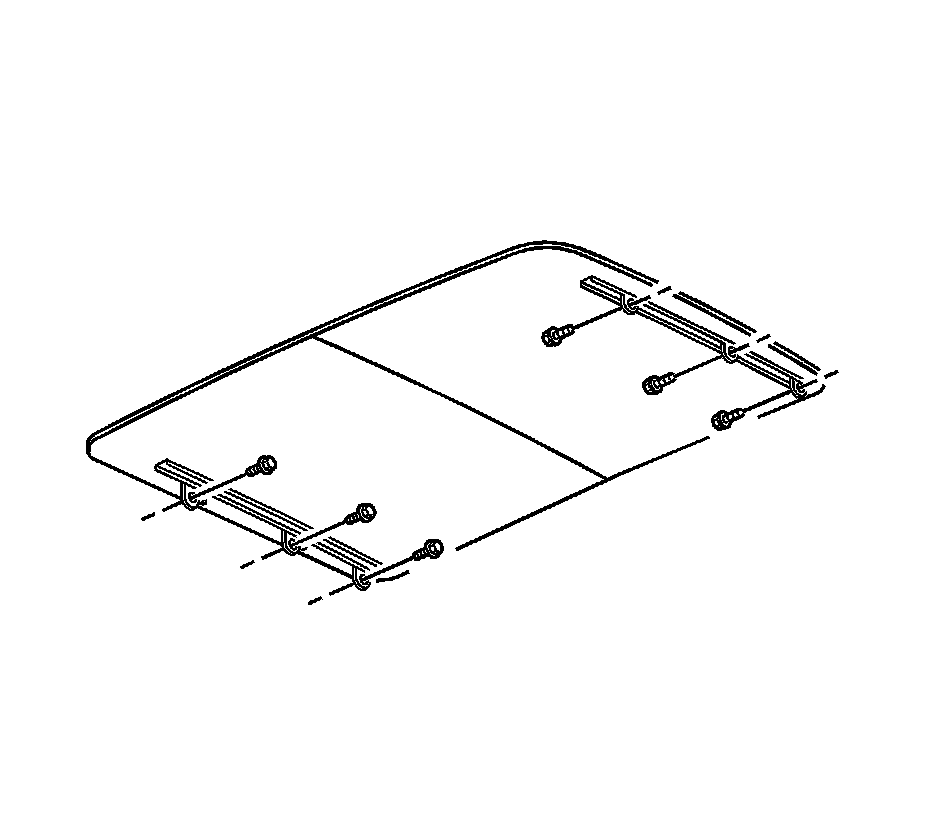

3. From inside the vehicle, remove the sunroof window screws on both sides.






Important: Do NOT scratch the roof surface or the sunroof window.

4. Lift the sunroof window from the sunroof opening.

Installation Procedure






Important: Ensure that the window trade mark is at the rear of the opening.

1. Position the sunroof window into the opening.






Notice: Refer to Fastener Notice.

2. Install the sunroof window screws. Do not tighten the screws.

Tighten the bolts to 4 N.m (35 lb in).

3. Carefully close the sunroof window from the vent position to the full closed position.
4. Adjust the sunroof window. Refer to Sunroof Window Height and Opening Fit Adjustment.
5. Close the sunshade.
6. Cycle the sunroof window to ensure proper operation and fit.
