Battery Control Module
Battery Control Module
Component Connector End Views

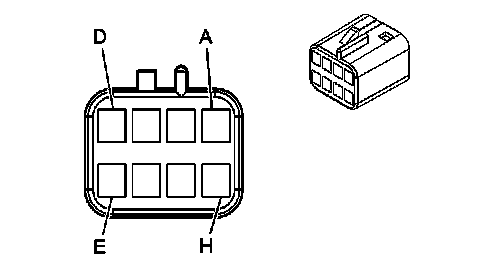

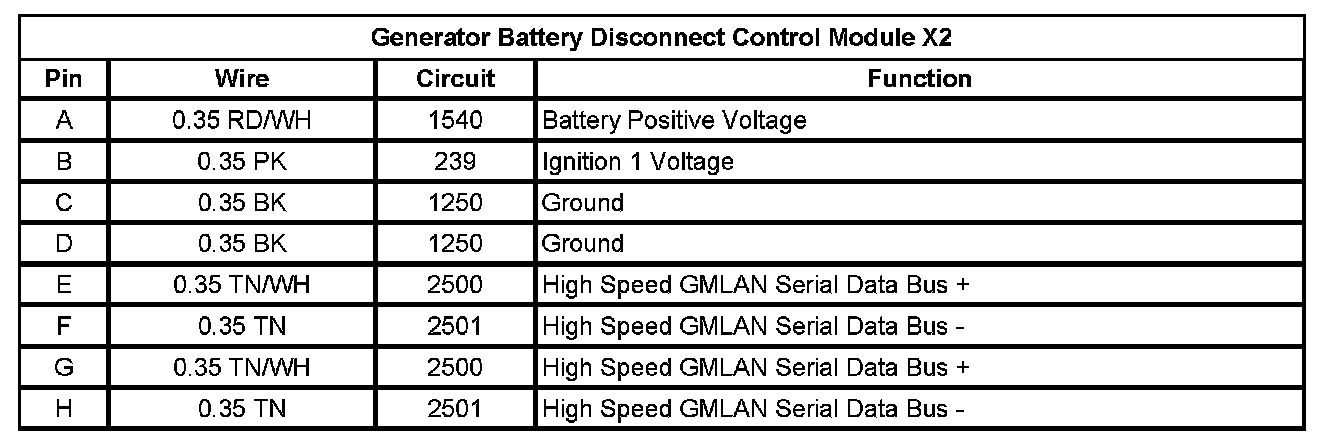

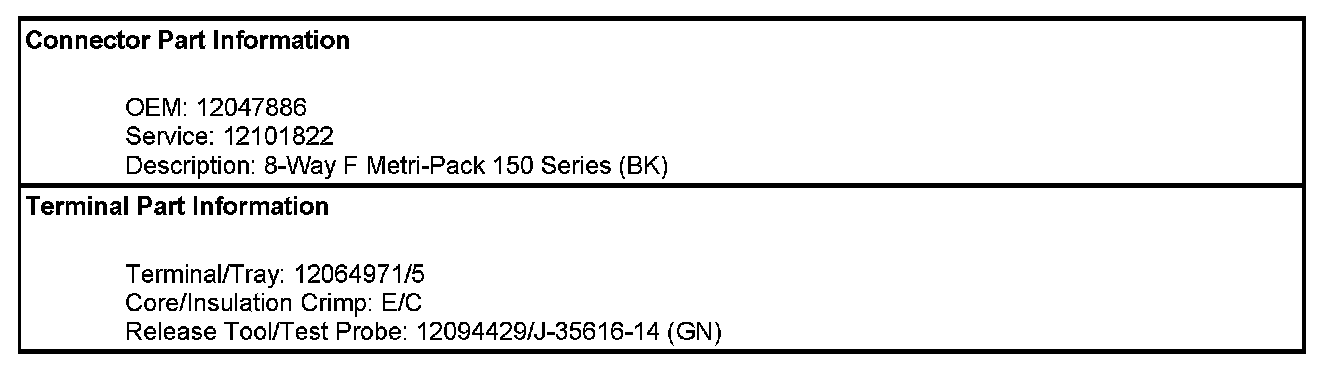

Generator Battery Disconnect Control Module X2
