Brake Fluid Pressure Sensor/Switch
Brake Fluid Pressure Sensor/Switch
Component Connector End Views

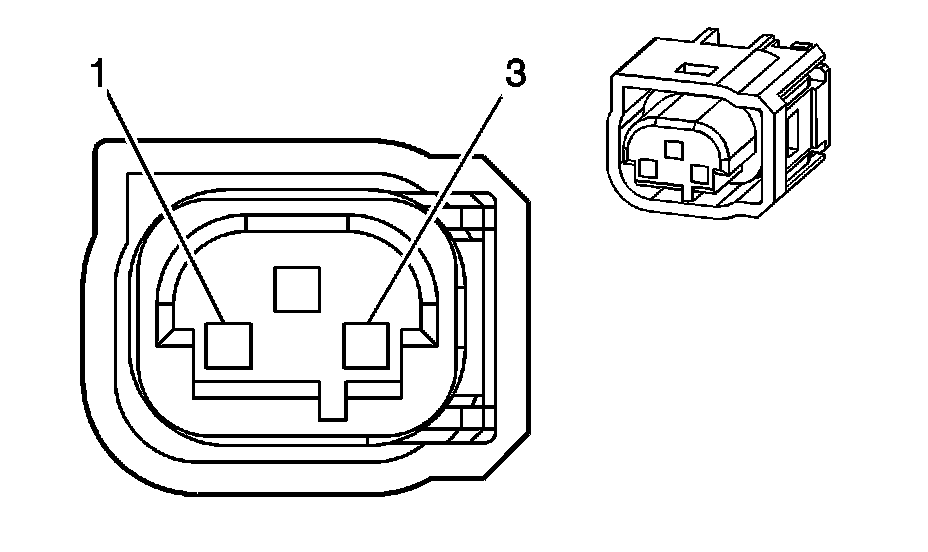

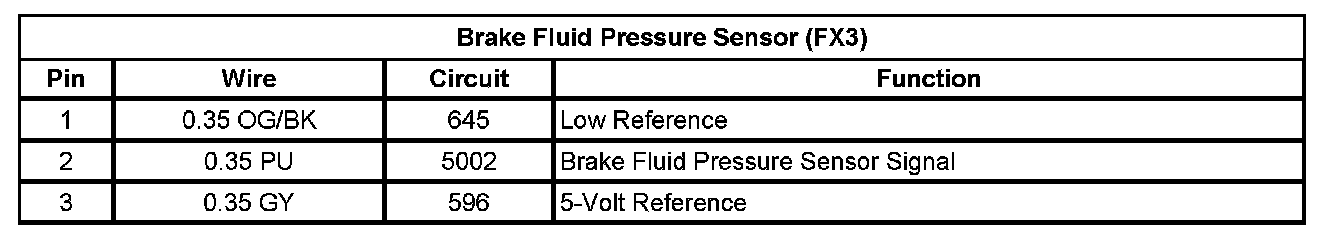

Brake Fluid Pressure Sensor (FX3)
