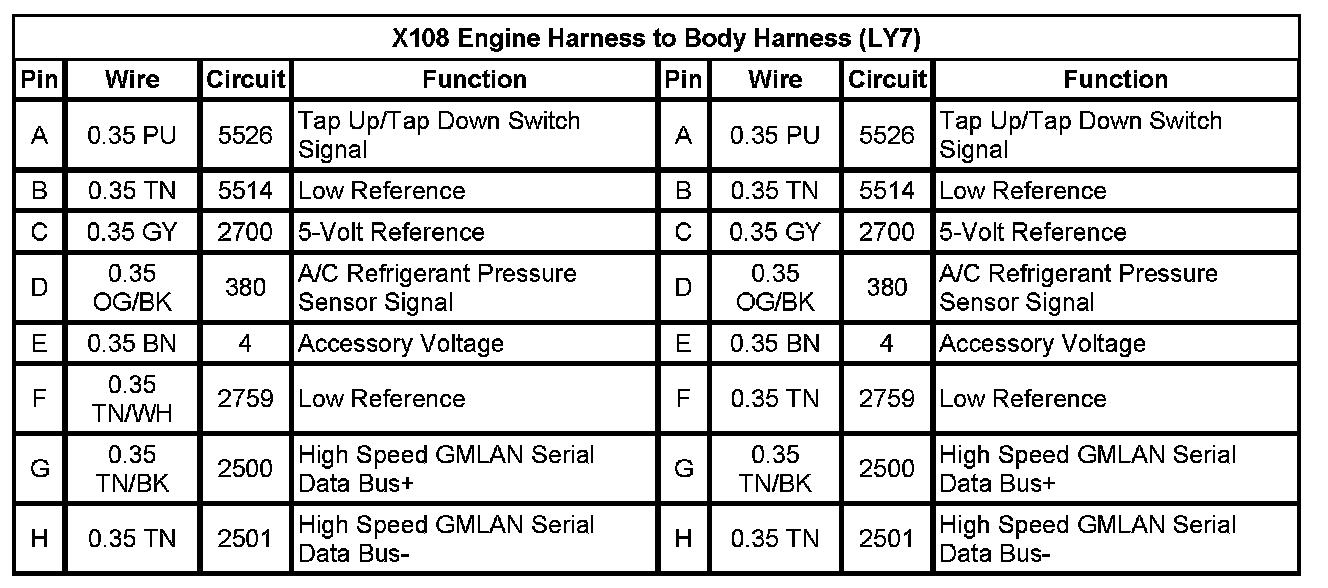

X108 Engine Harness to Body Harness (LY7)
X108 Engine Harness to Body Harness (LY7)

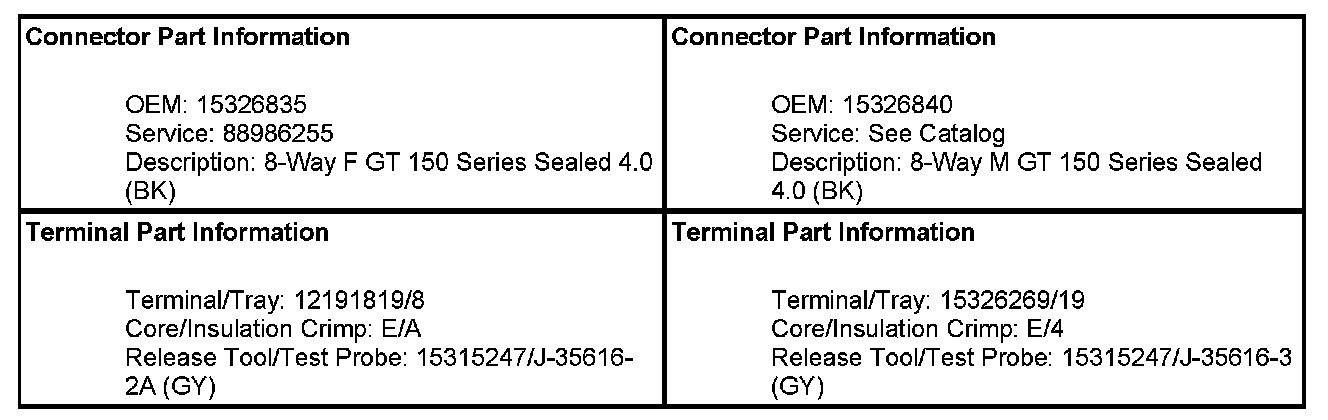

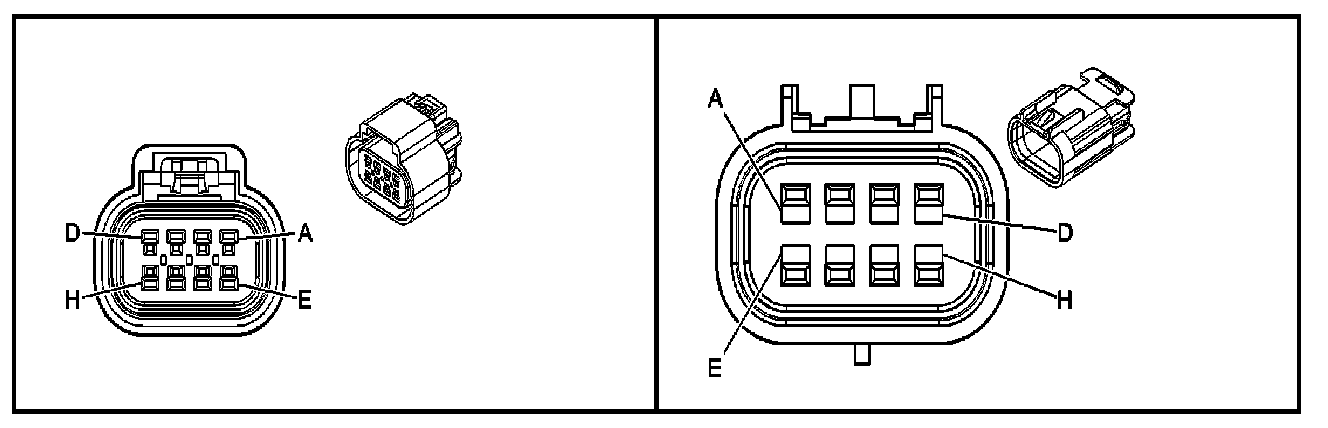

Inline Harness Connector End Views
X108 Engine Harness to Body Harness (LY7)
