Engine Control Module (ECM) X1 (LY7)
Component Connector End Views

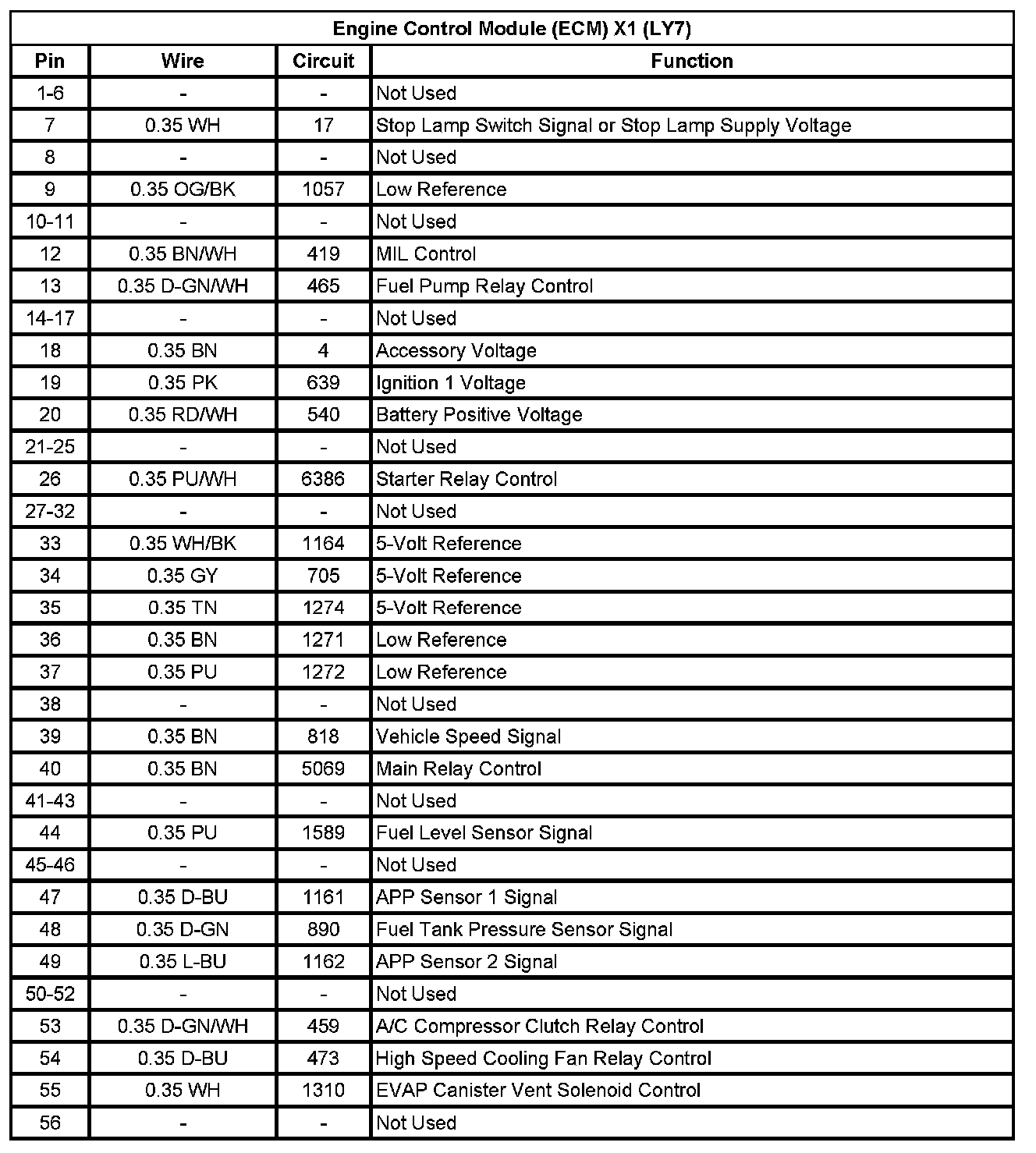

Engine Control Module (ECM) X1 (LY7)
Engine Control Module (ECM) X2 (LY7)

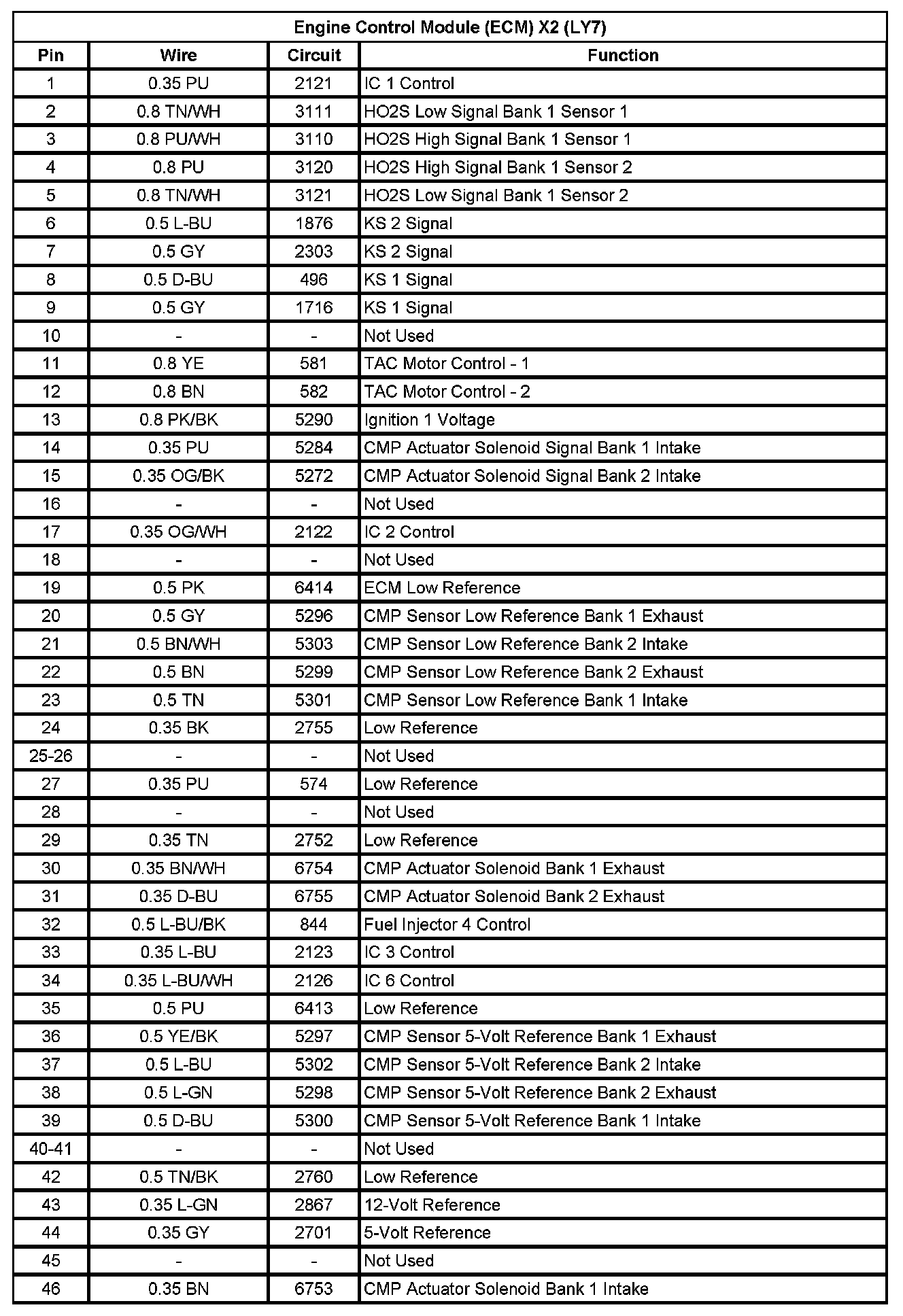

Engine Control Module (ECM) X2 (LY7) (Pin 1 To 46):

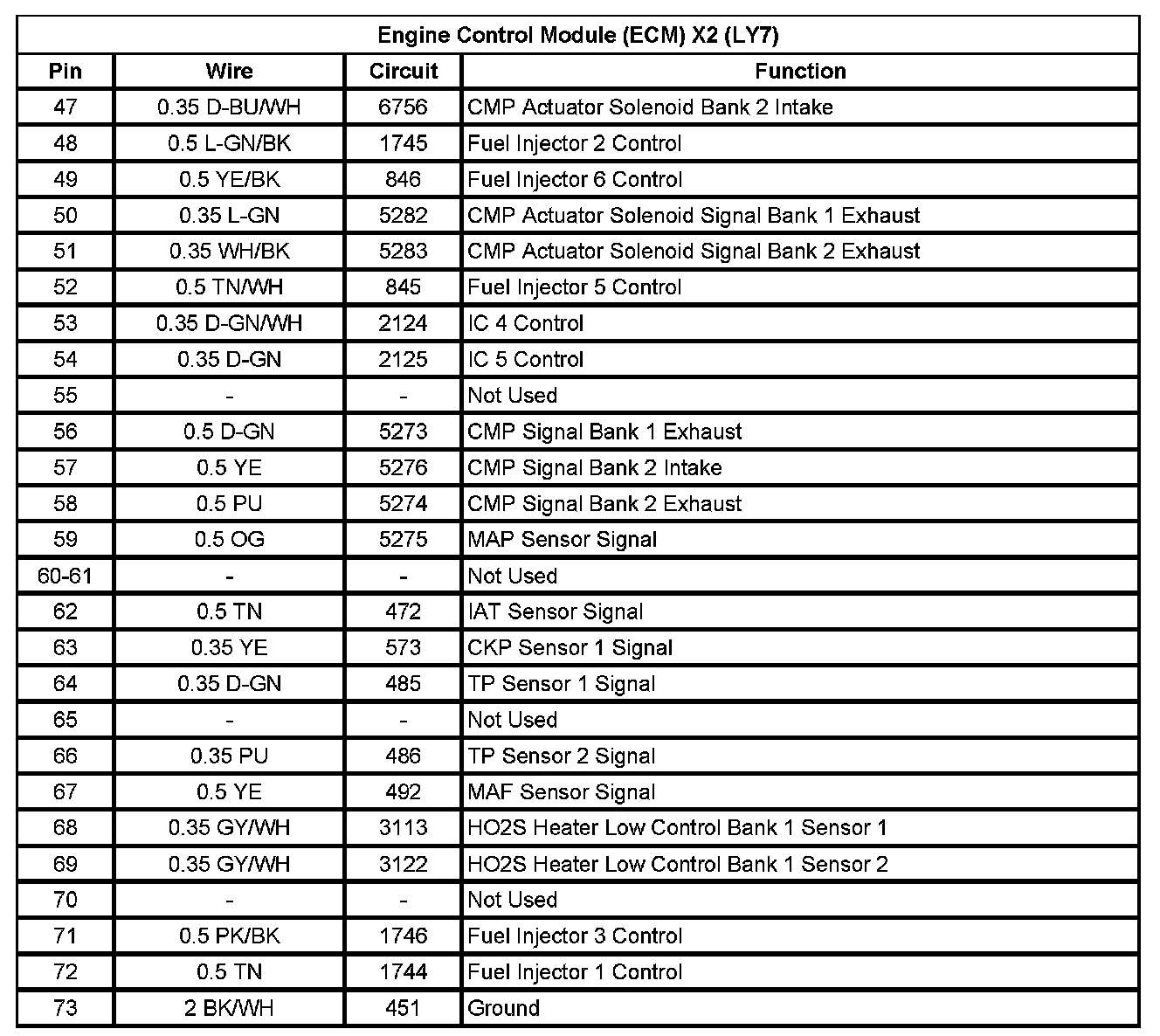

Engine Control Module (ECM) X2 (LY7) (Pin 47 To 73):

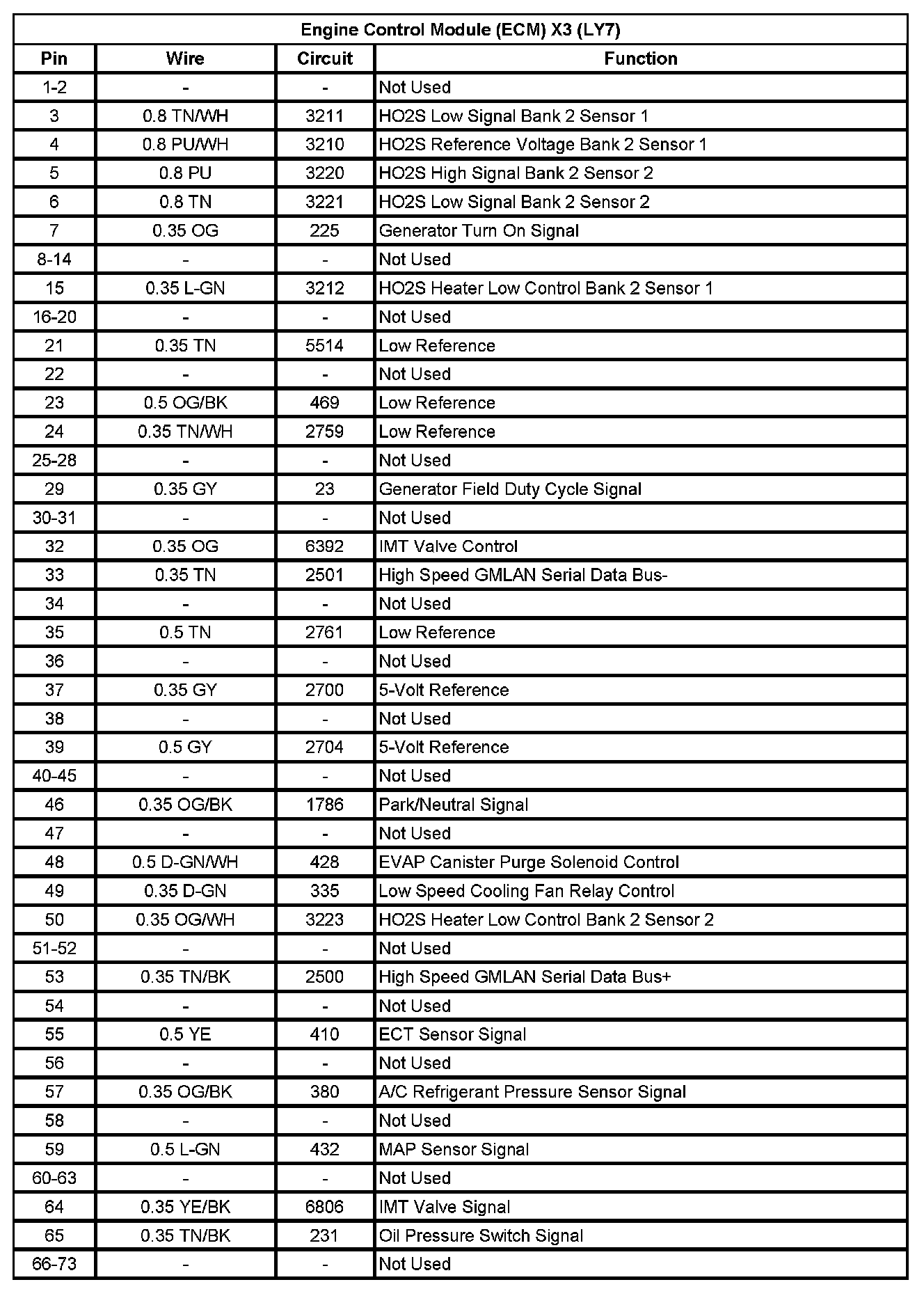

Engine Control Module (ECM) X3 (LY7)
