Ignition Coil

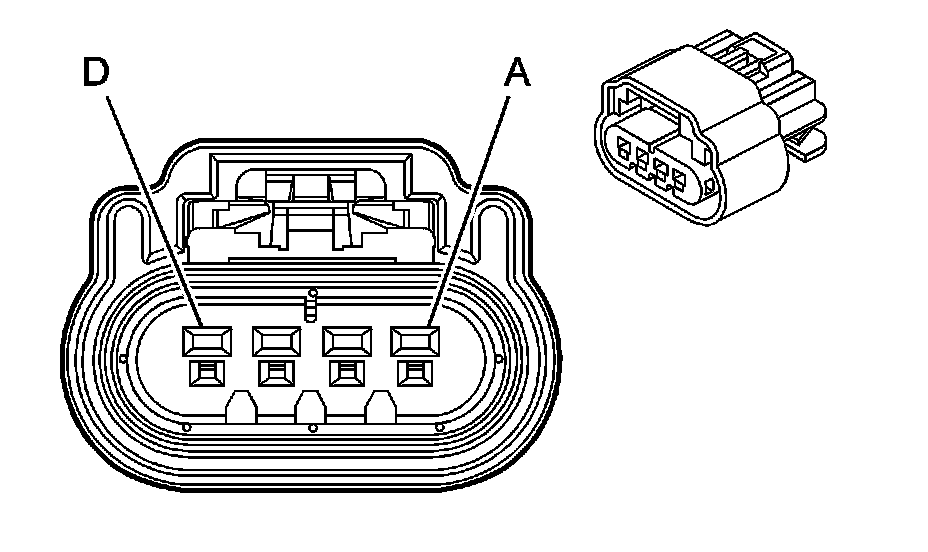

Component Connector End Views

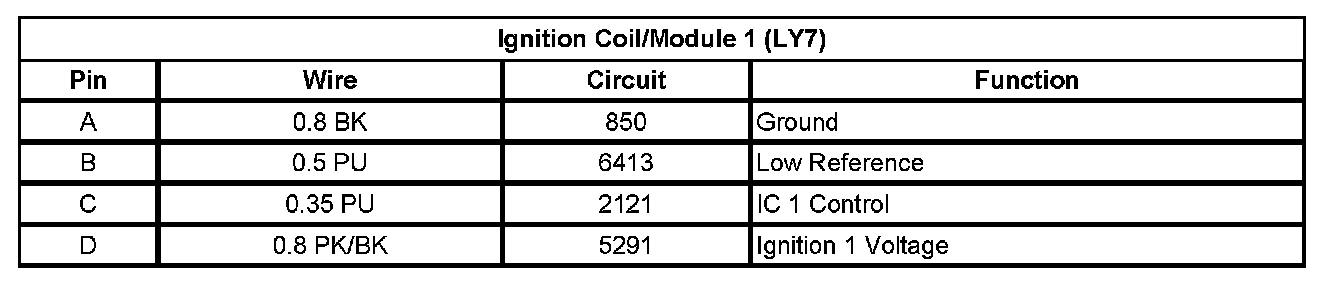

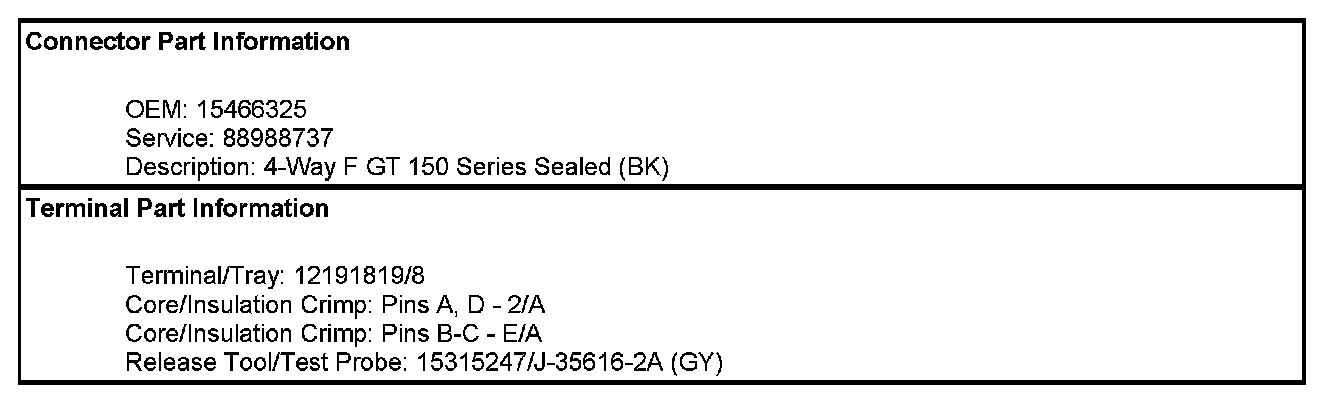

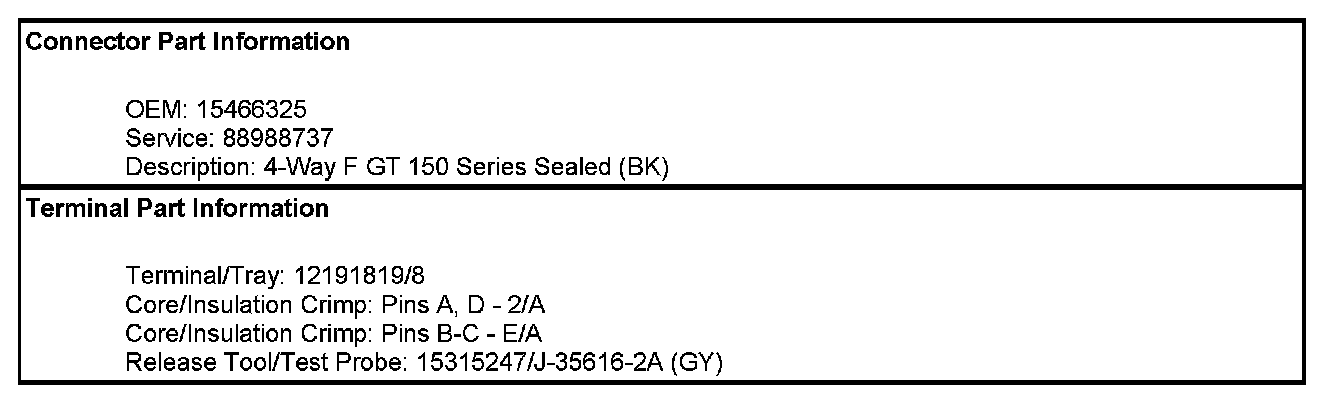

Ignition Coil/Module 1 (LY7)

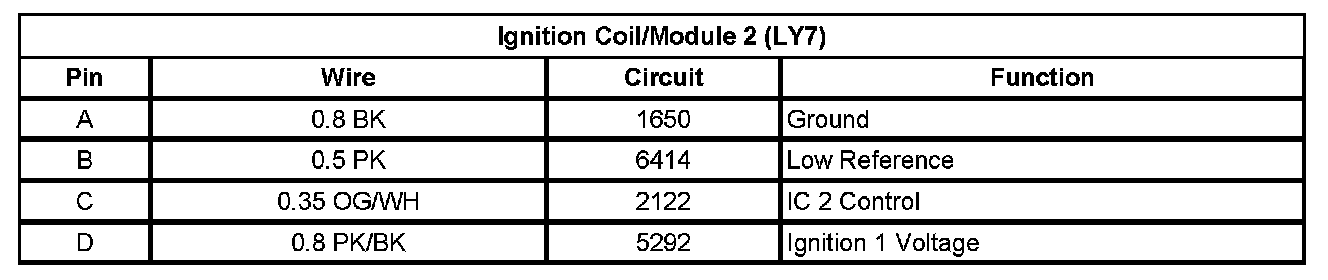

Ignition Coil/Module 2 (LY7)

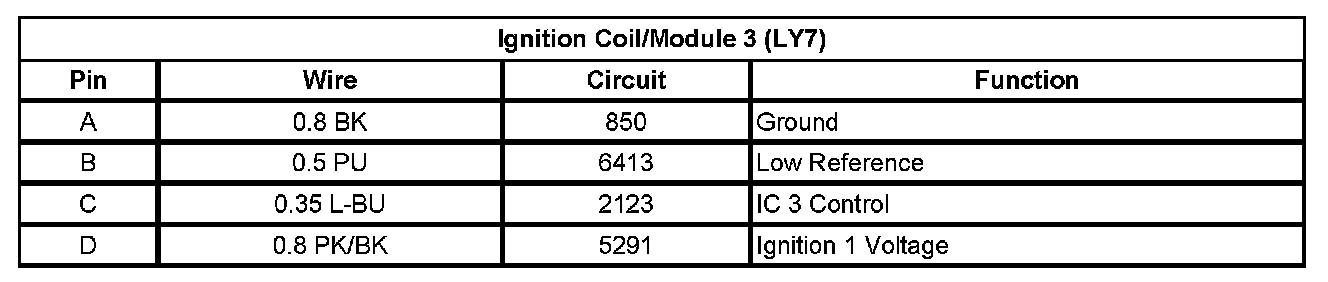

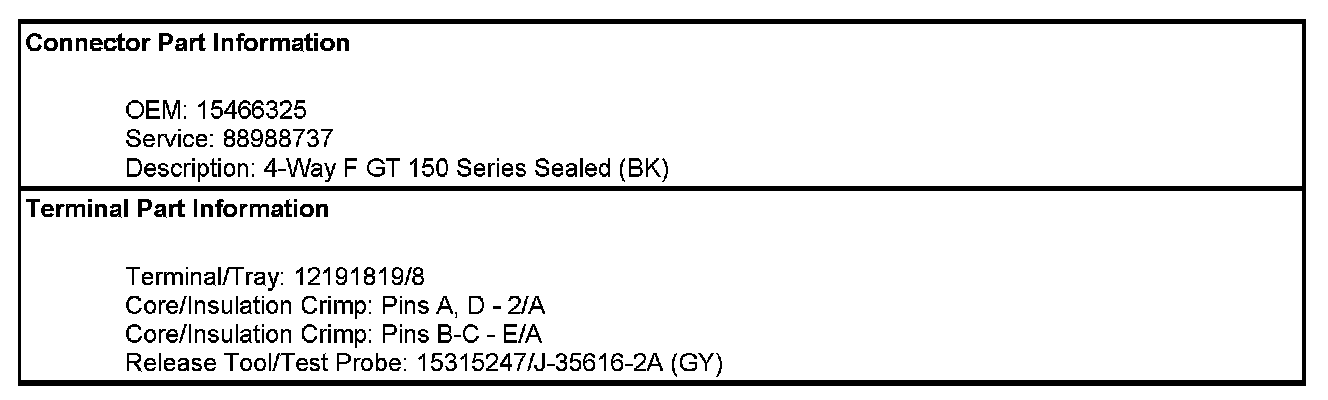

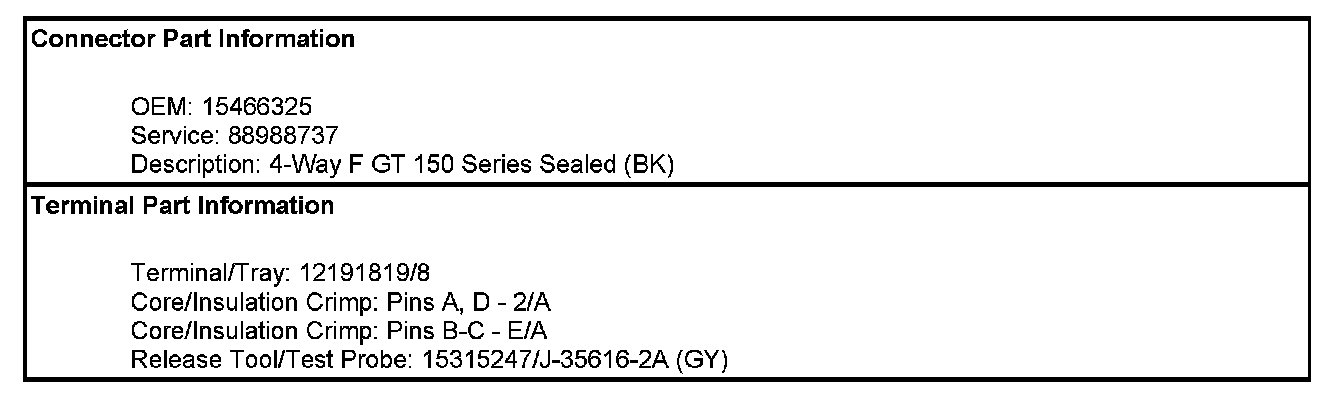

Ignition Coil/Module 3 (LY7)

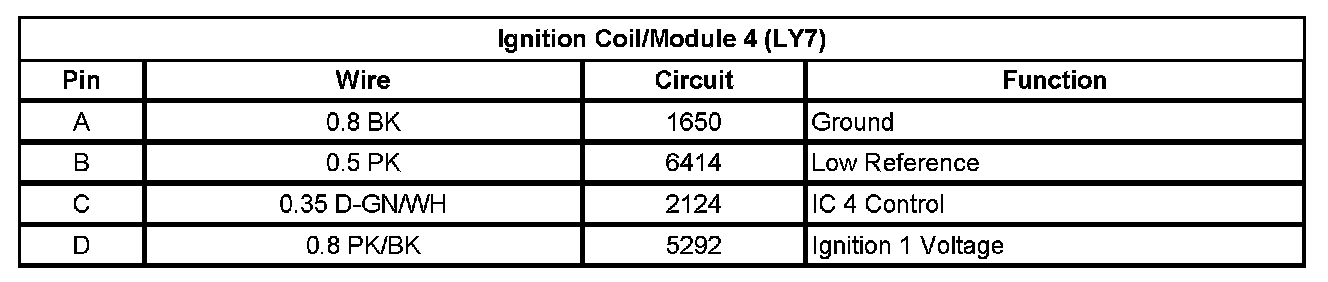

Ignition Coil/Module 4 (LY7)

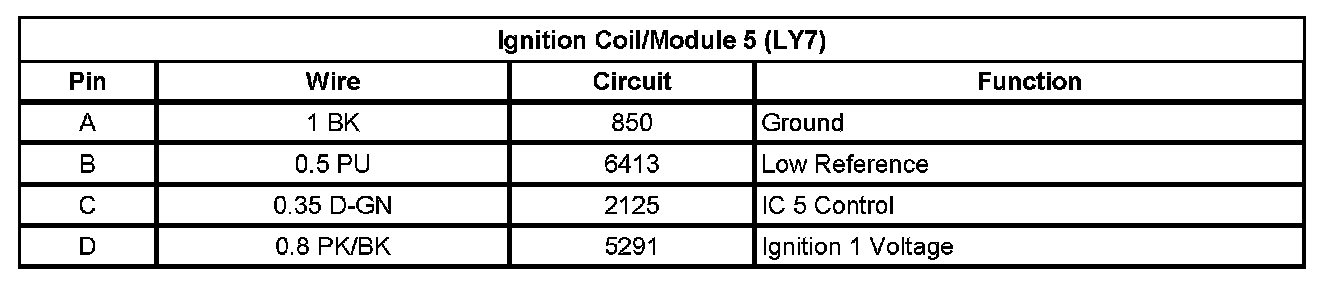

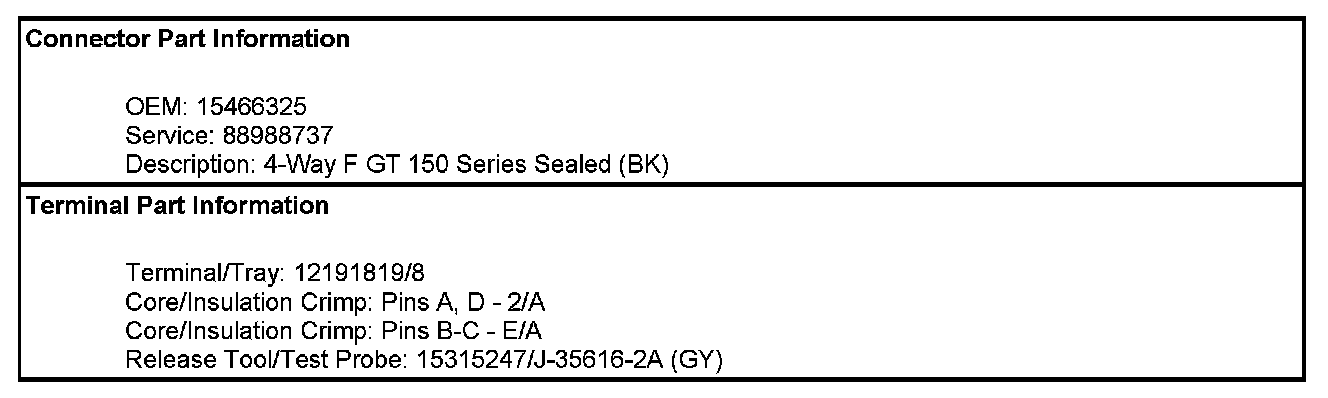

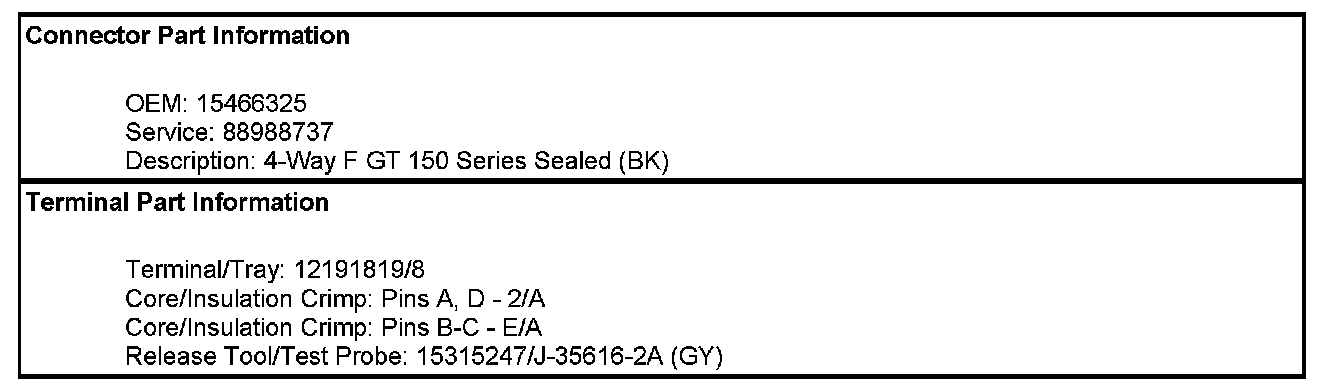

Ignition Coil/Module 5 (LY7)

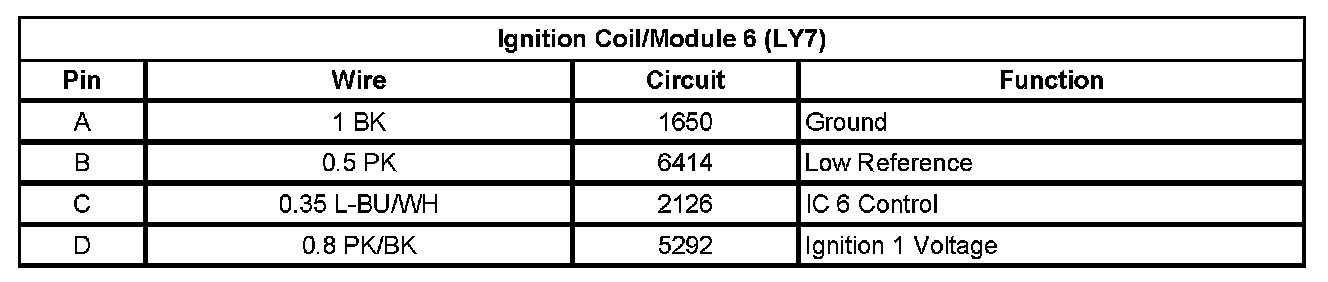

Ignition Coil/Module 6 (LY7)
