Home >> Chevrolet >> 2008 >> Malibu V6-3.6L >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Automatic Transmission/Transaxle >> 4T45-E Automatic Transaxle >> Manual Second Gear (With Electronic Range Select Mode)

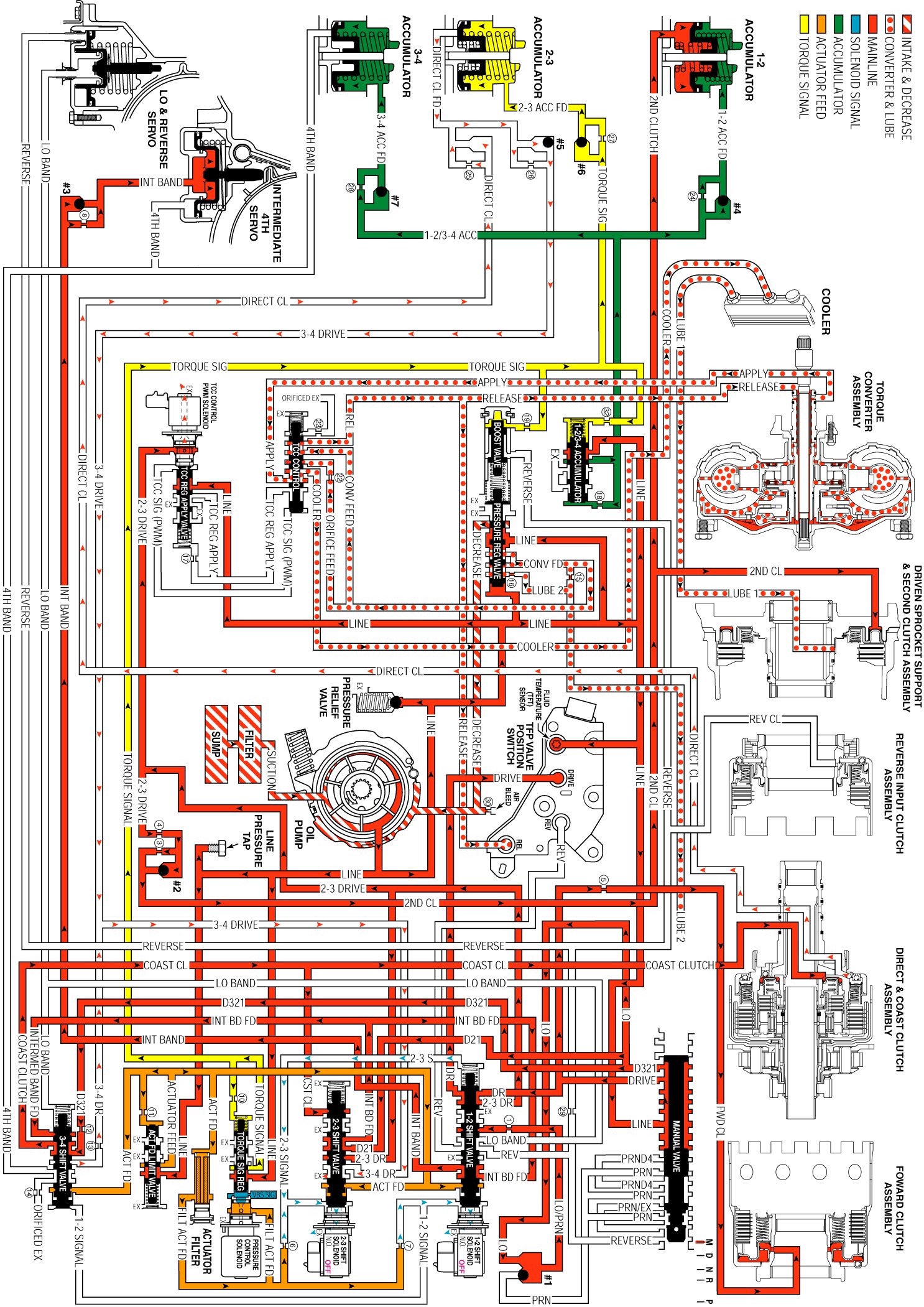

Manual Second Gear (With Electronic Range Select Mode)



Manual Range 2nd - With Electronic Range Select Mode

Manual Range 2nd - With Electronic Range Select Mode:
