Engine Mount Replacement - Right

Engine Mount Replacement - Right Side

Removal Procedure





1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
2. Remove the drive belt. Refer to Drive Belt Replacement (Service and Repair) .
3. Support the engine. Refer to Engine Support Fixture (Engine Support Fixture) .
4. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

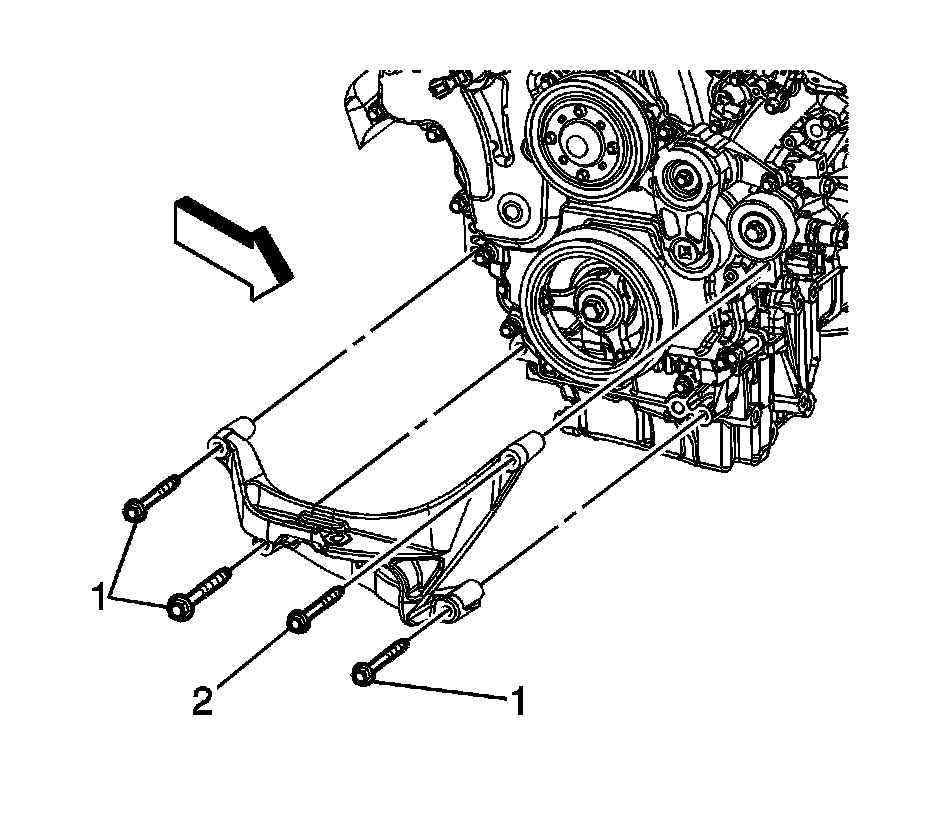

5. Remove three upper engine mount bracket bolts (1).
6. Loosen right upper front engine mount bracket bolt (2).




7. Remove the upper engine mount bracket nuts (1).
8. Remove the lower bracket bolts (2).
9. Remove the mount (3) and the lower bracket (4) from the vehicle.




10. Remove the upper bracket bolt (1) from the bracket.
11. Remove the upper bracket.
12. Remove the engine mount (3) from the lower bracket (4).



Installation Procedure






Notice: Refer to Fastener Notice .

1. Install the engine mount (3) to the lower bracket (4).

Tighten the nuts to 50 N.m (38 lb ft).

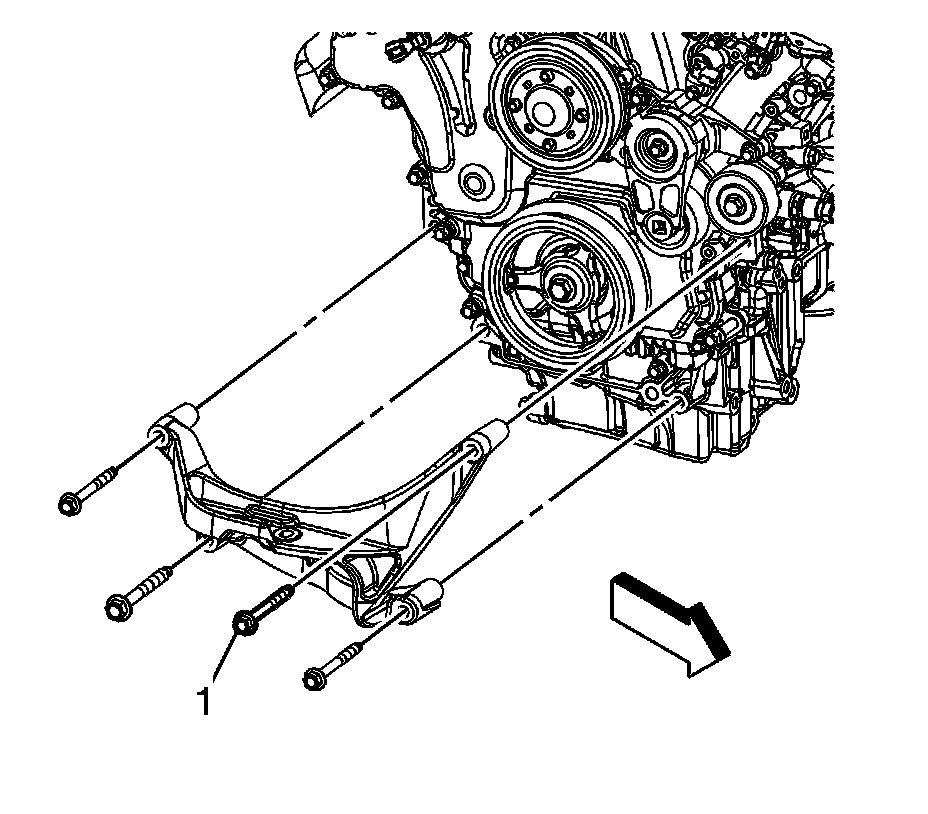

2. Install the engine mount upper bracket and bolt (1) to the engine. Do not tighten the bolt.




3. Install the lower bracket bolts (2).

Tighten the lower bracket bolts to 50 N.m (38 lb ft).

4. Install the upper engine mount bracket nuts (1).

Tighten the upper engine mount bracket nuts to 50 N.m (38 lb ft).





5. Install the upper engine mount bracket bolts (1).

Tighten the upper engine mount bracket bolts to 50 N.m (38 lb ft).

6. Install the right upper engine mount bracket bolt (2).

Tighten the right upper engine mount bracket bolt to 50 N.m (38 lb ft).

7. Lower the vehicle.
8. Remove the engine support. Refer to Engine Support Fixture (Engine Support Fixture) .
9. Install the drive belt. Refer to Drive Belt Replacement (Service and Repair) .
10. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
