Engine Mount Strut Replacement - Right

Engine Mount Strut Replacement - Right Side

Removal Procedure





1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
2. Remove the air conditioning (A/C) line retainer and position the A/C line aside.

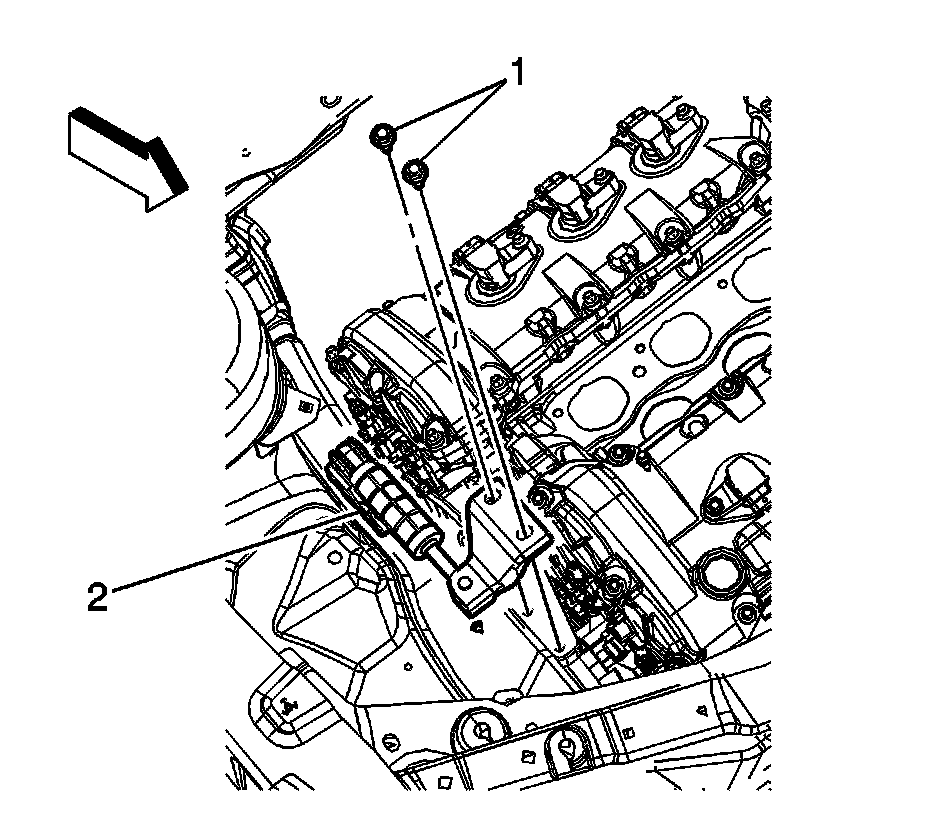

3. Remove the engine mount strut to bracket bolts (1).




4. Rotate strut (2) vertical then remove engine mount strut to side rail bolts (1).
5. Remove the strut from vehicle.



Installation Procedure






Notice: Refer to Fastener Notice .

1. Position the strut (2) to the side rail, then install the strut to side rail bolt (1).

Tighten the bolt to 110 N.m (81 lb ft).





2. Install the engine mount strut to bracket bolts (1).

Tighten the bolts to 25 N.m (18 lb ft).

3. Position the A/C line in place and install the A/C line retainer.
4. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
