136. Drive Belt Idler Pulley Installation

Drive Belt Idler Pulley Installation

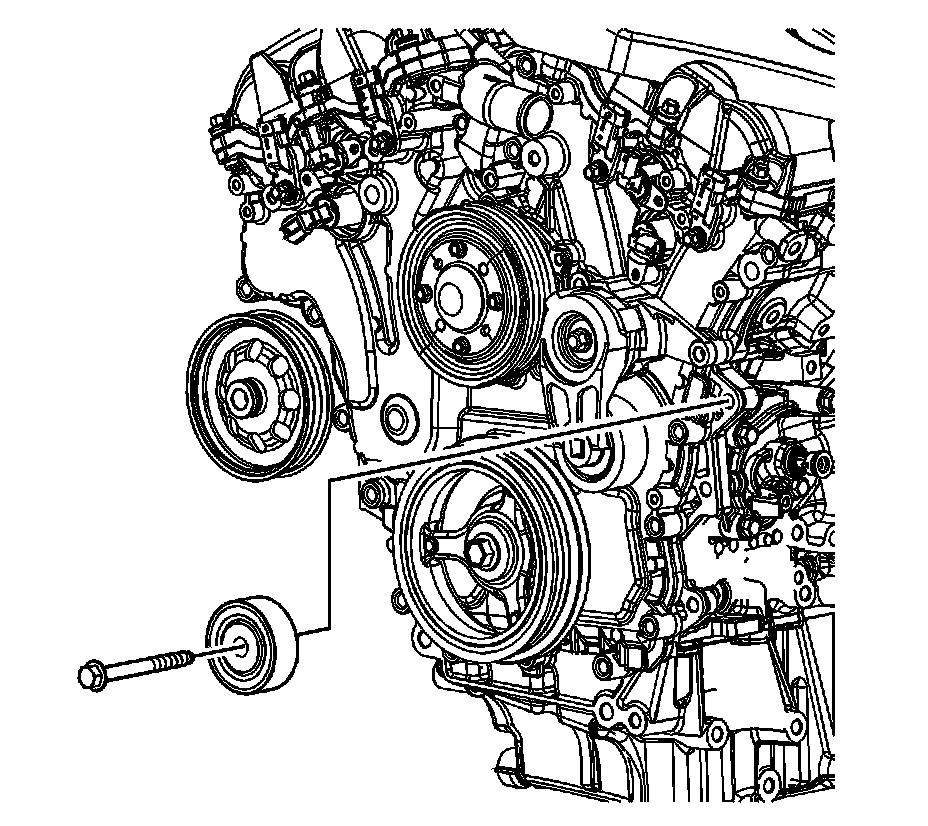

1. Place the drive belt idler pulley and bolt in position through the generator mounting hole and into the engine front cover.

Notice: Refer to Fastener Notice .

2. Install the drive belt idler pulley bolt.

Tighten the drive belt idler pulley bolt to 50 Nm (37 lb ft).

3. Tighten the generator bolts.

Tighten the generator bolts to 50 Nm (37 lb ft).
