33. Camshaft Position Actuator Removal - Left Side Intake

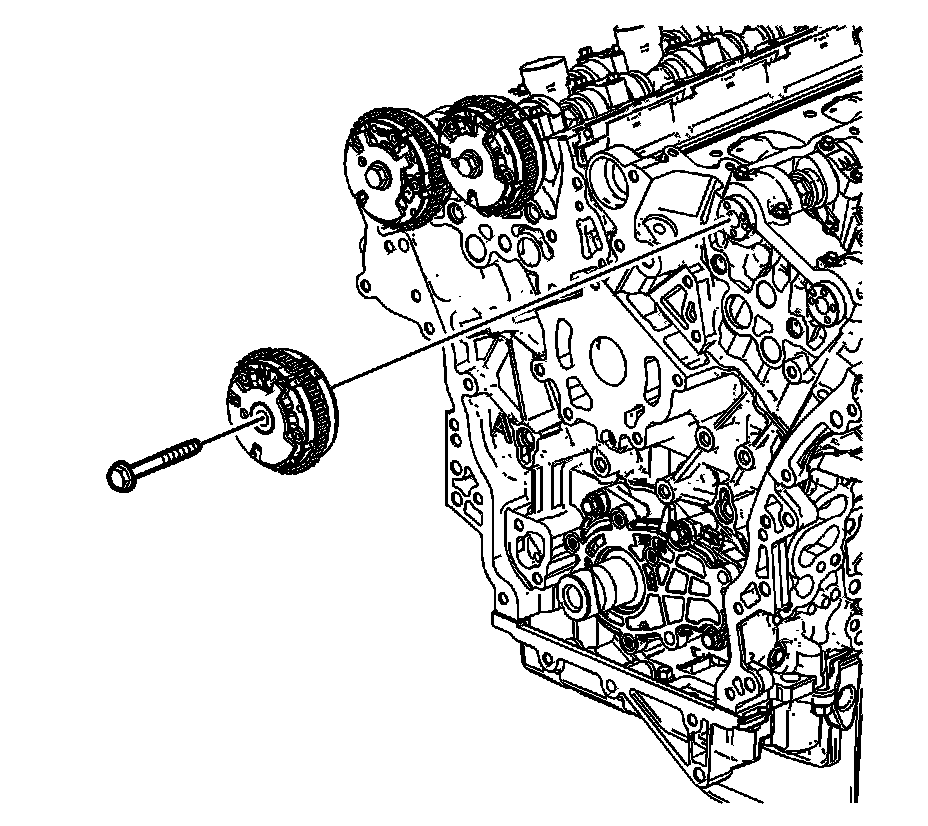

Camshaft Position Actuator Removal - Left Side Intake






Notice: Refer to Torque Reaction Against Timing Drive Chain Notice .

1. Use an open wrench on the hex cast into the camshaft in order to prevent engine rotation when loosening the camshaft position actuator bolt.
2. Remove the left intake camshaft position actuator bolt.
3. Remove the left intake camshaft position actuator.
