Exhaust Manifold Heat Shield Replacement - Left Side (LY7)

Exhaust Manifold Heat Shield Replacement - Left Side (LY7) (3.6L)

Removal Procedure
Caution: Refer to Exhaust Service Caution .
Caution: Refer to Protective Goggles and Glove Caution .





1. Remove the bank 2 sensor 1 heated oxygen sensor (HO2S). Refer to Heated Oxygen Sensor Replacement - Bank 2 Sensor 1 .

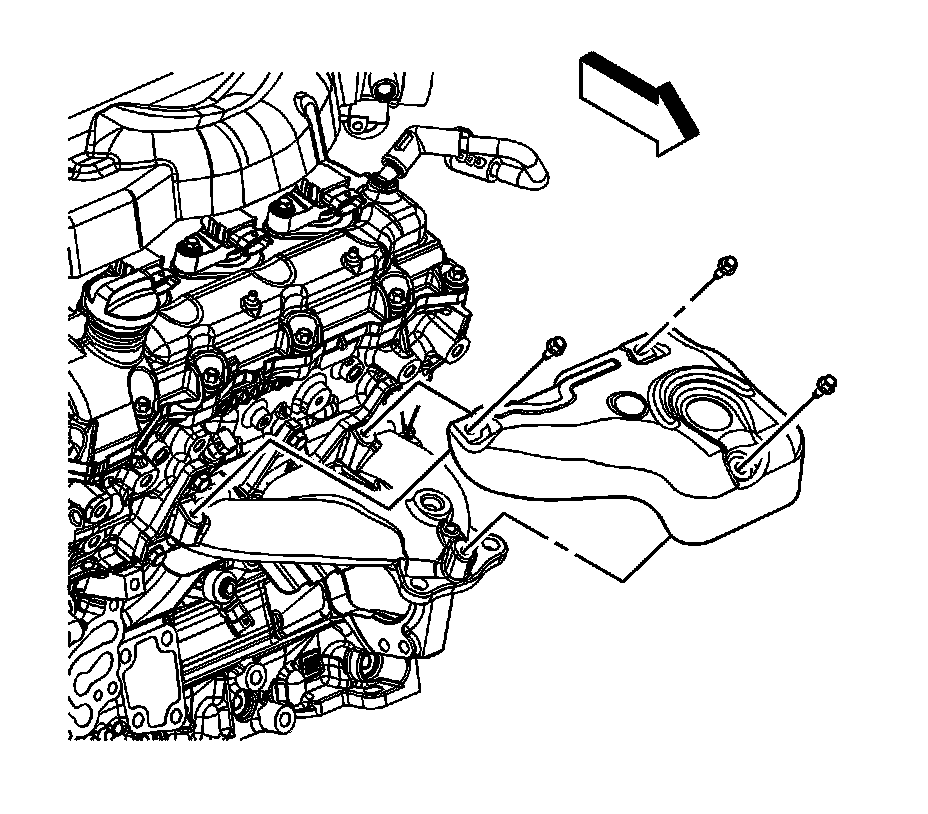

2. Remove the exhaust manifold heat shield bolts.
3. Remove the exhaust manifold heat shield.



Installation Procedure





1. Install the exhaust manifold heat shield.

Notice: Refer to Fastener Notice .

2. Install the exhaust manifold heat shield bolts.

Tighten the bolts to 10 N.m (89 lb in).

3. Install the bank 2 sensor 1 HO2S. Refer to Heated Oxygen Sensor Replacement - Bank 2 Sensor 1 .
