Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Rear)

Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Rear)

Removal Procedure





1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (Service and Repair) .
2. Remove the positive crankcase ventilation (PCV) fresh air tube from the air cleaner outlet duct.

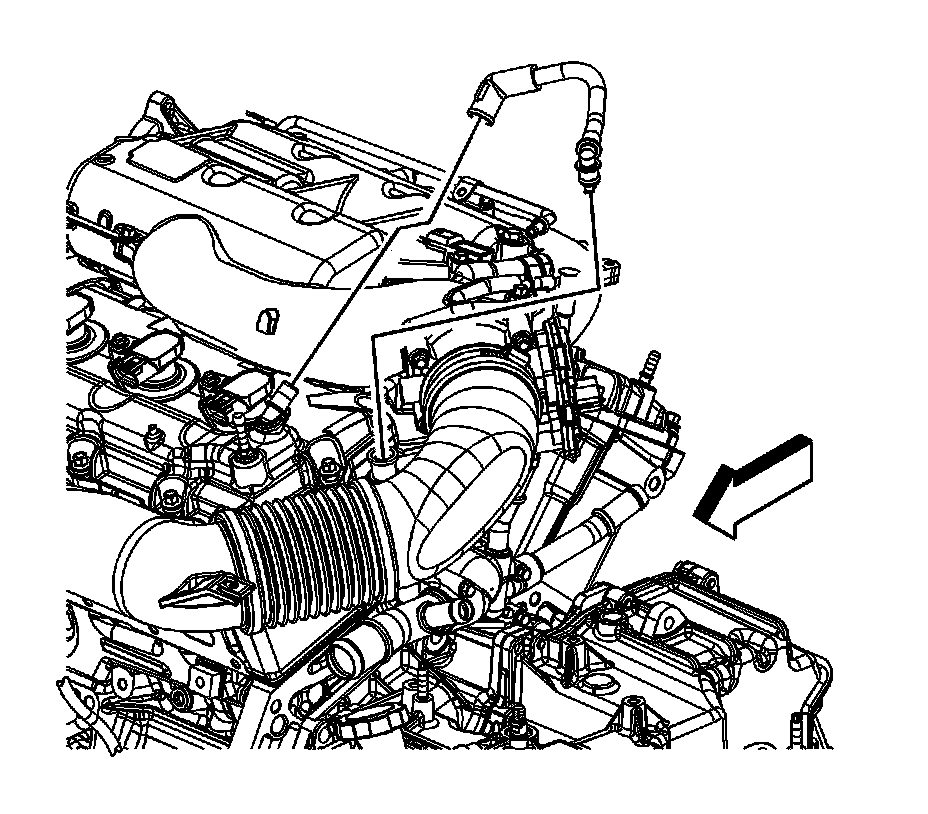

3. Remove the PCV fresh air tube (1) from the camshaft cover fitting.



Installation Procedure





1. Install the PCV fresh air tube (1) to the camshaft cover fitting.
2. Install the PCV fresh air tube to the air cleaner outlet duct.
3. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (Service and Repair) .
