3-5-Reverse and 4-5-6 Clutch Housing Assemble



3-5-Reverse and 4-5-6 Clutch Housing Assemble

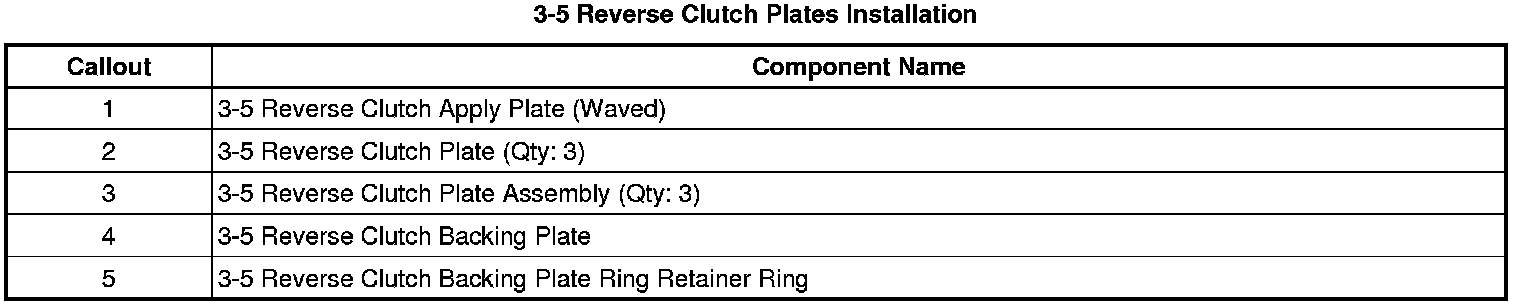

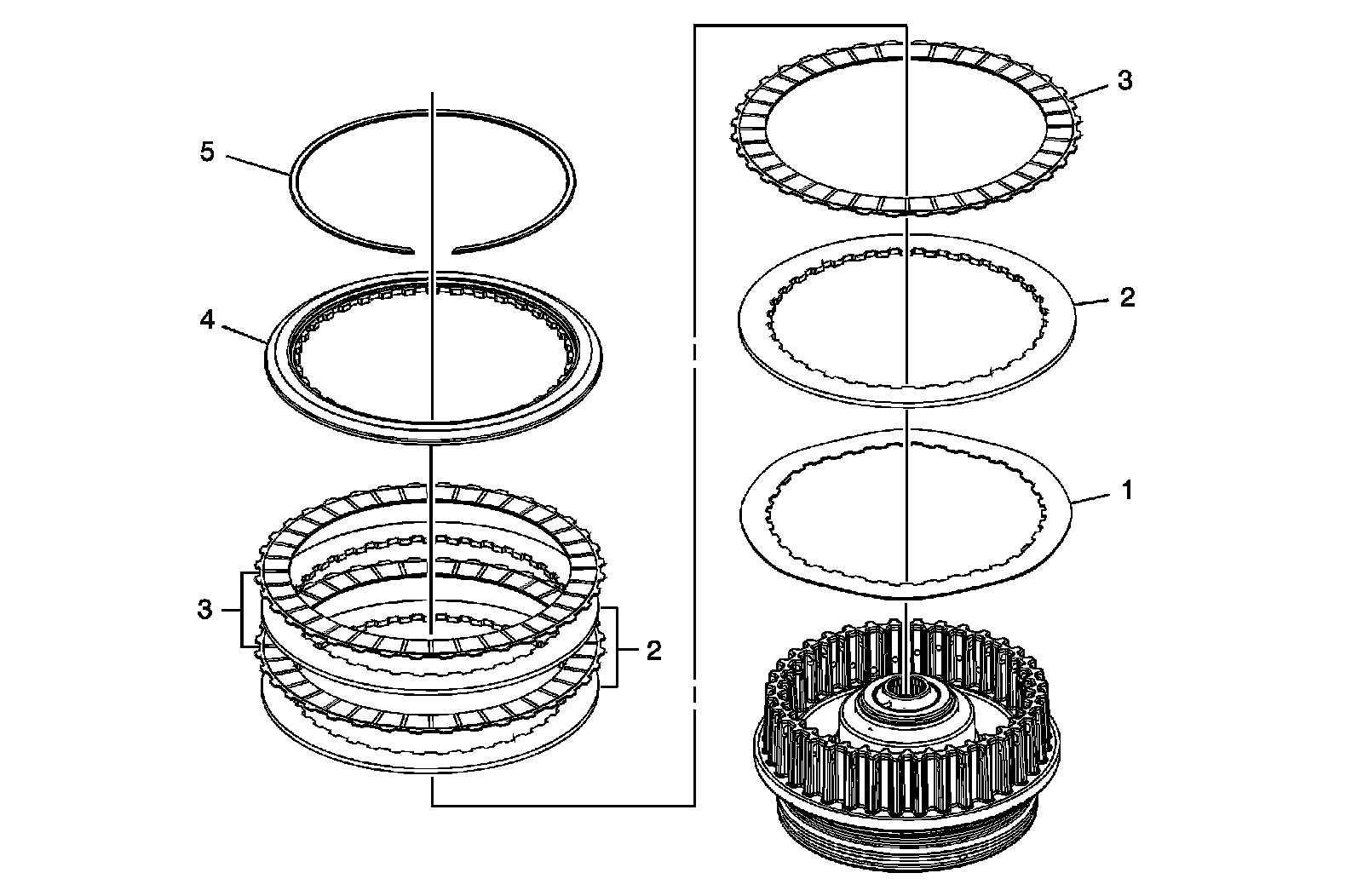

3-5 Reverse Clutch Plates Installation

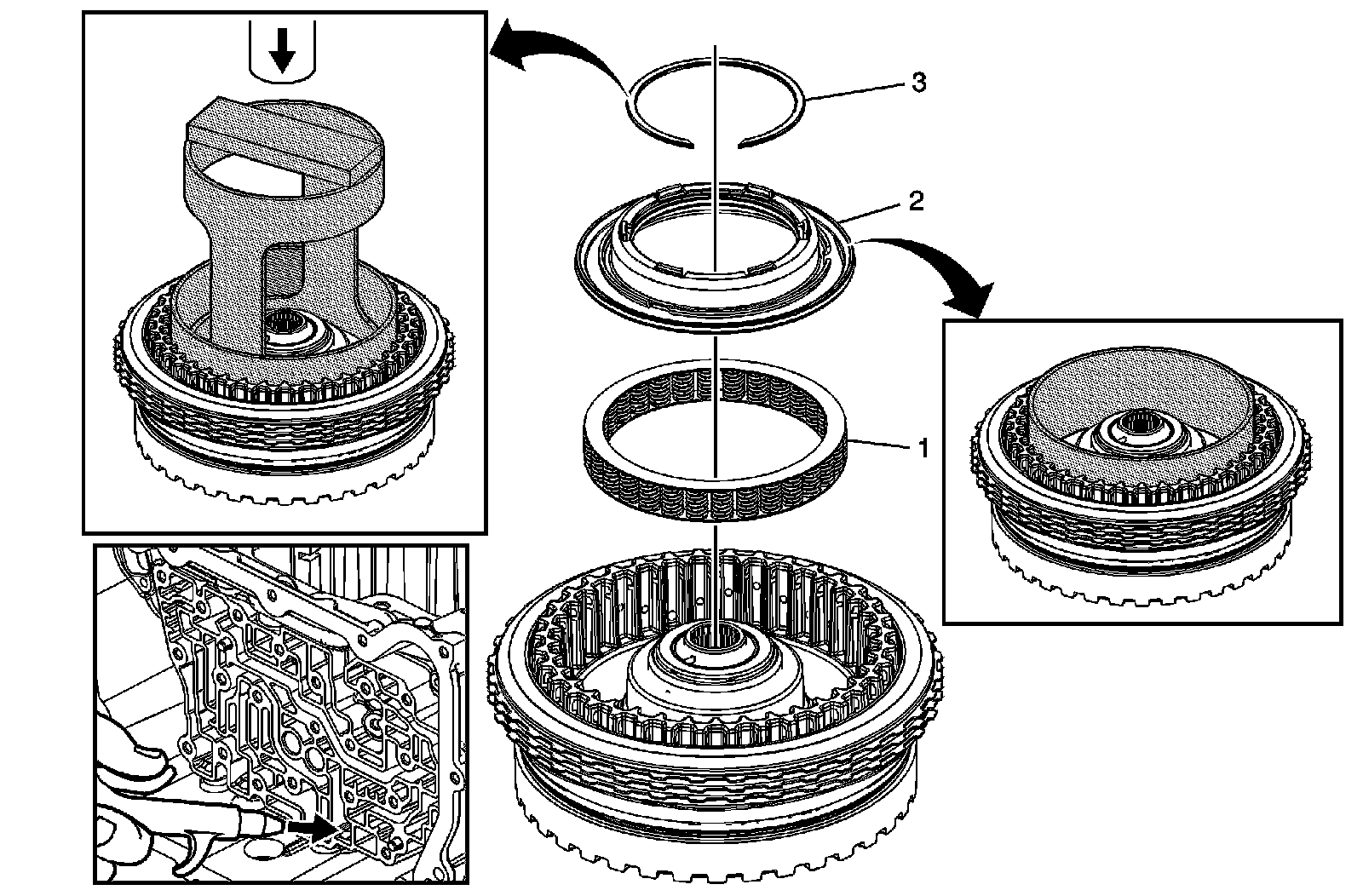

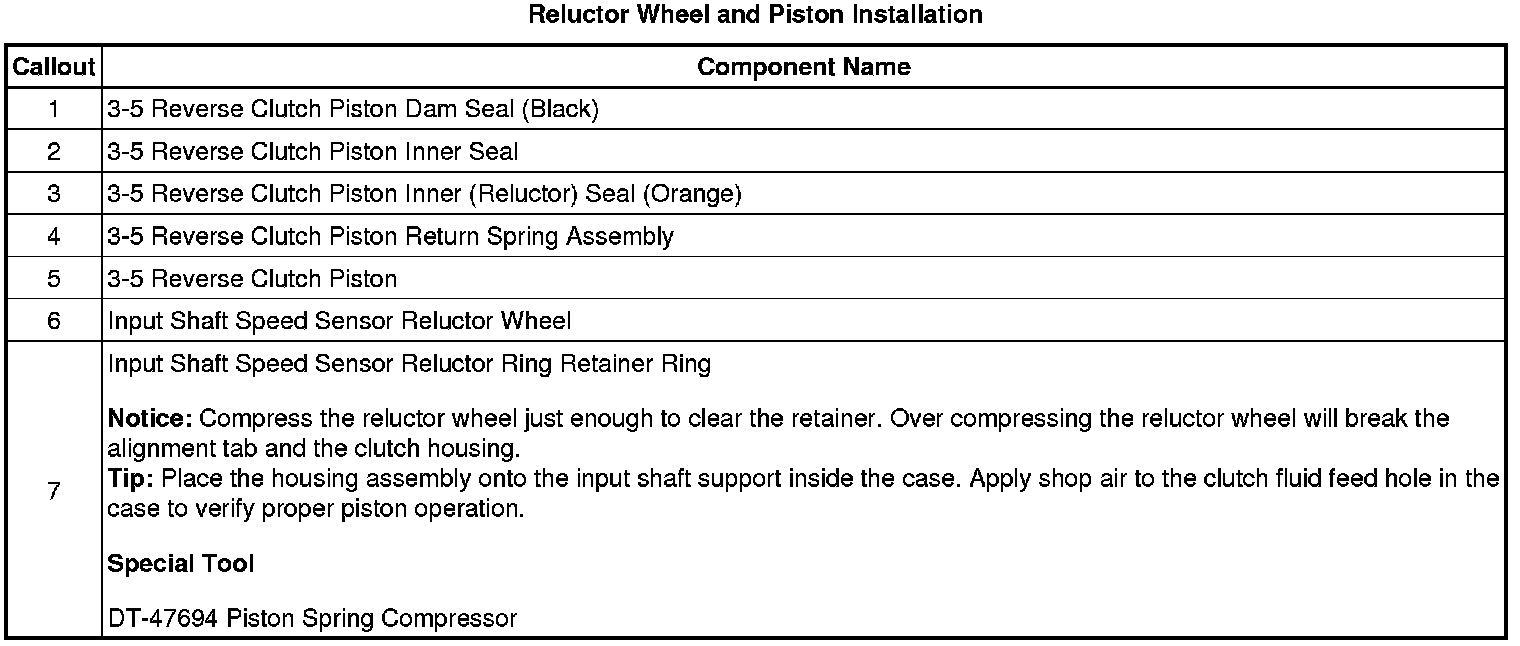

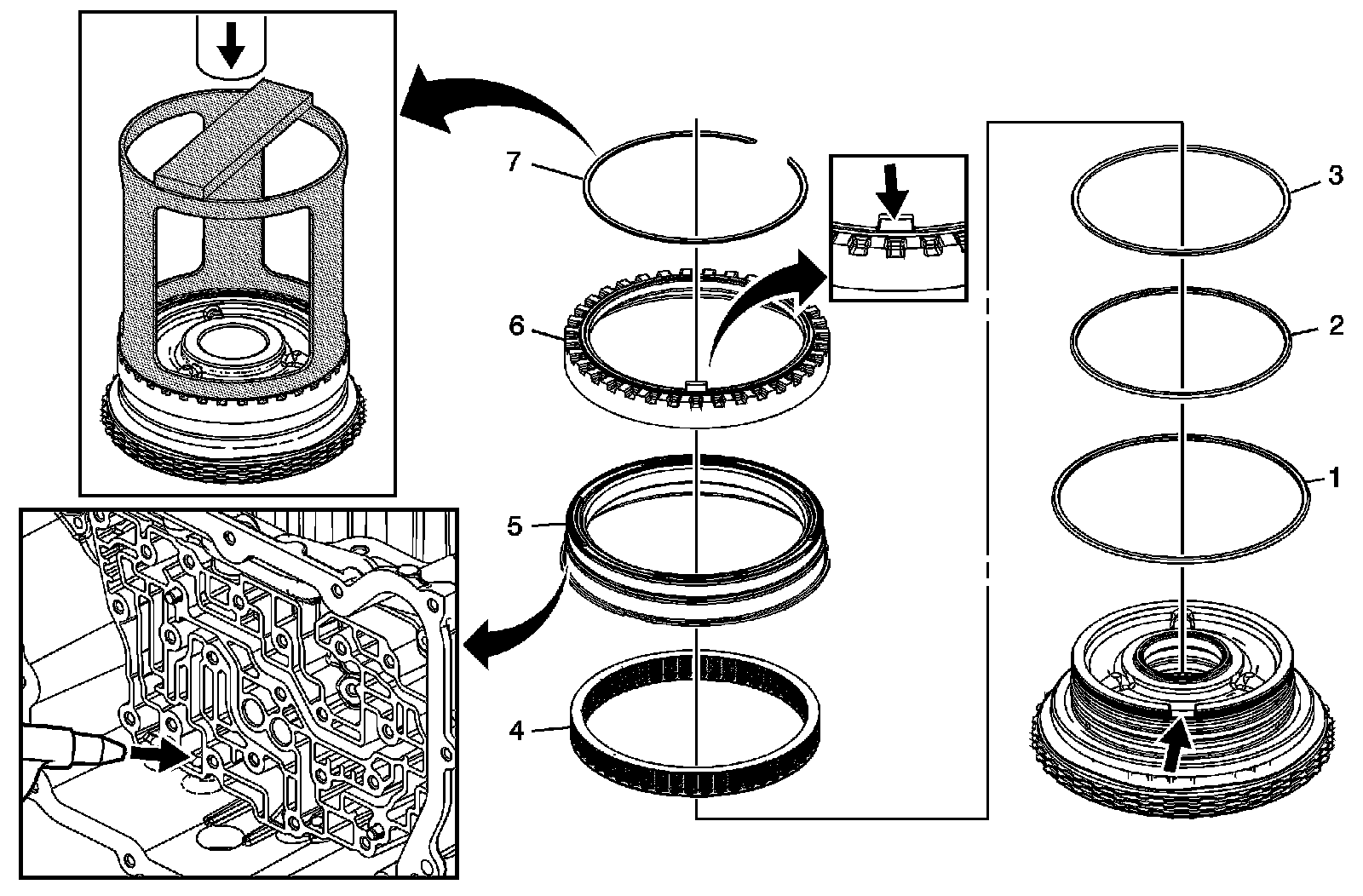

Reluctor Wheel and Piston Installation

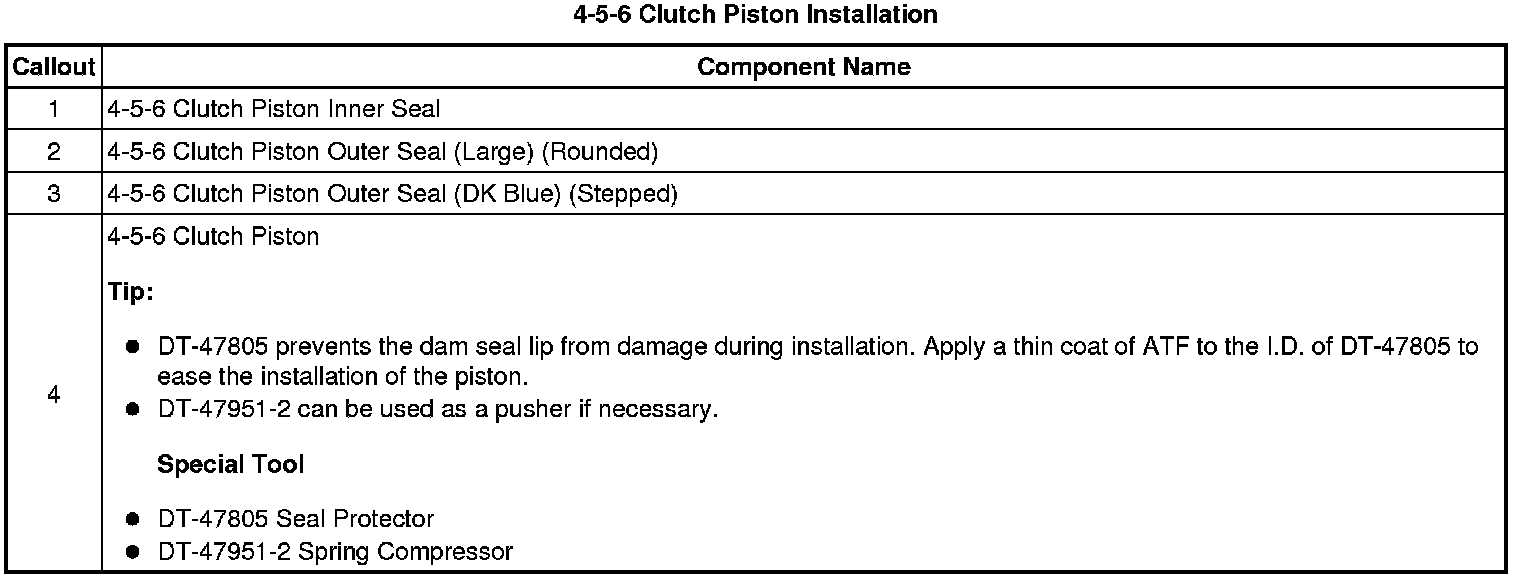

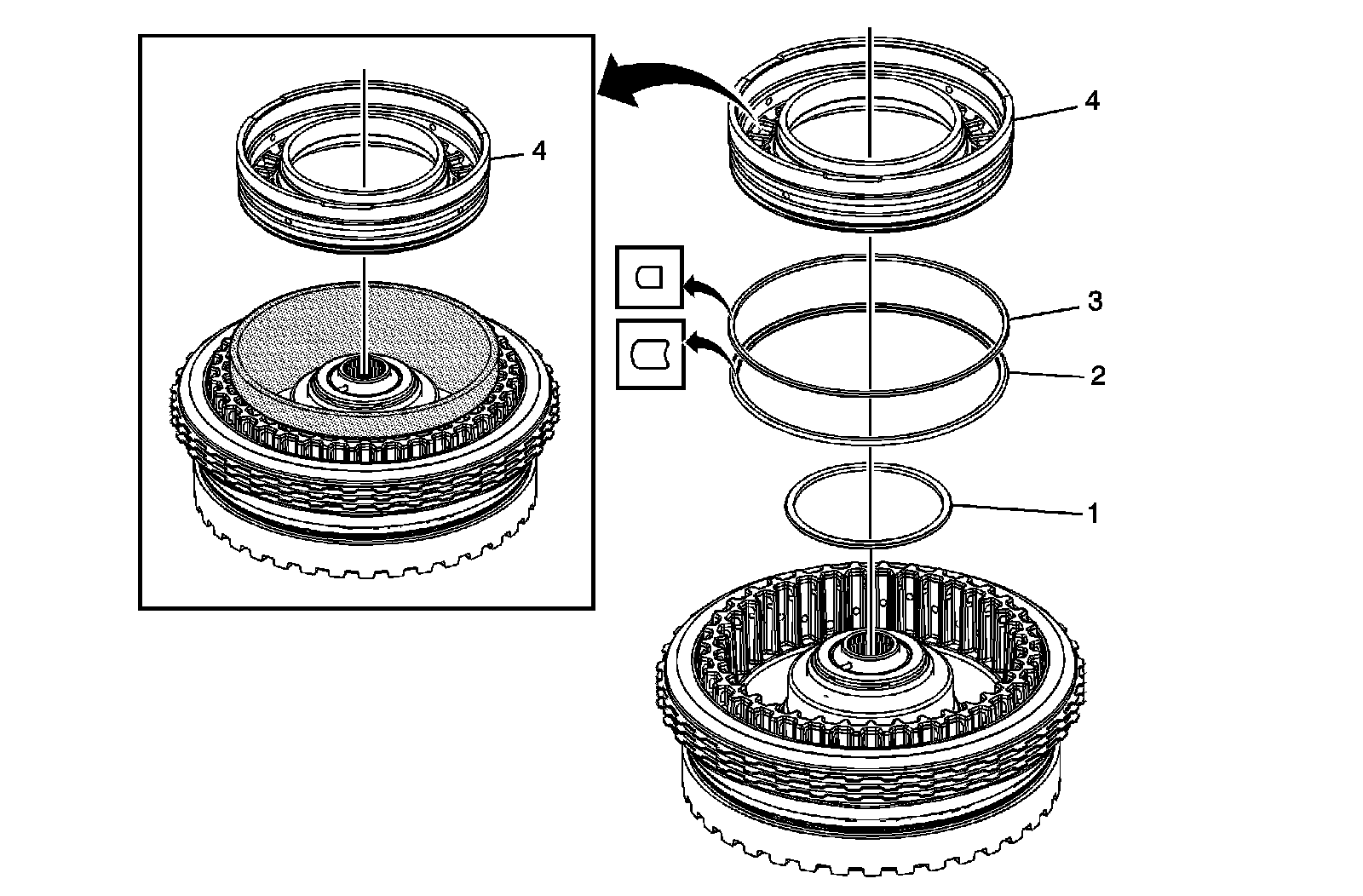

4-5-6 Clutch Piston Installation

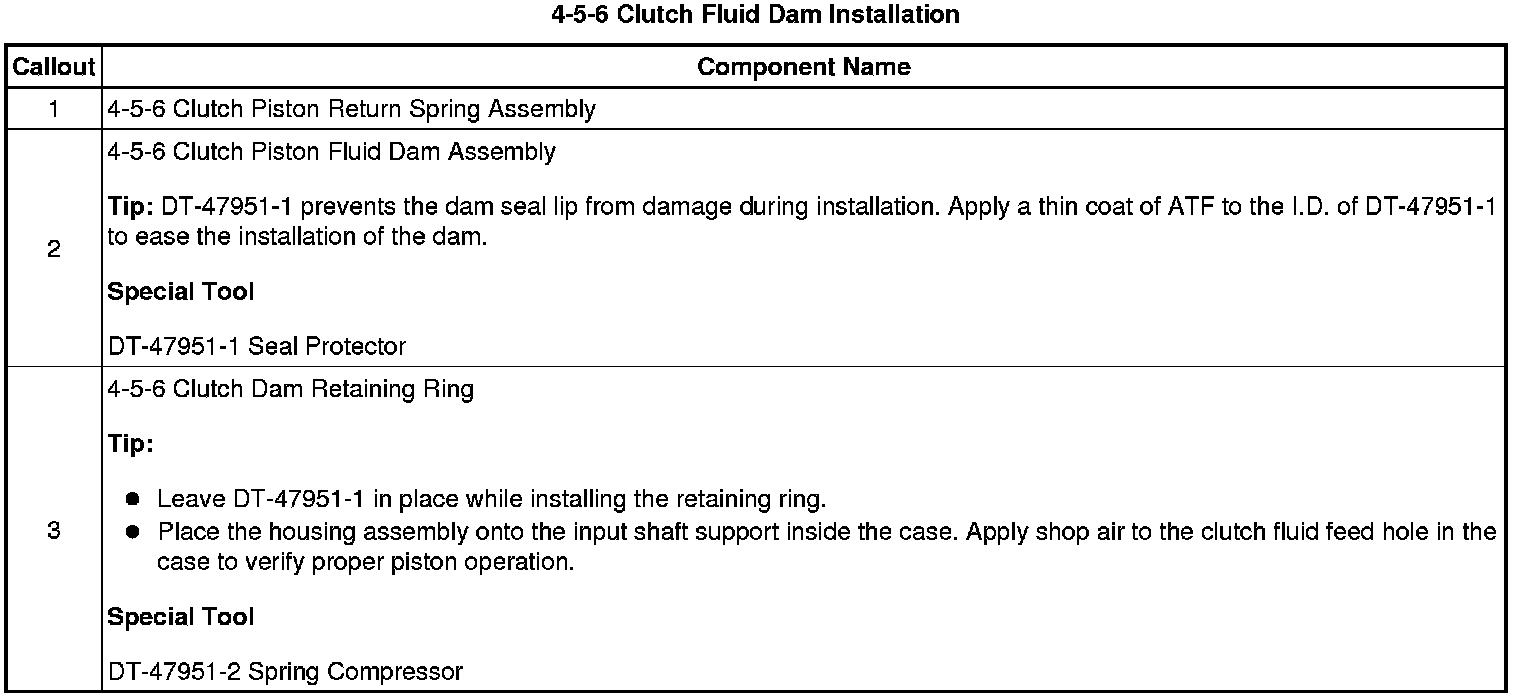

4-5-6 Clutch Fluid Dam Installation

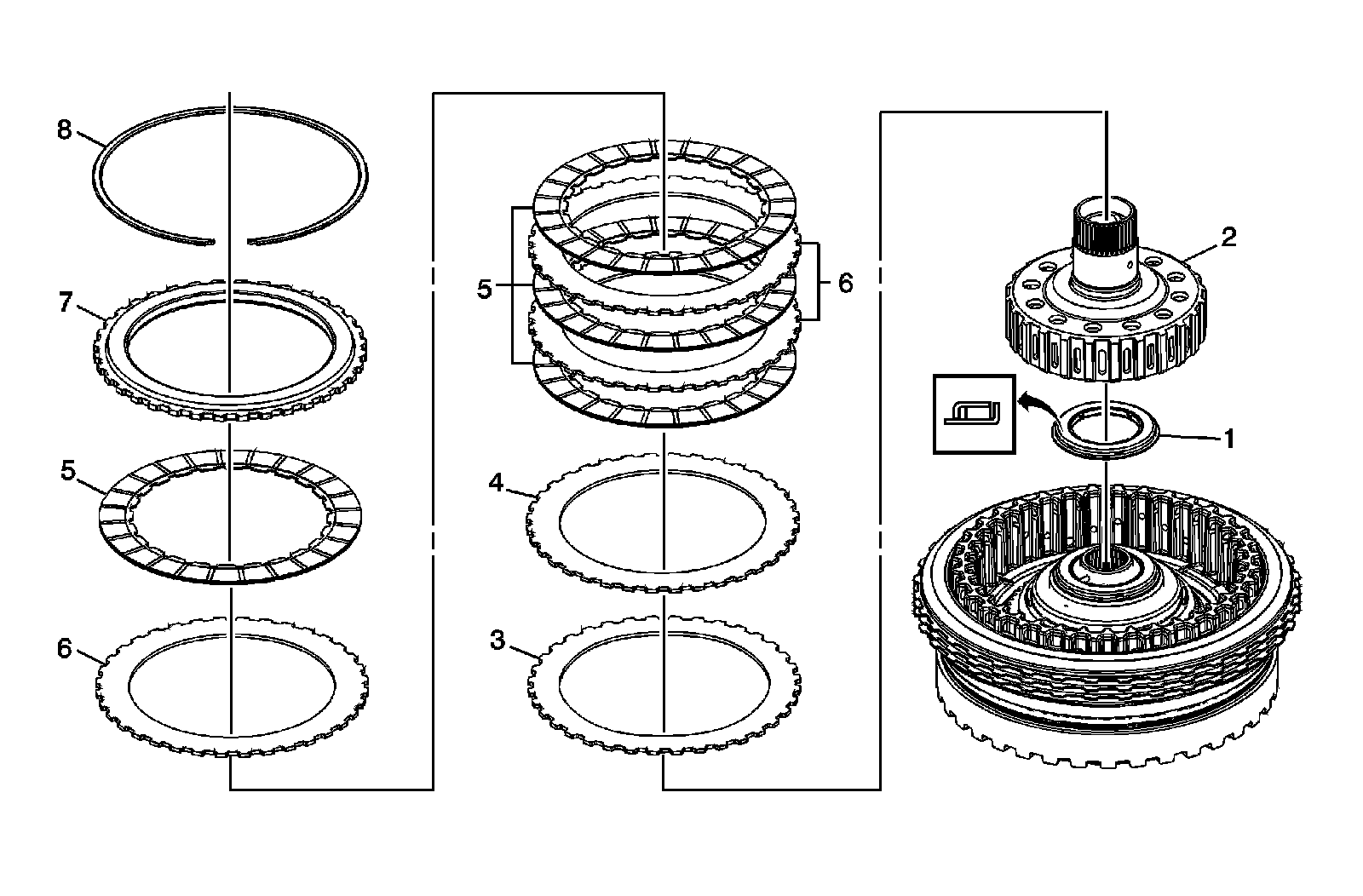

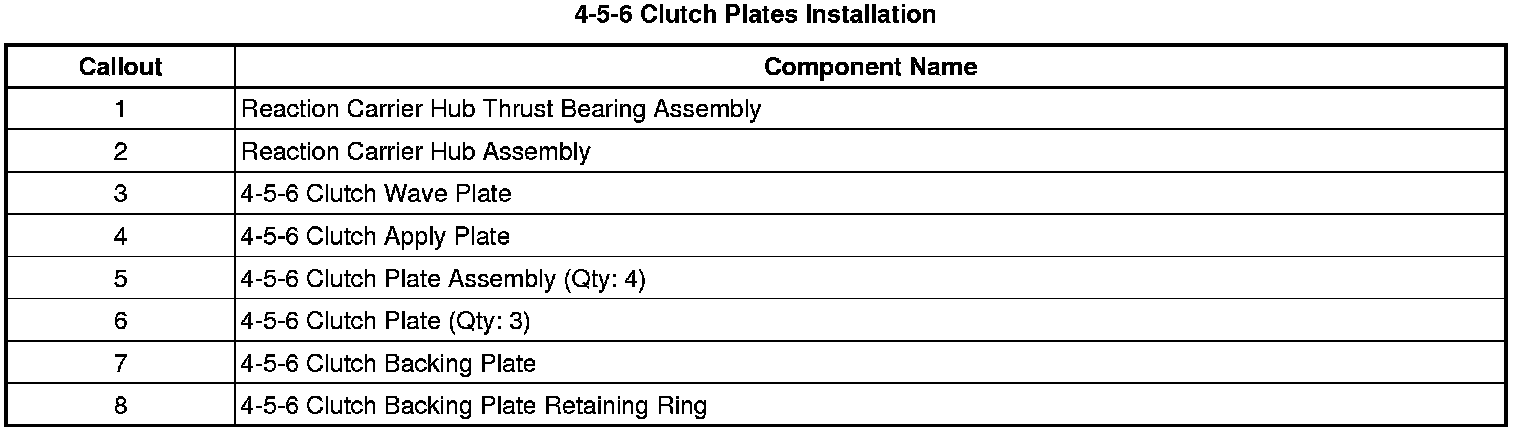

4-5-6 Clutch Plates Installation

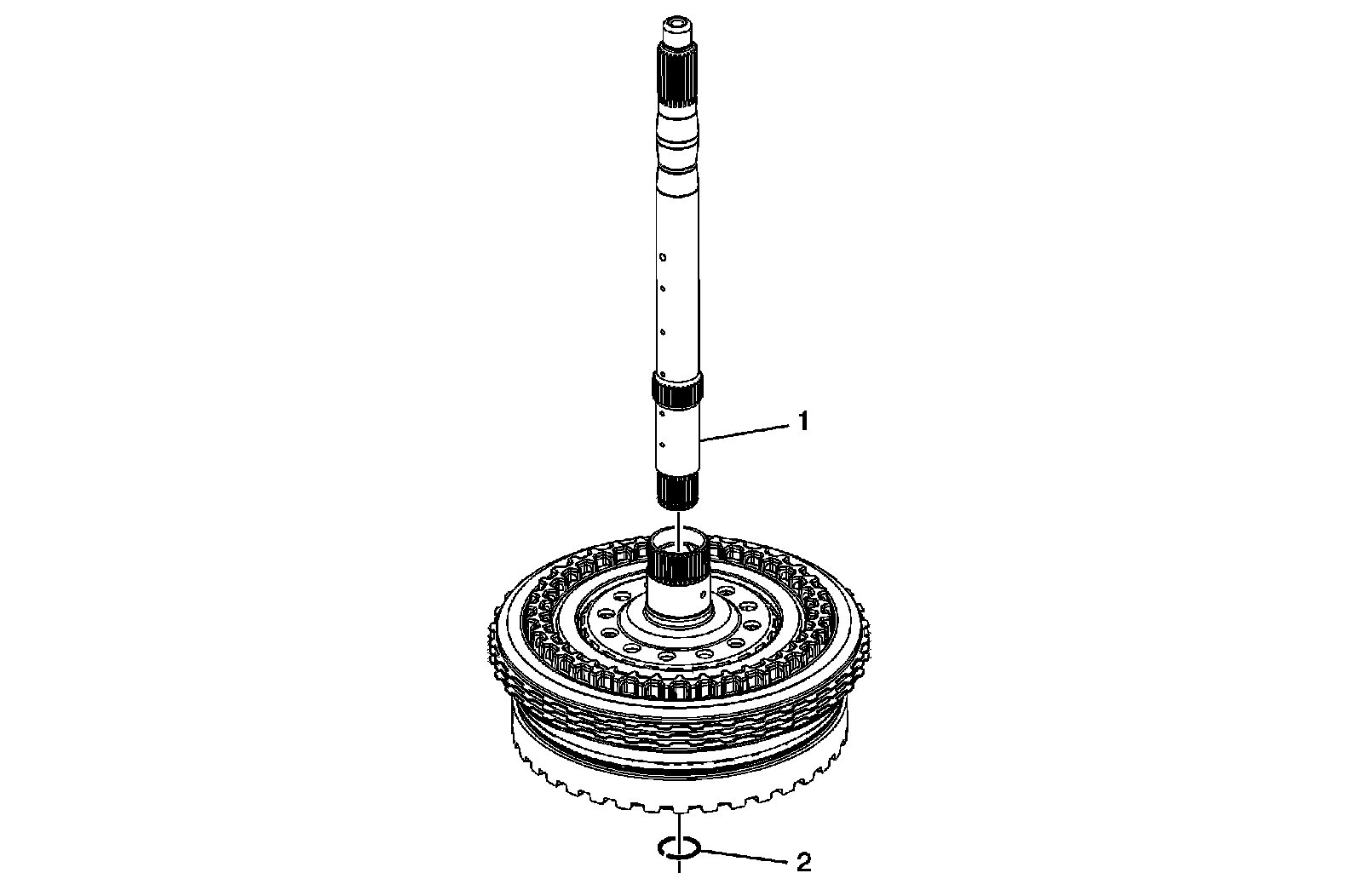

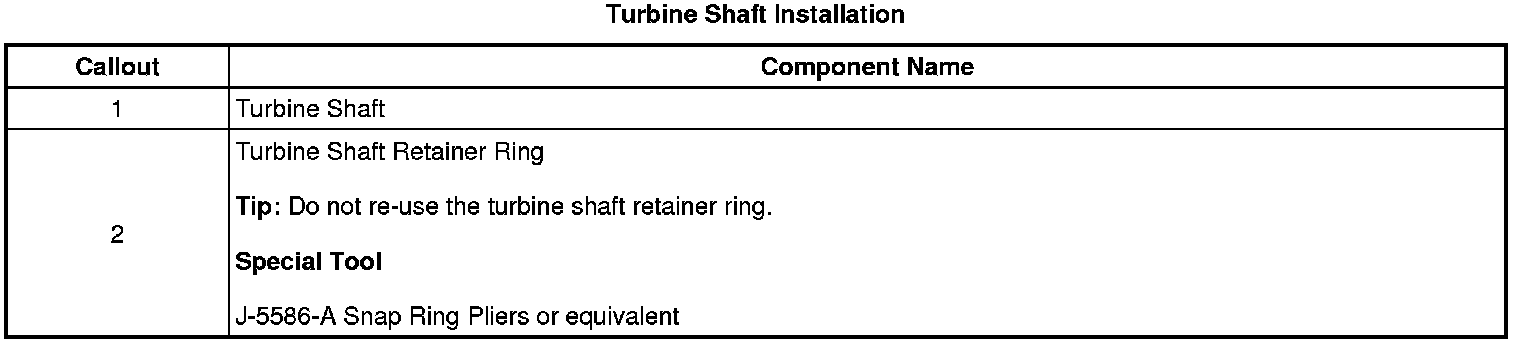

Turbine Shaft Installation
