Air Bypass Valve Solenoid: Diagrams




Component Connector End Views

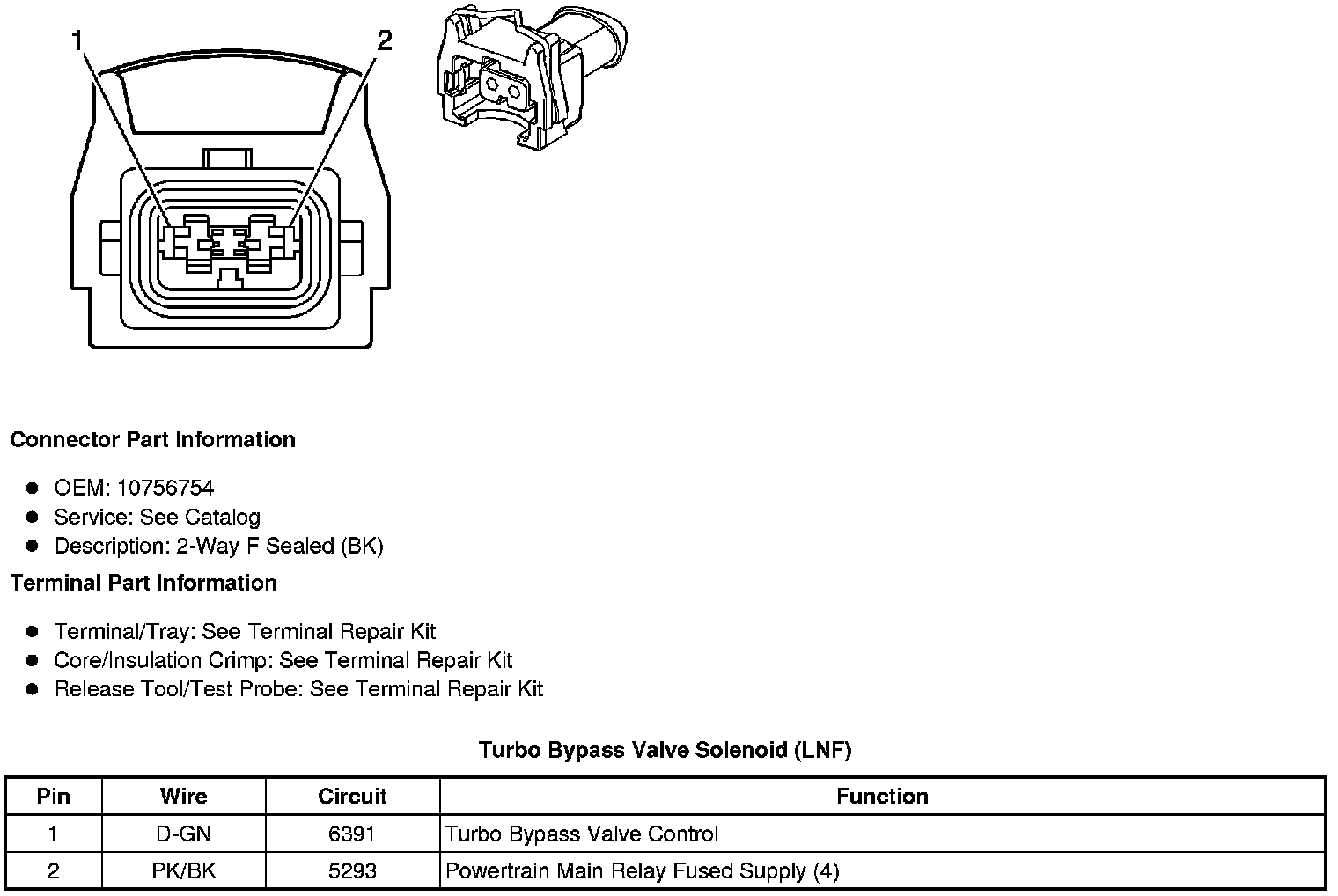

Turbo Bypass Valve Solenoid (LNF)
