Engine Control Module




Component Connector End Views

Engine Control Module (ECM) X1 (LAP)









Engine Control Module (ECM) X1 (LNF)

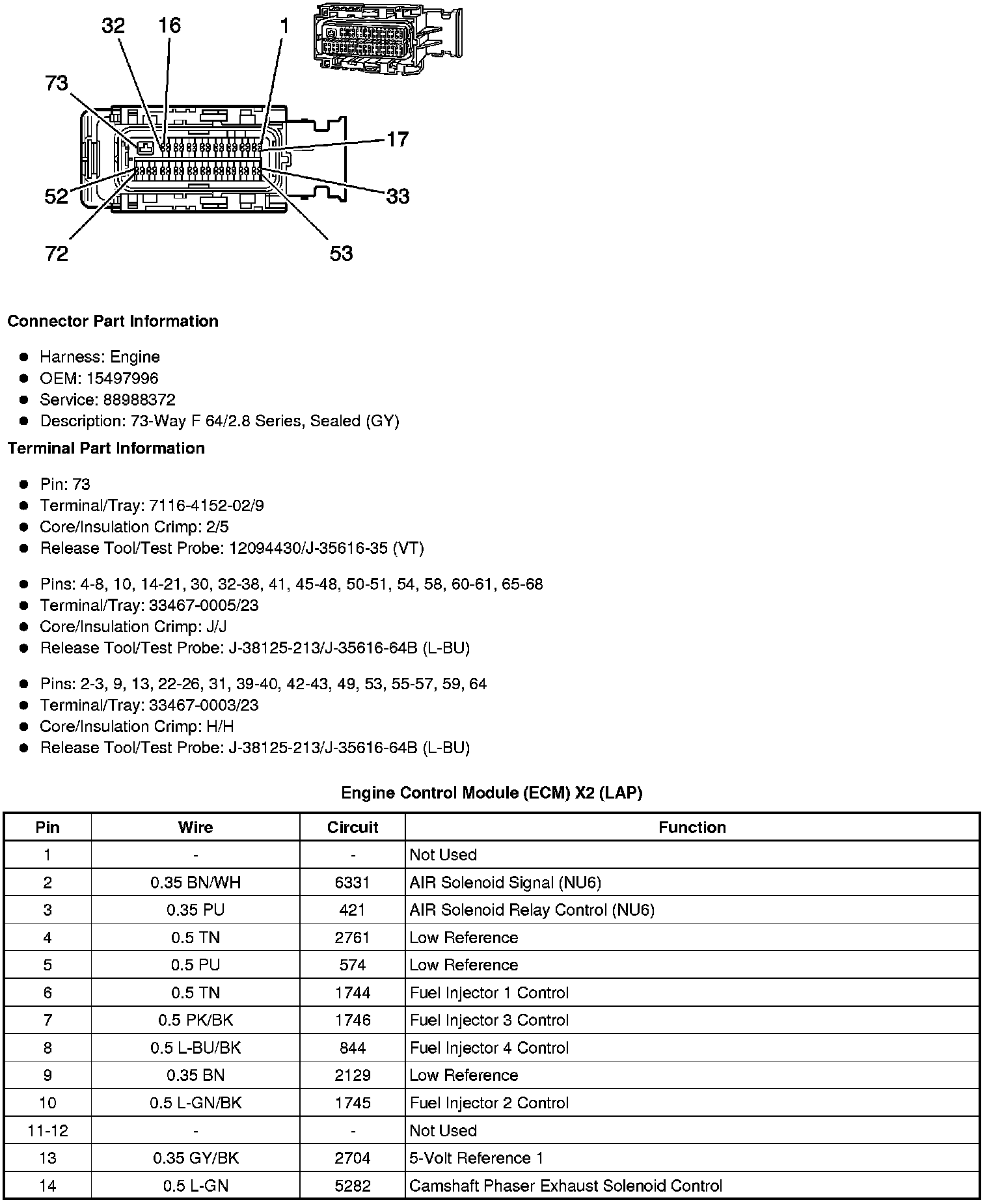

Engine Control Module (ECM) X2 (LAP)













Engine Control Module (ECM) X2 (LNF)
