Front Bumper Lower Fascia Replacement

Front Bumper Lower Fascia Replacement











2.Remove the front bumper lower fascia center grille. Refer to Front Bumper Lower Fascia Center Grille Replacement .

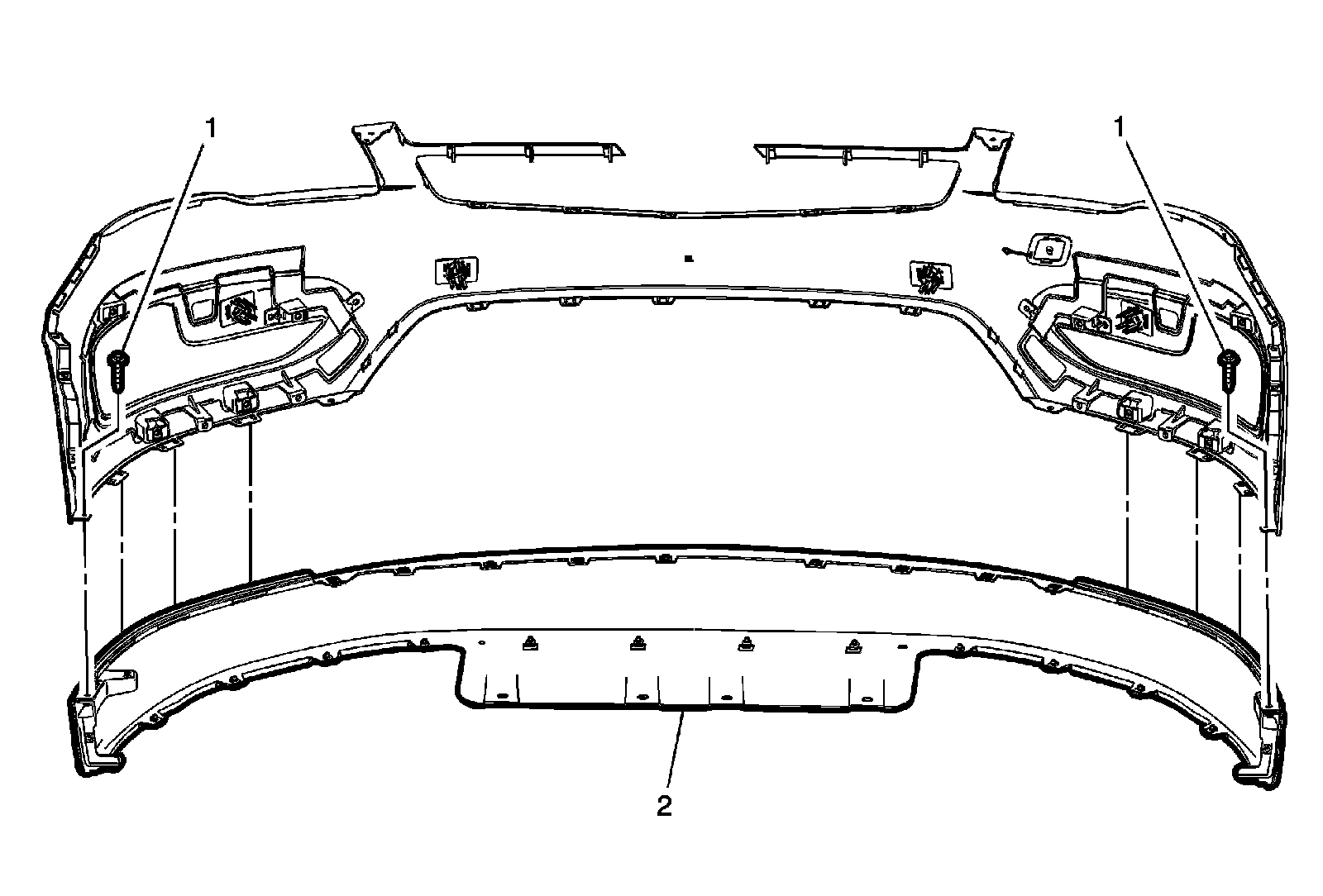

1Front Bumper Lower Fascia Screw (Qty: 2)
Caution:Refer to Fastener Caution .

Procedure

1.Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the upper fascia at the same time to gradually remove the lower fascia from the upper fascia.

2.Transfer parts as needed.
Tighten 2.5 N �m (22 lb in)

2Front Bumper Lower Fascia
