Rear Bumper Fascia Replacement

Rear Bumper Fascia Replacement

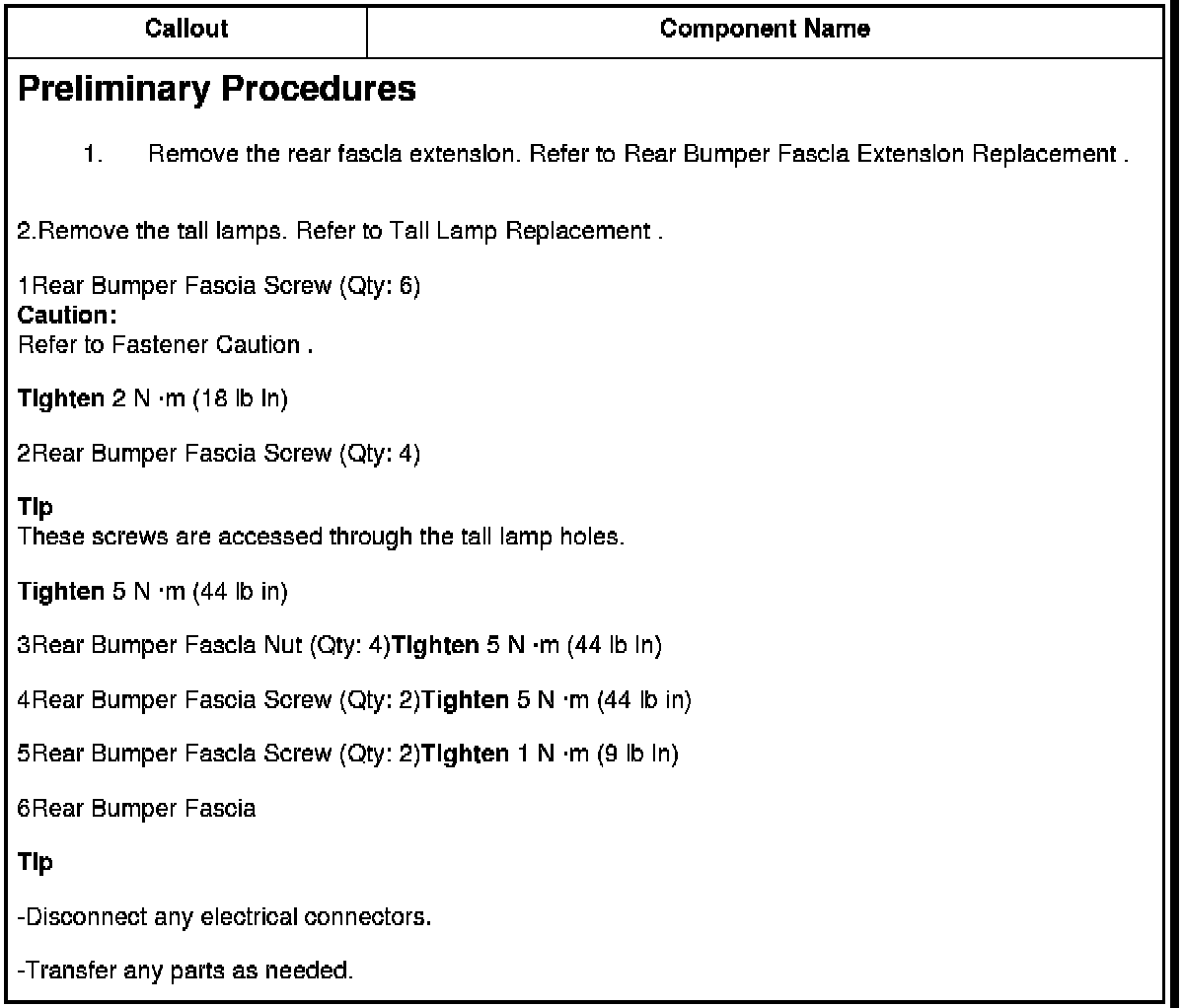

2.Remove the tail lamps. Refer to Tail Lamp Replacement .

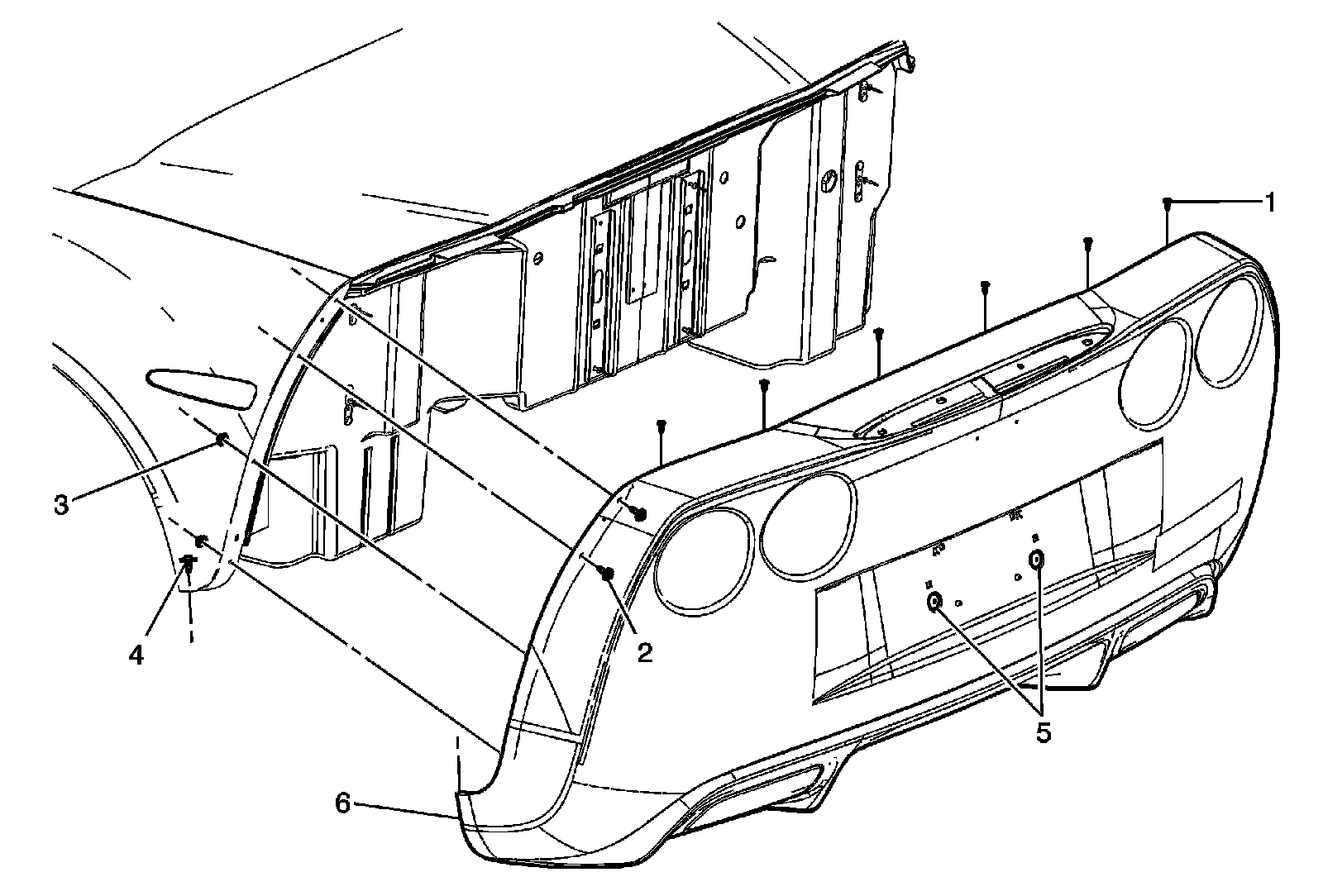

1Rear Bumper Fascia Screw (Qty: 6)
Caution:Refer to Fastener Caution .
Tighten 2 N �m (18 lb in)

2Rear Bumper Fascia Screw (Qty: 4)
Tip These screws are accessed through the tail lamp holes.
Tighten 5 N �m (44 lb in)

3Rear Bumper Fascia Nut (Qty: 4)Tighten 5 N �m (44 lb in)

4Rear Bumper Fascia Screw (Qty: 2)Tighten 5 N �m (44 lb in)

5Rear Bumper Fascia Screw (Qty: 2)Tighten 1 N �m (9 lb in)

6Rear Bumper Fascia
Tip
-Disconnect any electrical connectors.

-Transfer any parts as needed.
