Rear Brake Caliper Cooling Air Scoop Replacement

Rear Brake Caliper Cooling Air Scoop Replacement

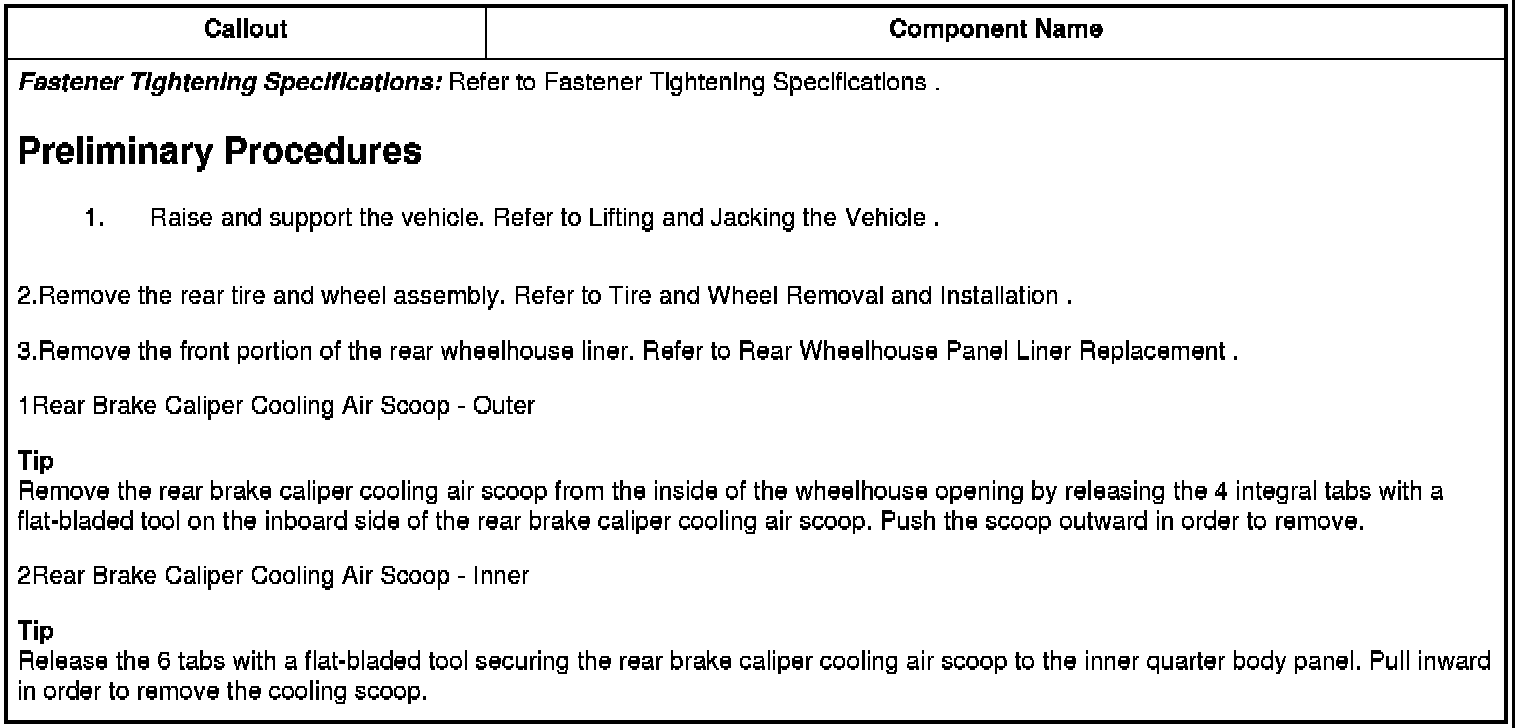

2.Remove the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

3.Remove the front portion of the rear wheelhouse liner. Refer to Rear Wheelhouse Panel Liner Replacement Rear Wheelhouse Panel Liner Replacement .

1Rear Brake Caliper Cooling Air Scoop - Outer
Tip Remove the rear brake caliper cooling air scoop from the inside of the wheelhouse opening by releasing the 4 integral tabs with a flat-bladed tool on the inboard side of the rear brake caliper cooling air scoop. Push the scoop outward in order to remove.

2Rear Brake Caliper Cooling Air Scoop - Inner
Tip Release the 6 tabs with a flat-bladed tool securing the rear brake caliper cooling air scoop to the inner quarter body panel. Pull inward in order to remove the cooling scoop.
