Folding Top Stowage Compartment Lid Latch Pulldown Actuator (CM7)

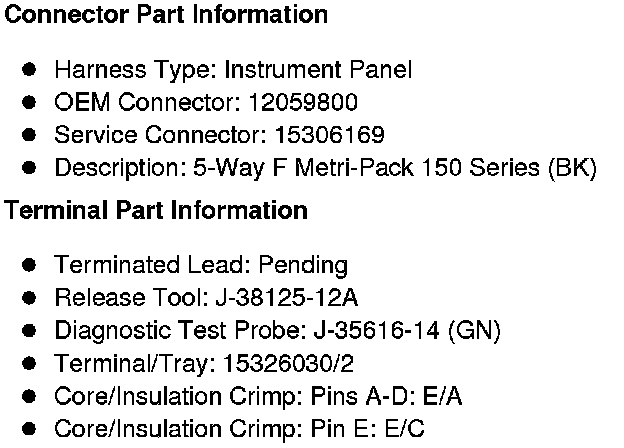

Component Connector End Views

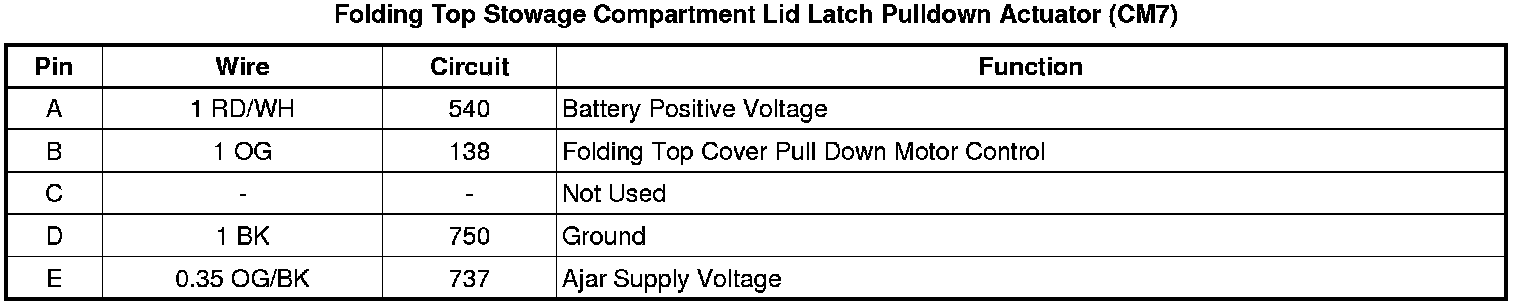

Folding Top Stowage Compartment Lid Latch Pulldown Actuator (CM7)
