Outside Rearview Mirror - Passenger X2 (DD0)
Outside Rearview Mirror - Passenger X2 (DD0)

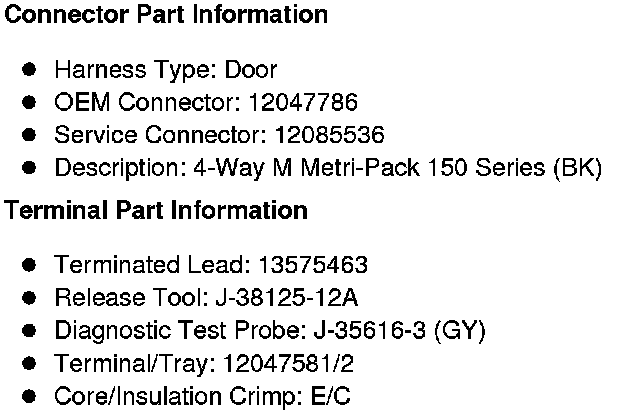

Component Connector End Views

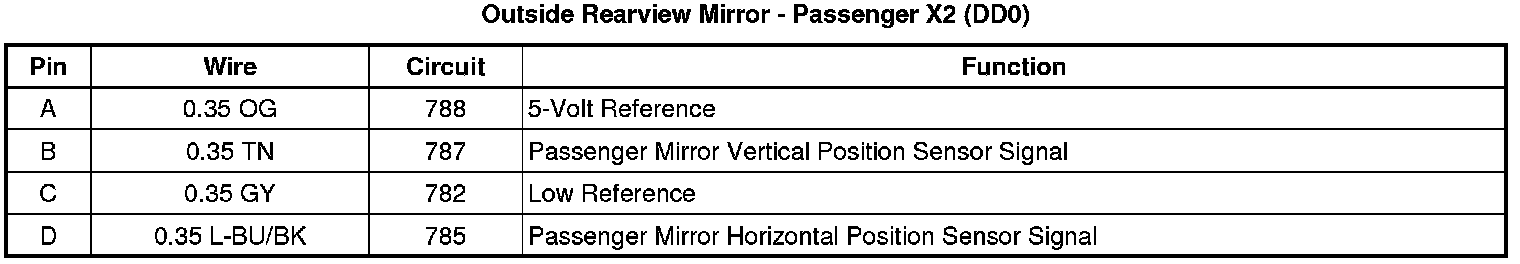

Outside Rearview Mirror - Passenger X2 (DD0)
