X277

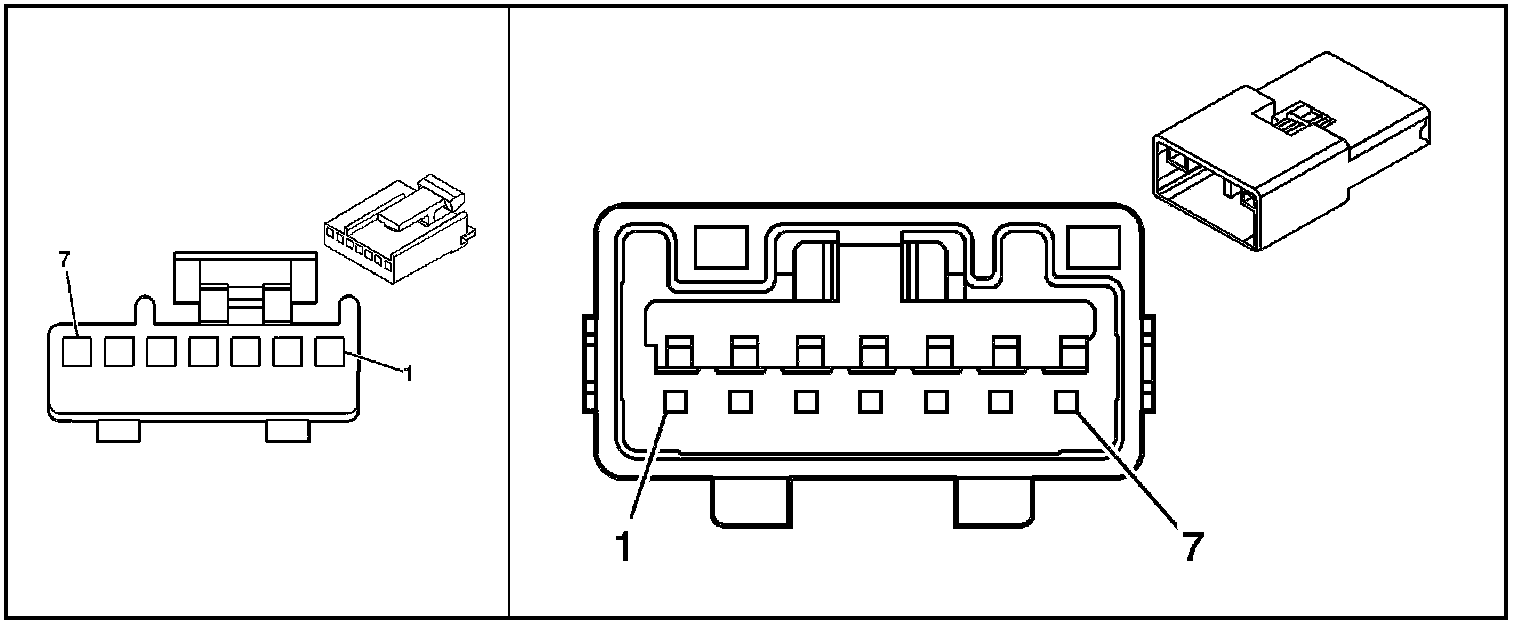

Inline Harness Connector End Views

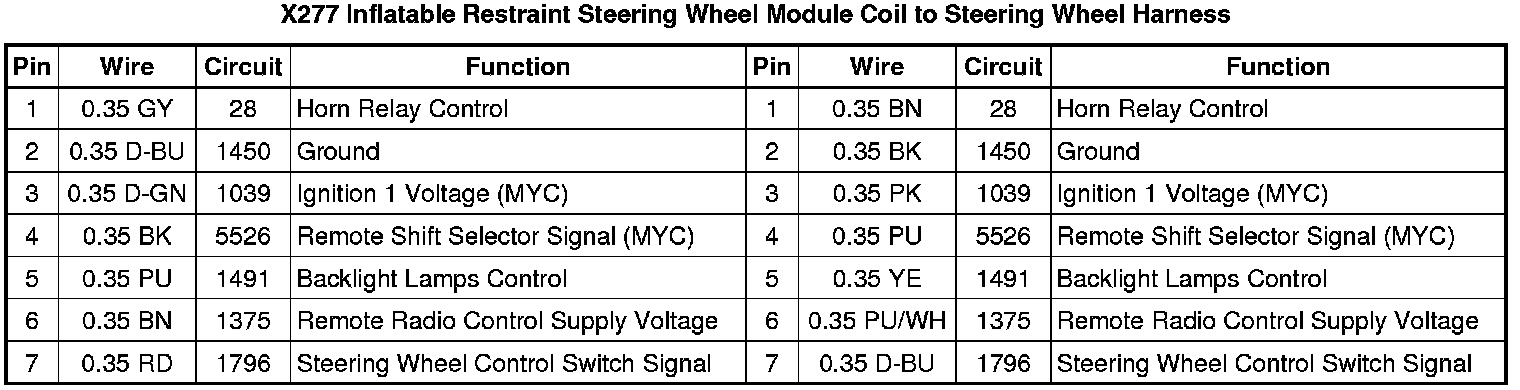

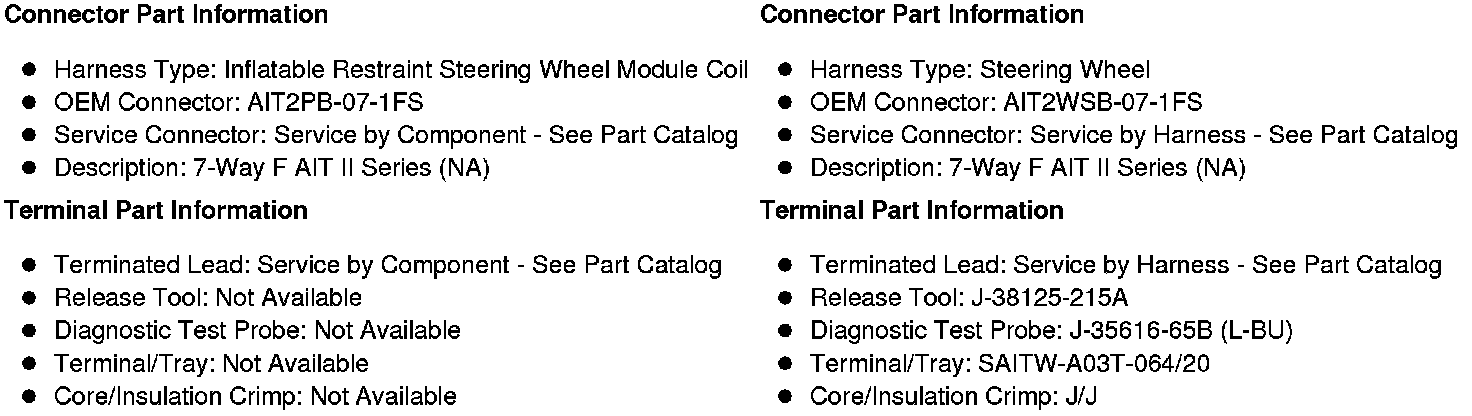

X277 Inflatable Restraint Steering Wheel Module Coil to Steering Wheel Harness
