X279
X279

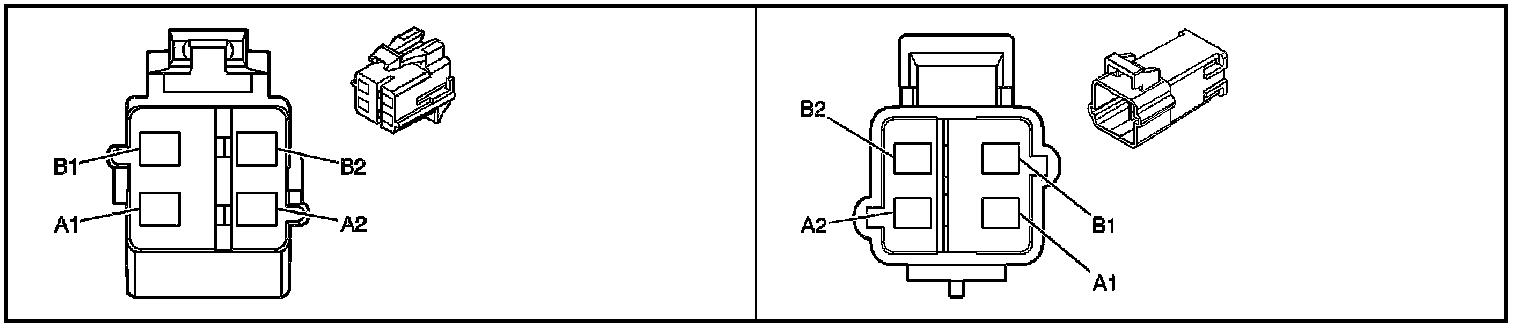

Inline Harness Connector End Views

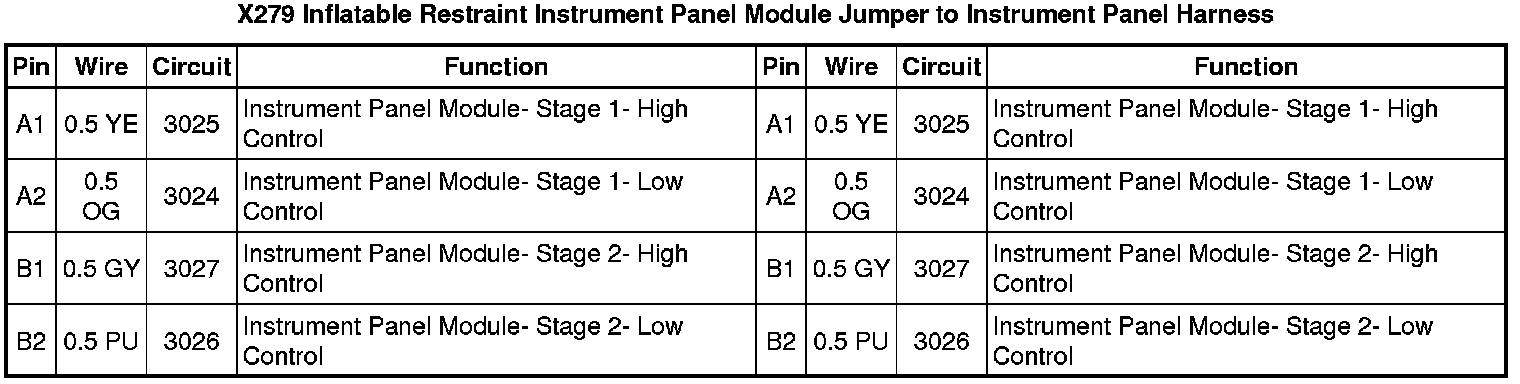

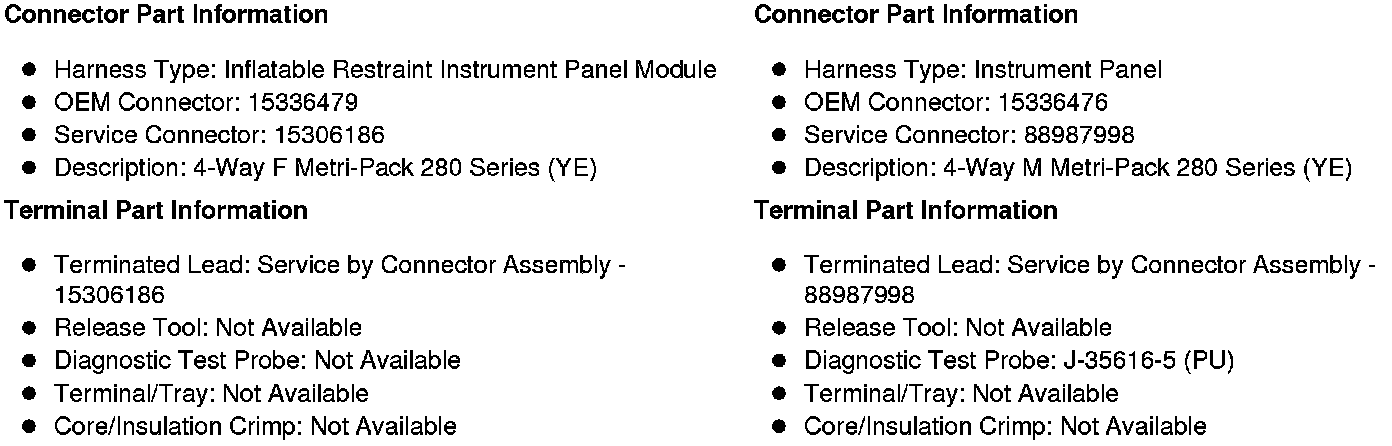

X279 Inflatable Restraint Instrument Panel Module Jumper to Instrument Panel Harness
