X290

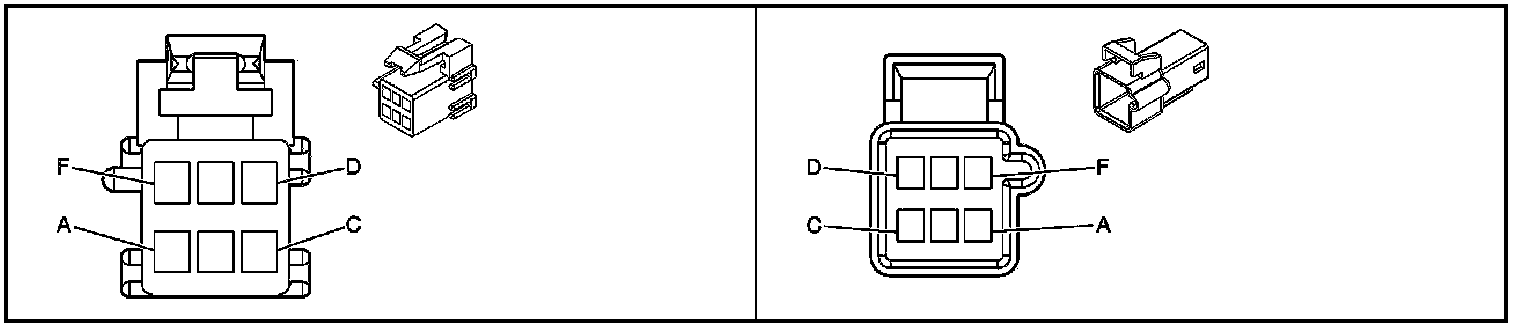

Inline Harness Connector End Views

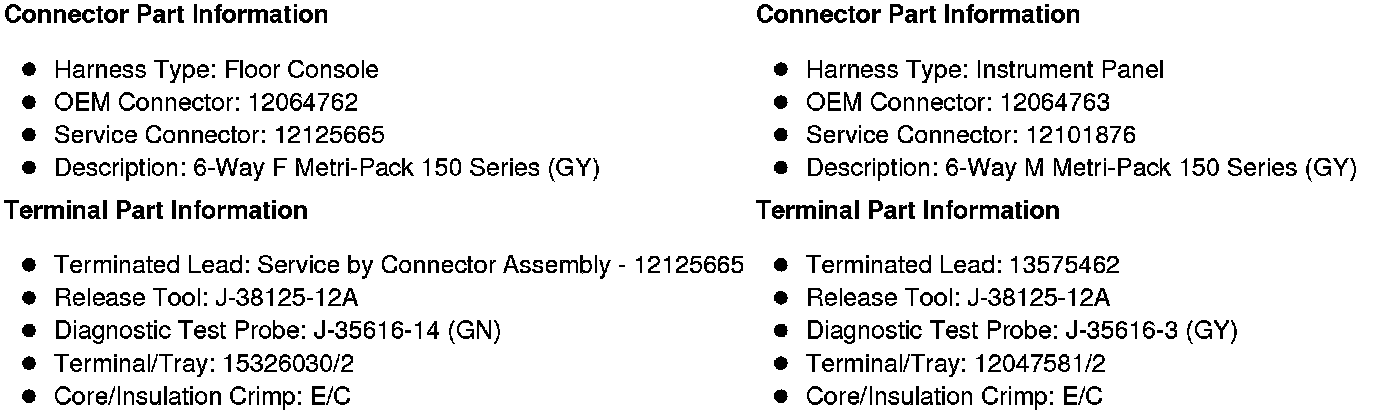

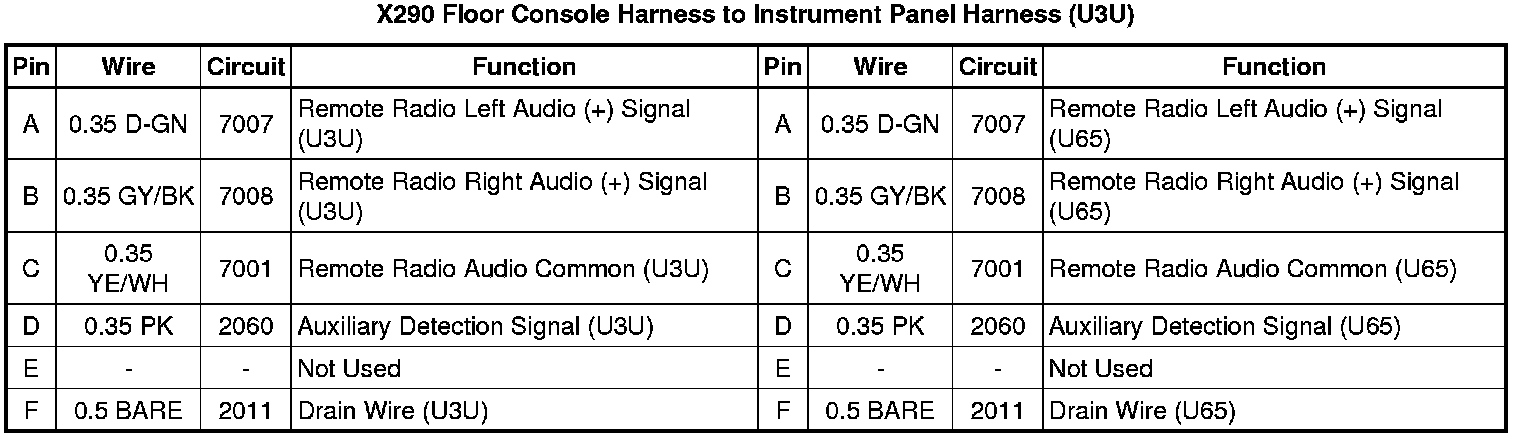

X290 Floor Console Harness to Instrument Panel Harness (U3U)
