X379
X379

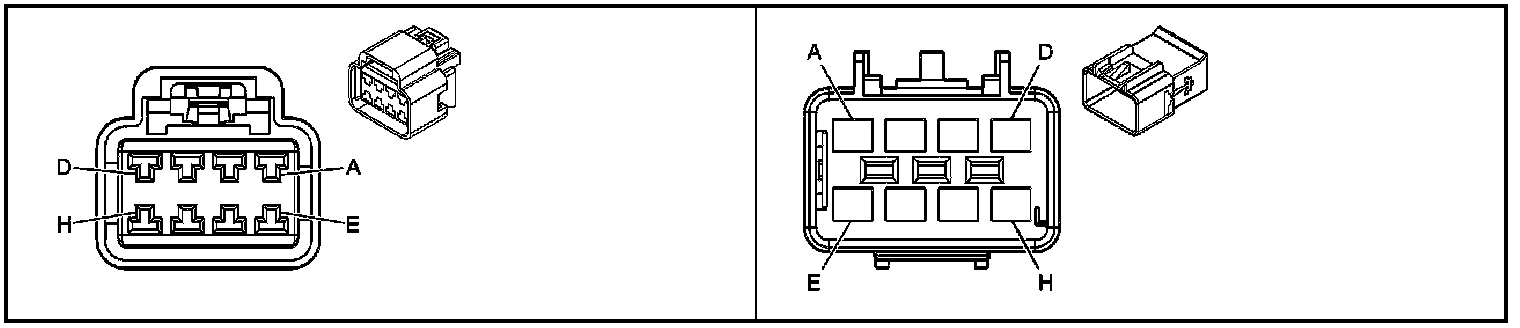

Inline Harness Connector End Views

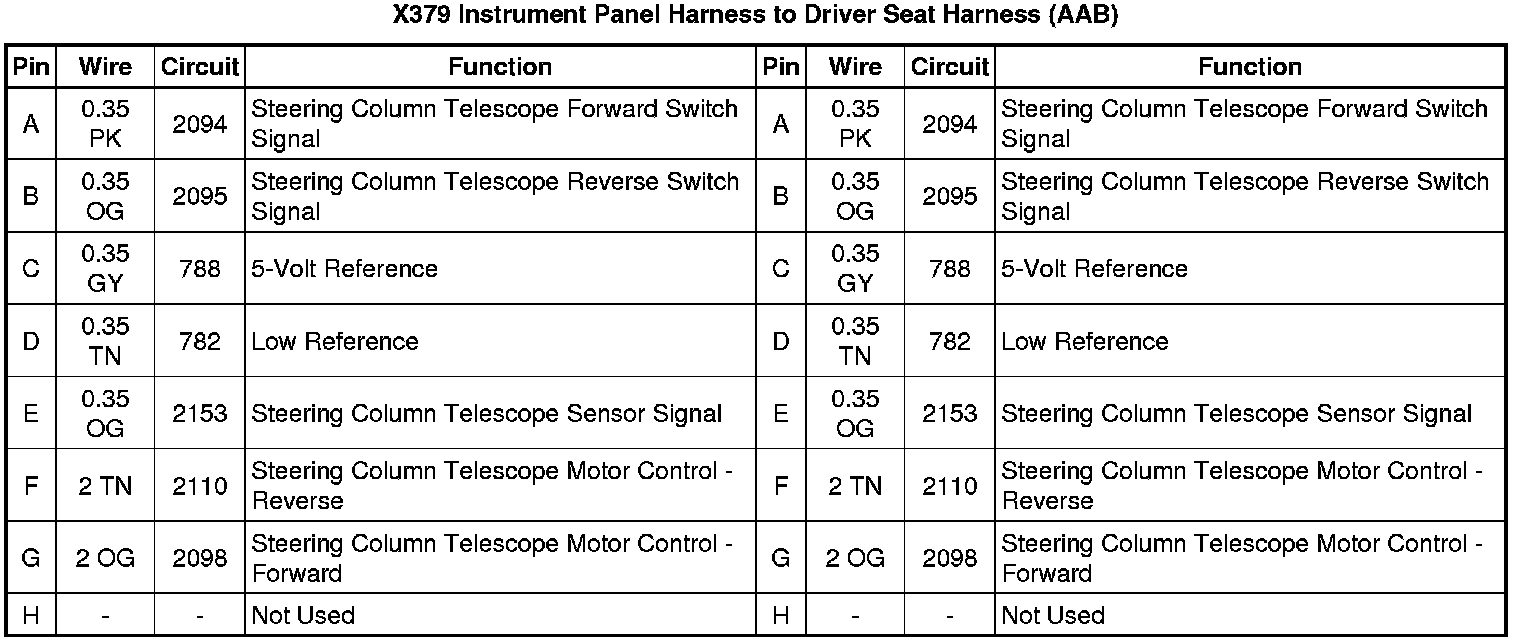

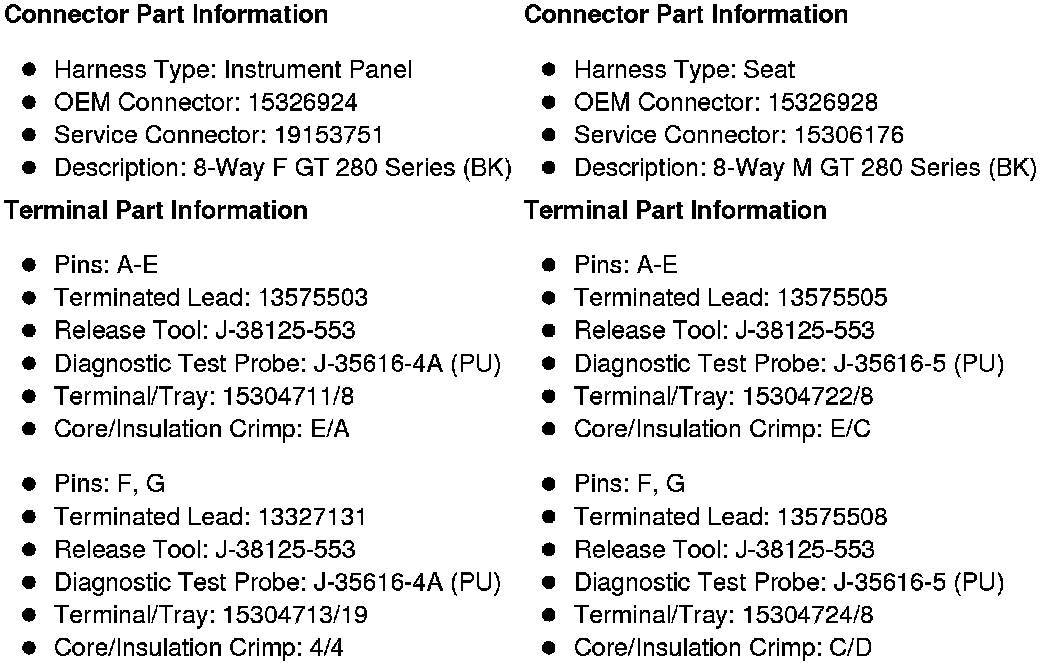

X379 Instrument Panel Harness to Driver Seat Harness (AAB)
