X444
X444

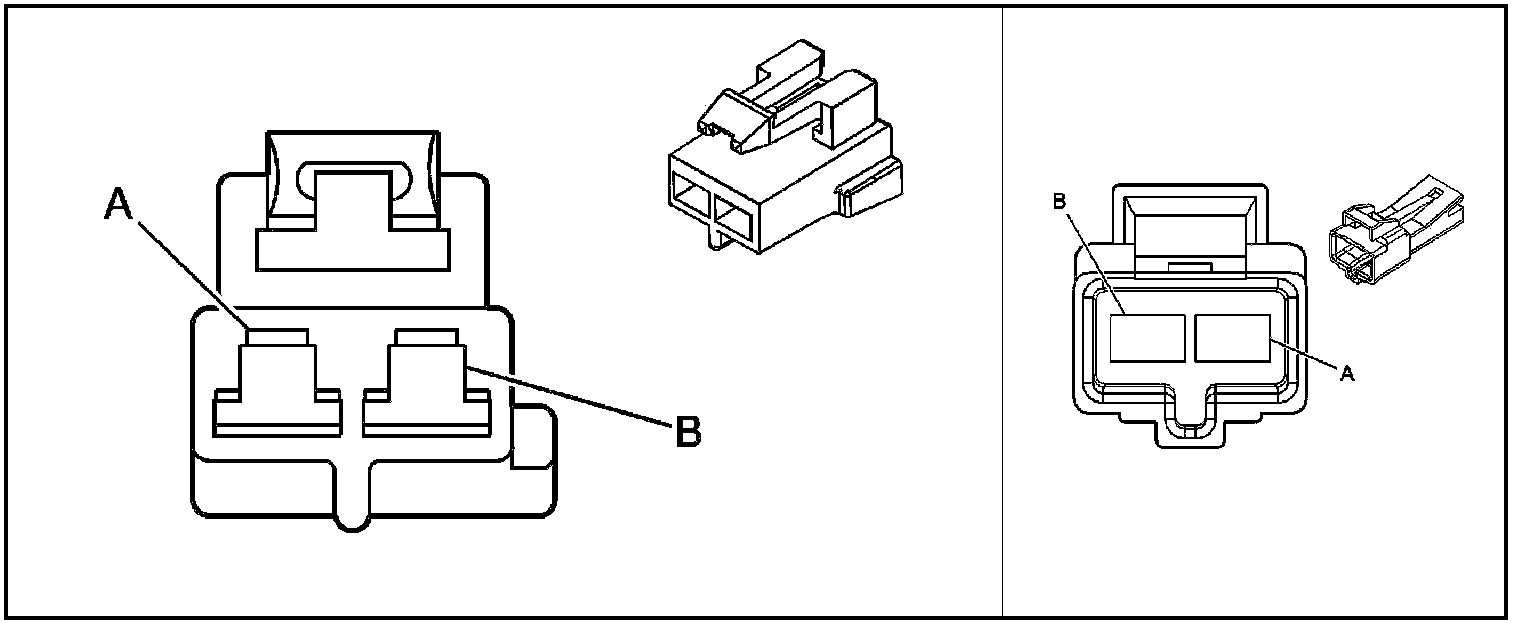

Inline Harness Connector End Views

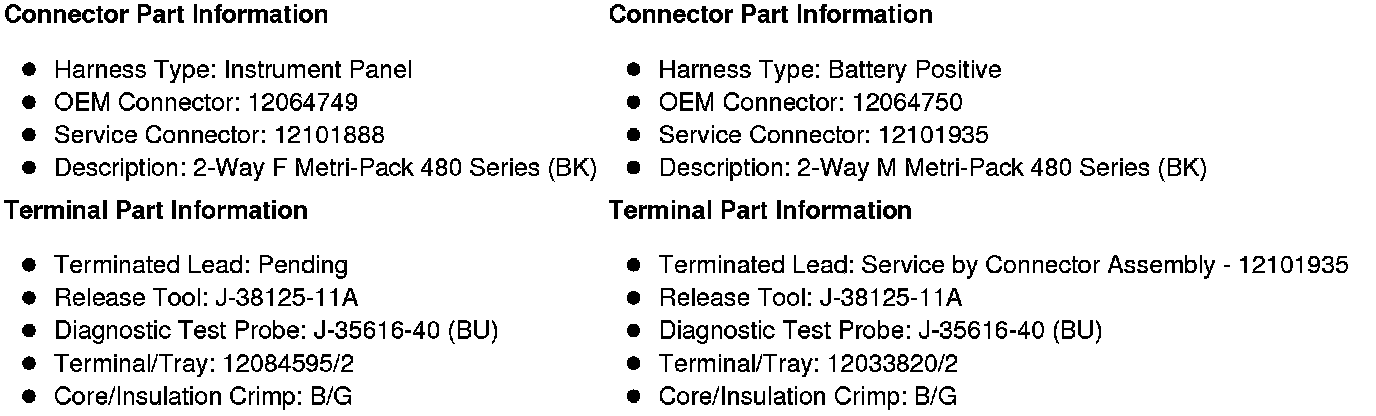

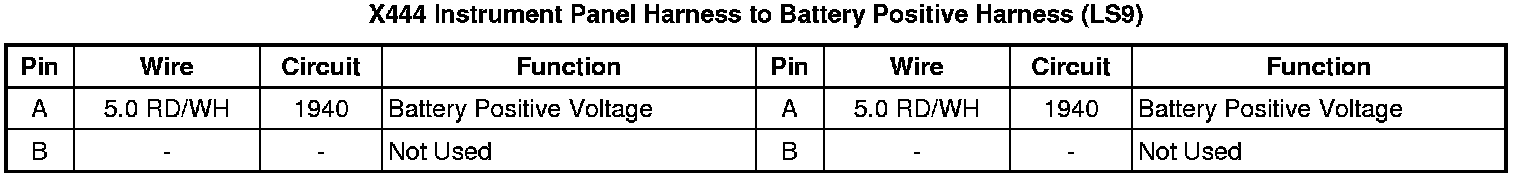

X444 Instrument Panel Harness to Battery Positive Harness (LS9)
