Engine Mount Replacement - Right Side

Engine Mount Replacement - Right Side

Removal Procedure





1. Remove the front suspension crossmember. Refer to Front Suspension Crossmember Replacement (Without Z06) Front Suspension Crossmember Replacement (With Z06 or ZR1) .

2. Remove the engine mount-to-engine mount bracket nut.

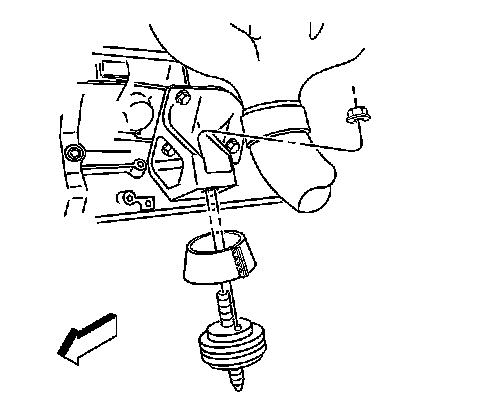

3. Remove the engine mount (left side shown, right side similar).

4. Remove the engine mount heat shield from the engine mount, if necessary.

Installation Procedure





1. Install the engine mount heat shield to the engine mount, if necessary.

Note:
When installing the engine mount be sure to have the locating dowel in the correct position.

2. Install the engine mount (left side shown, right side similar).

Caution:
Refer to Fastener Caution Fastener Caution.

3. Install the engine mount-to-engine mount bracket nut and tighten to 100 Nm (74 lb ft).

4. Install the front suspension crossmember. Refer to Front Suspension Crossmember Replacement (Without Z06) Front Suspension Crossmember Replacement (With Z06 or ZR1) .

5. Install the engine mount-to-front suspension crossmember nut and tighten to 58 Nm (43 lb ft).
